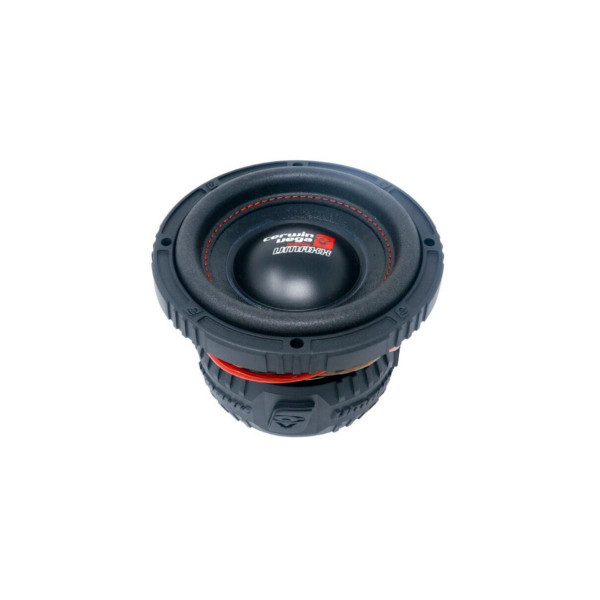

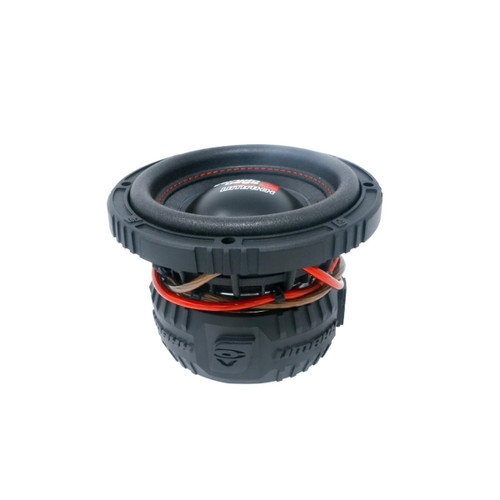

About: Cerwin Vega VMAX65 VMAXX 6.5” 200W RMS High-Performance Subwoofer

Cerwin Vega is renowned for producing high-quality subwoofers that are favored by car audio enthusiasts for their durability, power handling, and exceptional sound performance. Cerwin Vega subwoofers combine advanced engineering with high-quality materials to deliver powerful and reliable bass performance, making them a top choice for car audio enthusiasts looking to enhance their audio experience.  Cerwin Vega caters to audio enthusiasts who demand high performance and reliability. Their subwoofers are engineered to deliver superior sound quality, making them a favorite among those who are serious about their car audio systems.  2 Ohm or 4 Ohm Configuration: These subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance. Cerwin Vega subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass.

Features:

• Heavy Industrial Strength Aluminum Cast Frame
• Black Design Patterned Treated Semi-Pressed Pulped Cone
• Elevated Motor Structure Cooling Design
• Oversized Spider
• Black Coated Voice Coil for Higher Thermal Capability
• Oversized Polished Black Chrome Finished Terminals
• Shorting Ring for Lower Distortion
• Polished Bumped Backplate
• Klippel DA Optimized Motor and Suspension Symmetry

Specifications:

• 6.5" VMAX Series Subwoofer
• Power Handling:
• Peak: 400 watts
• RMS: 200 watts
• 1.5" High Temperature Voice coil
• Sealed box volume: 0.4 cubic feet
• Ported box volume: 0.75 cubic feet

Thiele-Small Parameters:

• SPL: 83.5 (D2) | 83.0 dB (D4)
• Dc Resistance (Re) (2)[series]: 1Ω/4Ω (D2) | 2Ω/8Ω (D4)
• Mechanical Factor (Qms): 5.07 (D2) | 4.56 (D4)
• Electrical Factor (Qes): 0.44 (D2) | 0.56 (D4)
• Total Factor (Qts): 0.40 (D2) | 0.50 (D4)
• Free Air Resonance (Fs): 51.3 (D2) | 60.7 Hz (D4)
• Equivalent Volume (Vas): 4.7L (D2) | 3.3L (D4)
• Mechanical Compliance (Cms): 0.16 mm/N (D2) | 0.11 mm/N (D4)
• Mechanical Mass (Mms): 58.7 g (D2) | 60 g (D4)
• Cone Area (Sd): 0.014 m2

• BL Factor (BL): 12.5 (D2) | 16.2 T*M (D4)
• Excursion (Xmax): 10 mm

Mounting Information:

• Total Diameter: 6.89" (175 mm)
• Mounting Diameter: 5.59" (142 mm)
• Screw Hole Diameter: 0.18" (4.5 mm)
• Mounting Depth: 4.25" (108 mm)
• Magnet Diameter: 5.53" (140.5 mm)
• Displacement: 0.037 cu.ft (1.04L)
