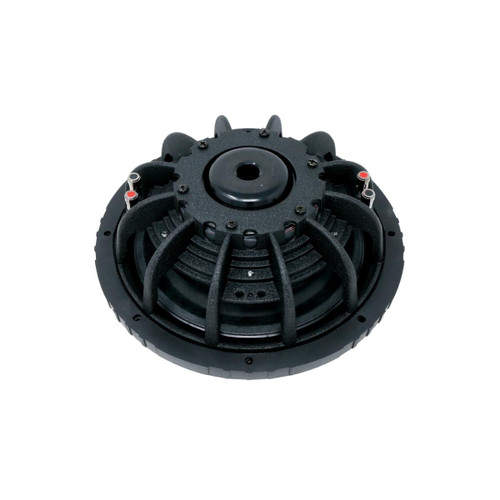

About: Cerwin Vega VMAXS10 VMAXS 10" 300W RMS Shallow Series Subwoofer

Cerwin Vega is renowned for producing high-quality subwoofers that are favored by car audio enthusiasts for their durability, power handling, and exceptional sound performance. Cerwin Vega subwoofers combine advanced engineering with high-quality materials to deliver powerful and reliable bass performance, making them a top choice for car audio enthusiasts looking to enhance their audio experience.  Cerwin Vega caters to audio enthusiasts who demand high performance and reliability. Their subwoofers are engineered to deliver superior sound quality, making them a favorite among those who are serious about their car audio systems.  2 Ohm or 4 Ohm Configuration: These subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance. Cerwin Vega subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass.

Features:

• Heavy Industrial Strength Aluminum Cast Frame
• Treated Semi-Pressed Pulped Cone
• Elevated Motor Structure For Increased Cooling
• Oversized Spider
• Black Coated 2 inch Voice Coil for HigherThermal Capability
• Available in Dual 2 Ohm or Dual 4 Ohm
• Oversized Polished Black Chrome Terminals
• Shorting Ring for lower Distortion
• Polished Bumped Backplate
• Klippel Optimized Motor/Suspension Symmetry

Specifications:

• 10" VMAX Series Subwoofer
• Power Handling:
• Peak: 600 watts
• RMS: 300 watts
• Black Coated 2.5" High Temperature Voice coil
• Single Stacked magnet motor structure
• Recommended sealed box volume: 1.0 cubic feet
• Recommended ported box volume: 1.25 cubic feet

Thiele-Small Parameters:

• SPL: 83.9 (D2) | 83.8 dB (D4)
• Dc Resistance (Re) (2)[series]: 1Ω/4Ω (D2) | 2Ω/8Ω (D4)
• Mechanical Factor (Qms): 7.04 (D2) | 6.27 (D4)
• Electrical Factor (Qes): 0.8 (D2) | 0.75 (D4)
• Total Factor (Qts): 0.72 (D2) | 0.67 (D4)
• Free Air Resonance (Fs): 37.9 (D2) | 37.5 Hz (D4)
• Equivalent Volume (Vas): 23.6L (D2) | 22.4L (D4)
• Mechanical Compliance (Cms): 0.13 mm/N (D2) | 0.12 mm/N (D4)
• Mechanical Mass (Mms): 138.1 g (D2) | 148.4 g (D4)
• Cone Area (Sd): 0.03631 m2

• BL Factor (BL): 12.2 (D2) | 17.3 T*M (D4)
• Excursion (Xmax): 7 mm

Mounting Information:

• Total Diameter: 11.06" (281 mm)
• Mounting Diameter: 9.47" (240.5 mm)
• Screw Hole Diameter: 0.18" (4.5 mm)
• Mounting Depth: 3.11" (79 mm)
• Magnet Diameter: 5.51" (140 mm)
• Displacement: 0.037 cu.ft (1.04L)

Recommended Enclosures:

• Sealed Enclosure
• Volume (Net Int.): 0.6 ft3
• Enclosure External Dimensions (W x H x D): 30" x 11" x 5.5" (762 x 279.4 x 140 mm)
• Ported Enclosure
• Volume (Net Int.): 1.0 ft3
• Enclosure External Dimensions (W x H x D): 32" x 14.5" x 6" (813 x 368 x 152 mm)
• Slot Port Internal Dimensions (Port Width x Port Height x Port Length): 1" x 13" x 21" (25.4 x 330 x 534 mm)
