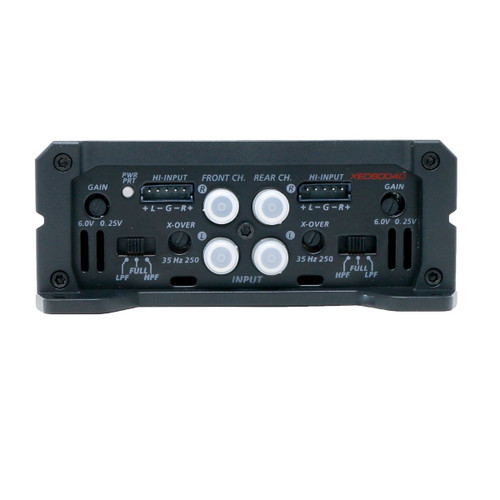

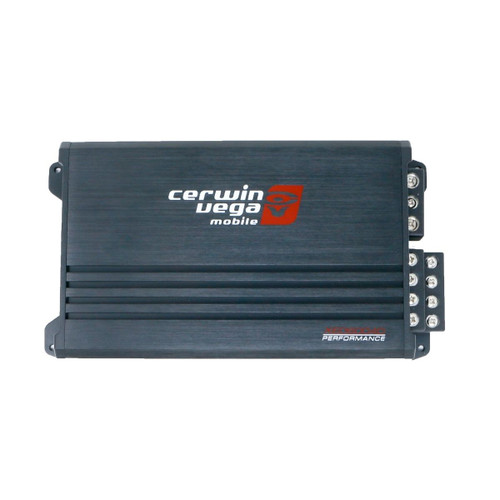

About: Cerwin Vega XED6004D XED Series 4-Channel Class-D Amplifier - 120W RMS x 4

Cerwin Vega XED (Xtreme Energy Design) series amplifiers are known for their advanced technology to deliver high performance.  The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability.  These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. XED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. XED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.

Specifications:

• XED Series Class D 2 ohms Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 80 watts x 4 channel
• 2 ohms: 120 watts x 4 channel
• Bridged: 220 watts x 2 channel @ 4 ohms
• Total power output: 480 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• Signal sensing remote turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Aluminum chassis
• Compact size with Ambient backlit logo
• Input sensitivity:
• Low level: 250mV - 6.0 volts
• High level: 1.3 - 20.0 volts
• Frequency Response: 10 - 30000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: -101.1 dB
• Variable high-pass filter: 35 - 250 Hz
• Variable low-pass filter: 35 - 250 Hz
• Fuse Rating: 50A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions (L x W x H): 7.1" x 4.7" x 1.8"
