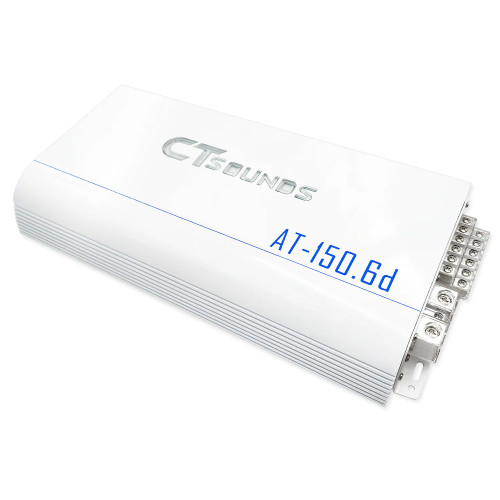

About: CT Sounds ATv2-150.6D 6-Channel Car Audio Amplifier - 250W RMS x 6

The CT Sounds ATv2-150.6d 6-Channel Car Audio Amplifier will deliver the power you need to destroy the competition in the SPL lanes. Built using an advanced PCB board featuring industry-leading capacitors, high-quality transformers, and cutting-edge inductors. Equipped with 4-way protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection; sleep easy at night knowing your 6ch car amplifier is protected.

The plexiglass backing, LED CT Sounds logo, and reinforced tiffany style RCAs gives this amplifier an unbeatable appearance. Furthermore, the reinforced heat sink design and MOSFET PWM switching technology ensure this amplifier runs cool for even the most demanding playlists.

Whether you’re looking to cause a tectonic disturbance or generate dynamic instability in the atmosphere, the CT Sounds AT-150.6d has the power to create the sonic explosion you crave. This 6-channel amplifier has tremendous audio coverage capabilities while assuring harmonic-less audio output waves reducing unnecessary electromagnetic inductions.

Product Highlights:

• RMS Power: 2Ω @ 13.2v250 Watts x 6-Channels
• RMS Power: 4Ω @ 13.2v150 Watts x 6-Channels
• RMS Power: 4Ω @ 13.2v500 Watts x 2-Channels Bridged
• Power & Ground Input Size:0 Gauge
• Speaker Input Size:8 Gauge

Features:

• Continuously-Variable Input Gain Control
• Remote Turn-On / Turn-Off Circuit
• MOSFET Pulse Width Modulated Power Supply
• Soft Turn-On Circuit
• High Voltage / Low Voltage Protection Circuit
• Thermal and Speaker Short Protection Circuit
• LED Power and Protection Indicators
• Nickle Plated Tiffany Style RCAs

Specifications:

• Amplifier Type: 6-Channel Amplifier
• Amplifier Circuitry: Class D
• Built-In Crossover: Yes; HPF, Full-Range, LPF
• Bridgeable: Yes
• RMS Power @ 2 Ohm: 250 Watts x 6-Channels (13.2v)
• RMS Power @ 4 Ohm: 150 Watts x 6-Channels (13.2v)
• RMS Power @ 4 Ohm (Bridged): 500 Watts x 2-Channels (13.2v)
• Recommended Fuse: 120A
• Power & Ground Input Size: 0 Gauge
• Speaker Input Size: 8 Gauge
• Gain Adjustment: 0.22v - 7v
• Low Pass Filter (LPF):
• CH1/2: 50 Hz - 1 kHz
• CH3/4: 50 Hz - 500 Hz
• CH5/6: 50 Hz - 500 Hz
• High Pass Filter (HPF):
• CH1/2: 50 Hz - 1 kHz
• CH3/4: 50 Hz - 500 Hz
• CH5/6: 50 Hz - 500 Hz
• Bass Boost:
• CH1/2: 0 dB - 6 dB
• CH1/2: 0 dB - 8 dB
• CH1/2: 0 dB - 12 dB
• Bass Boost Frequency: 50 Hz
• Frequency Response: 20 Hz - 20 kHz
• Signal-To-Noise Ratio (S/N): 90 dB
• Damping Factor:1 85
• Input Impedance: 20 Kohms
• Input Sensitivity: 220 mV
• Operating Voltage: 9v - 16v
• Minimum Impedance: 2 ohm
• Dimensions (L x W x H):15.94" x 7.59" x 2.28"
