Descriptions

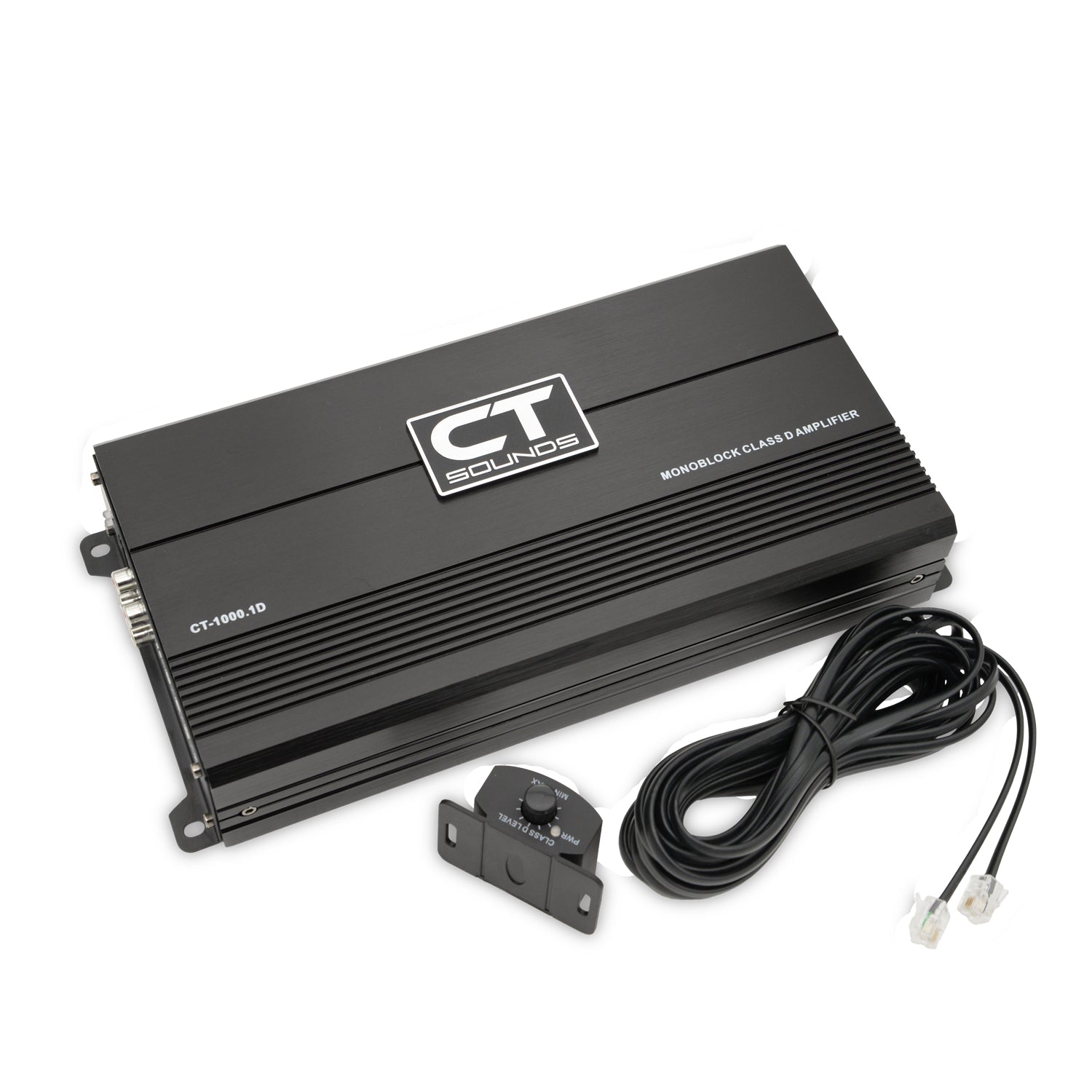

About: CT Sounds CT-1000.1D 1000W RMS Monoblock Car Audio Amplifier

CT Sounds engineered the CT-1000.1D Compact Class D Monoblock Car Amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. If you want a 1000 watt amplifier that absolutely pounds and delivers clean power to your subwoofers then look no further.

This 1-ohm stable monoblock amplifier features a Low Pass Filter (LPF), Subsonic Filter, and Bass Boost so you can get the exact sound you are looking for out of your amplifier. The MOSFET power supply and proprietary heat dissipation design will ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint make it easy to install in any car audio application.

You can sleep easy at night knowing your subwoofer amplifier is protected from damage due to the amplifier's uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.

Product Highlights:

• RMS Power: 1Ω @ 14.4v: 1000 Watts x 1-Channel
• RMS Power: 2Ω @ 14.4v: 650 Watts x 1-Channel
• RMS Power: 4Ω @ 14.4v: 350 Watts x 1-Channel
• Power & Ground Input Size: 4 Gauge
• Speaker Input Size: 8 Gauge

Features:

• Remote Bass Knob:
• Continuously-Variable Input Gain Control
• Remote Turn-On / Turn-Off Circuit

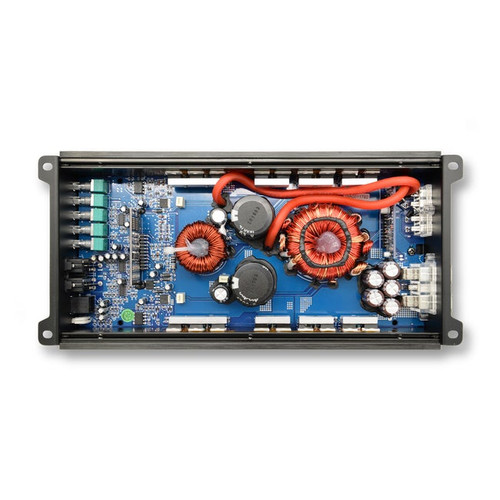

• MOSFET Pulse Width Modulated Power Supply
• Soft Turn-On Circuit
• High Voltage / Low Voltage Protection Circuit
• Thermal and Speaker Short Protection Circuit
• LED Power and Protection Indicators

Specifications:

• Amplifier Type: Monoblock Amplifier
• Amplifier Circuitry: Class D
• Strappable: Yes; Signal Output is Master
• RMS Power @ 1 Ohm: 1000 Watts x 1-Channel (14.4v)
• RMS Power @ 2 Ohm: 650 Watts x 1-Channel (14.4v)
• RMS Power @ 4 Ohm: 350 Watts x 1-Channel (14.4v)
• Recommended Fuse: 100A

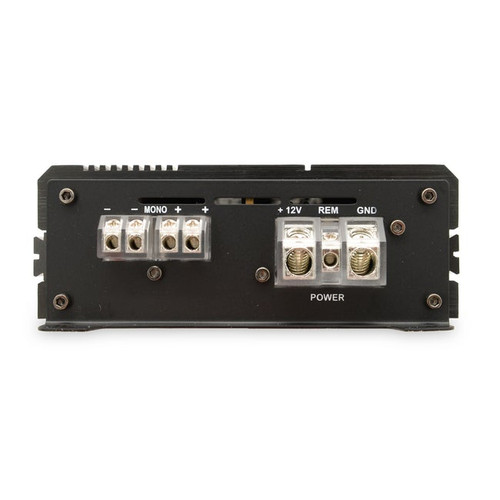

• Power & Ground Input Size: 4 Gauge
• Speaker Input Size: 8 Gauge
• Gain Adjustment: 0.2v - 10v
• Low Pass Filter (LPF): 40 Hz - 180 Hz
• Subsonic Filter: 0 Hz - 50 Hz
• Bass Boost: 0 dB - 12 dB
• Bass Boost Frequency: 30 Hz - 80 Hz
• Frequency Response: 20 Hz - 320 kHz
• Signal-To-Noise Ratio (S/N): 93 dB
• Damping Factor: 180
• Input Impedance: 22K ohms
• Input Sensitivity: 200 mV
• Operating Voltage: 8.2v - 16v
• Minimum Impedance: 1 ohm
• Dimensions (L x W x H): 11.69" x 5.63" x 2.19"

Installation Tips:

• Make sure to use the correct gauge wiring, for the CT-1000.1D we suggest using 4GA power wire, anything smaller is not recommended for this amplifier.
• Make sure to properly ground your amplifier. We recommending grounding to the frame of your car. Make sure to clean the surface well, sand down the surface removing any paint, dirt, rust, etc.. so the connection is as strong as possible. We recommend using a bolt (do not use screws). Do not ground the amplifier to a seat bolt or any existing bolt on your vehicle (this a really a bad idea).
• Tune your amplifier with a DD-1 or O-Scope, make sure it is not clipping. Clipping is the leading cause of subwoofer deaths.
• Do not mount your amplifier to your subwoofer box. Mount your amplifier away from the subwoofer enclosure in a secure location. Vibration is one of the leading causes of amplifiers deaths.

Note: If your amplifier is getting hot and/or shutting off it is likely because you did not follow the above. A poor ground, a loose connection, using too small of wire, or not using OFC wiring is the main reason this would happen.
