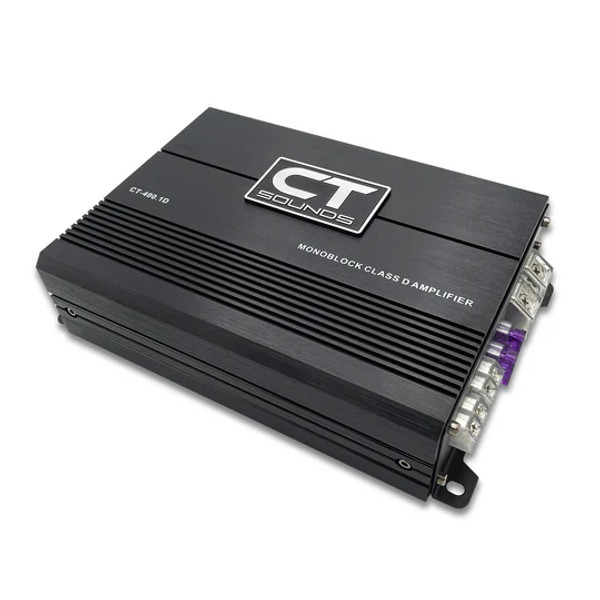

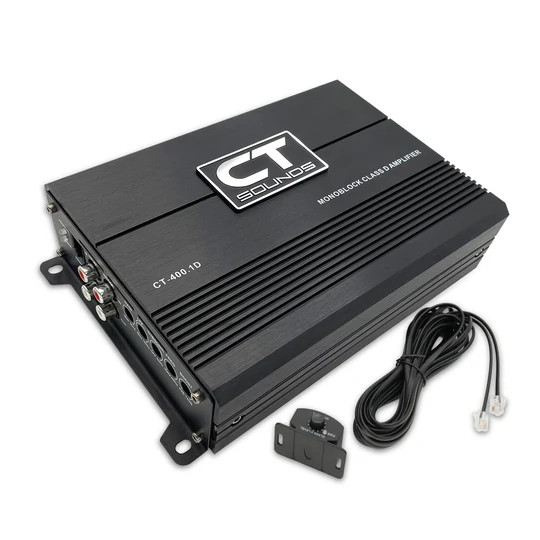

About: CT Sounds CT-400.1D 400W RMS Monoblock Car Audio Amplifier

CT Sounds engineered the CT-400.1D Compact Class D Monoblock Car Amplifier for anyone in need of a powerhouse amplifier that fits just about anywhere in your vehicle and won’t destroy your wallet. If you want a 400-watt amplifier that absolutely pounds and delivers clean power to your subwoofers then look no further.

This 1-ohm stable monoblock amplifier features a Low Pass Filter (LPF), Subsonic Filter, and Bass Boost so you can get the exact sound you are looking for out of your amplifier. The MOSFET power supply and proprietary heat dissipation design will ensure that the amplifier runs cool for even the most demanding playlists. Furthermore, the compact chassis and small footprint makes it easy to install in any car audio application.

You can sleep easy at night knowing your subwoofer amplifier is protected from damage due to the amplifier's uniquely engineered protection circuitry featuring high voltage, low voltage, over current, and high-temperature protection.

Product Highlights:

• RMS Power: 1Ω @ 14.4v: 400 Watts x 1-Channel
• RMS Power: 2Ω @ 14.4v: 300 Watts x 1-Channel
• RMS Power: 4Ω @ 14.4v: 150 Watts x 1-Channel
• Power & Ground Input Size: 4 Gauge
• Speaker Input Size: 12 Gauge

Features:

• Remote Bass Knob

• Continuously-Variable Input Gain Control
• Remote Turn-On / Turn-Off Circuit
• MOSFET Pulse Width Modulated Power Supply
• Soft Turn-On Circuit
• High Voltage / Low Voltage Protection Circuit
• Thermal and Speaker Short Protection Circuit
• LED Power and Protection Indicators

Specifications:

• Amplifier Type: Monoblock Amplifier

• Amplifier Circuitry: Class D
• Strappable: Yes; Signal Output is Master
• RMS Power @ 1 Ohm: 400 Watts x 1-Channel (14.4v)
• RMS Power @ 2 Ohm: 300 Watts x 1-Channel (14.4v)
• RMS Power @ 4 Ohm: 150 Watts x 1-Channel (14.4v)
• Recommended Fuse: 50A
• Power & Ground Input Size: 4 Gauge
• Speaker Input Size: 8 Gauge
• Gain Adjustment: 0.15v - 10v
• Low Pass Filter (LPF): 40 Hz - 180 Hz
• Subsonic Filter: 0 Hz - 50 Hz
• Bass Boost: 0 dB - 12 dB
• Bass Boost Frequency: 30 Hz - 80 Hz
• Frequency Response: 20 Hz - 320 kHz
• Signal-To-Noise Ratio (S/N): 93 dB
• Damping Factor: 170
• Input Impedance: 22K ohms
• Input Sensitivity: 150 mV
• Operating Voltage: 8.8v - 15.4v
• Minimum Impedance:1 ohm
• Dimensions (L x W x H): 8.38" x 5.63" x 2.19"
