About: CT Sounds MESO-6-5-3WAY-COM Meso 6.5" 250W RMS 3-Way Component Speaker Set

It’s no surprise the CT Sounds Meso components have been a best-selling product of CT Sounds for years. The Meso 6.5” 3-way component speakers are custom engineered to bring you the highest tonal accuracy by providing a well-balanced experience of rich tones from powerful mid-bass to snappy highs. If you want to play your music loud enough for the entire neighbourhood to hear, then look no further than the Meso 6.5” 3-Way Component Speaker Set.

The 6.5-inch component woofer features a fiberglass cone and nitrile butadiene rubber surround which allows the 6.5 component speaker to deliver top notch sound quality and mid-bass to your vehicle. The 3.5-inch midrange speaker features a fiberglass cone, nitrile butadiene rubber surround, and a neodymium motor assembly which will have your music heard from several blocks away. To finish the equation, the 1-inch silk dome tweeters are suspended in ferrofluid with a N38H motor assembly to provide an accurate reproduction of your favourite tracks. These 25mm silk-dome tweeters are housed in a brushed aluminum flush mount bracket to keep your ride looking sharp.

Product Highlights:

• RMS Power: 250 Watts (Pair)
• MAX Power: 500 Watts (Pair)
• Speaker Type: 6.5" 3-Way Component
• Voice Coil Configuration: Single 4-Ohm

Features:

• 6.5” 3-Way Car Component Speaker Set
• Power per speaker set: 125W RMS | 250W MAX
• Total system power: 250W RMS | 500W MAX
• Voice Coil Configuration: Single 4-Ohm
• 1.4” EISV Voice Coil
• Fiberglass Cone
• Nitrile Butadiene Rubber Surround
• Aluminum Basket
• 25mm Silk-Dome Tweeter

6.5" Woofer Specifications:

• Voice Coil Size: 1.4"
• Sweep Voltage: 11 V
• Output SPL (@1w/1m): 89 dB
• X-Over Point: 2.8 kHz
• Resonant Frequency: 65 Hz
• Frequency Response: 50 Hz - 4.5 kHz
• Magnet Weight: 21 Oz
• Magnet Type:Ferrite

3" Mid-Range Woofer Specifications:

• Power per Speaker: 30W (RMS) | 60W (MAX)
• Total System Power: 60W (RMS) | 120W (MAX)
• Output SPL (@1w/1m): 88 dB
• X-Over Point: 2.5 kHz
• Resonant Frequency: 65 Hz
• Frequency Response: 300 Hz ~ 1500 Hz
• Magnet Weight: 1.9 Oz
• Magnet Type: Neo

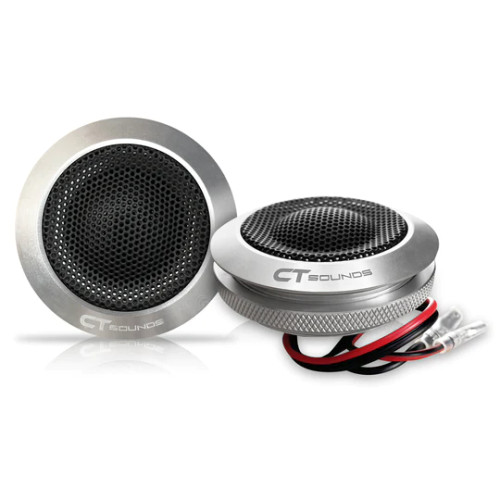

Tweeter Specifications:

• Sweep Voltage: 2.8 V
• Output SPL (@1w/1m): 90 dB
• Frequency Response: 1500 Hz ~ 20 kHz
• Tweeter Size: 25mm
• Tweeter Type: Silk-dome
• Magnet Type: Neo

 Crossover Specifications:

• Crossover Circuit: 5.6 μF capacitor / 100 V
• Filter for Woofer: 12 dB
• Filter for Mid-range: 18 dB
• Filter for Tweeter: 12 dB

 6.5” Woofer Mounting Specifications:

• Overall Diameter: 6.75"
• Cutout Diameter: 5.70"
• Magnet Diameter: 4.17"
• Magnet Height: 1.22"
• Mounting Depth: 2.87"
• Overall Height: 3.10"

 3” Mid-range Woofer Mounting Specifications:

• Overall Diameter: 3.56"
• Cutout Diameter: 2.87"
• Magnet Diameter: 2.03"
• Mounting Depth: 1.62"

Tweeter Mounting Specifications:

•  Overall Diameter: 2.12"
• Cutout Diameter: 1.75"
• Mounting Depth: 0.75"

 What's in the Box:

• 2 x 6.5” Midrange Woofers
• 2 x 3.5” Neo Midrange Woofers
• 2 x 25mm Silk-Dome Tweeters
• 2 x 18 dB Passive Crossover Networks
• Screws and Mounting Brackets
• Premium Wire For Easy Installation
• Speaker Grilles for 6.5” and 3.5” Midrange Woofers
