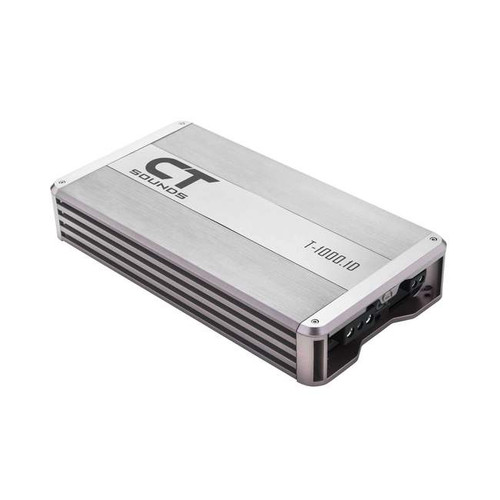

About: CT Sounds T-1000.1D 1000W RMS Monoblock Car Audio Amplifier

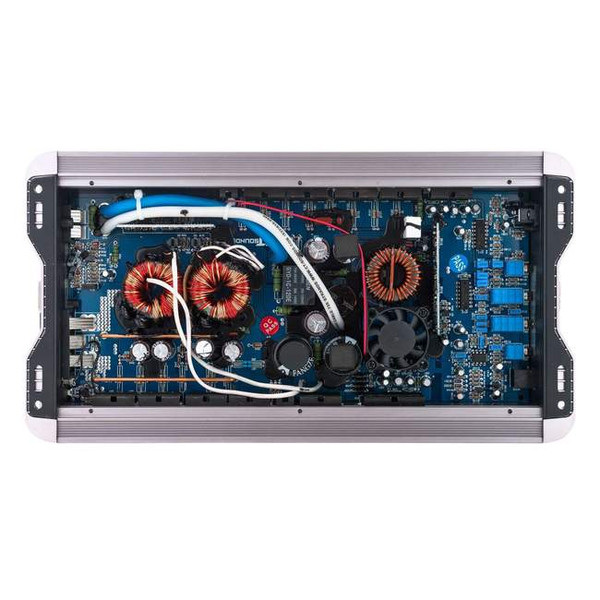

The CT Sounds T-1000.1D is a pure Class D car monoblock amplifier where the audio amplification is solely controlled by electronic amplifying switches inside; making the gain much more effective and enthusiastic. Equipped with a MOSFET Pulse Width power supply and Korean capacitors which provides the amplifier with the ability to store more capacity and cover the capacity difference in applications where the amplifier draws more current than is available from the electrical system. The inferior cooling design features a steel chassis, extra silicon, and more insulation between the heat seal and the PCB board.

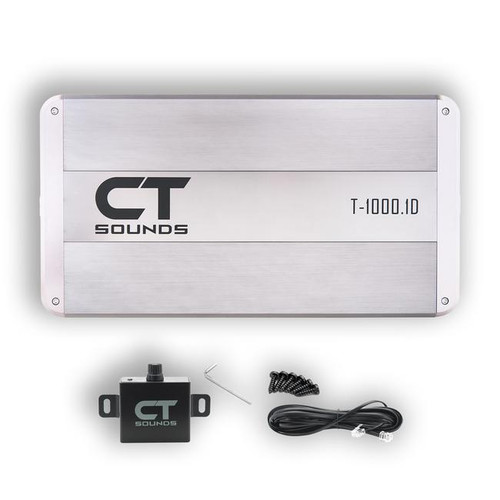

The newest T-1000.1D model features a larger MOSFET than its prior edition. Furthermore, we have added more holes on the side panel for better heat dissipation. Lastly, the amplifier is equipped with built-in 4-way circuitry protection protecting against high voltage, low voltage, over current, and high-temperature; sleep easy at night knowing your amplifier is protected. Included with the amplifier is a remote control knob, allowing you to turn up or turn down the bass while driving.

Product Highlights:

• RMS Power: 1Ω @ 14.4v: 1000 Watts x 1-Channel
• RMS Power: 2Ω @ 14.4v: 700 Watts x 1-Channel
• RMS Power: 4Ω @ 14.4v: 400 Watts x 1-Channel
• Power & Ground Input Size: 4 Gauge
• Speaker Input Size: 8 Gauge

Features:

• MOSFET PWM (Pulse Width Modulated) power supply
• Soft turn on circuitry
• 1 ohm stable mono operation
• Variable input gain control, subsonic filter & low pass crossover
• Thermal, DC offset, overload and speaker short protection inbuilt
• Nickel plated RCAs, thus low resistance inputs to the amp
• LED power and protection indicators
• It comes with remote knob, allowing you to control gains
• This is a purely Class-D amplifier where the audio amplification is solely controlled by electronic amplifying switches inside; making the gain much more effective and enthusiastic

Specifications:

• No of channel: 1
• Frequency response: 10Hz ~ 250Hz
• Gain adjustment: 0.2v ~ 5v
• Subsonic adjustment: 15Hz ~ 50Hz
• Bass boost: 0dB ~ +12dB
• Signal to noise ratio: 100dB
• Damping factor: 180
• Minimum impedance: 1Ω (ohm)
• Low Pass filter: 50Hz ~ 250Hz
• Bass level remote control (16.4ft): Yes
• Operating voltage (-ve ground): DC 12V
• Wire inputs: 4GA
• Bass knob: Remote gain control, power indicator
• Dimensions (W x H x L): 181 x 55 x 340 mm
