Descriptions

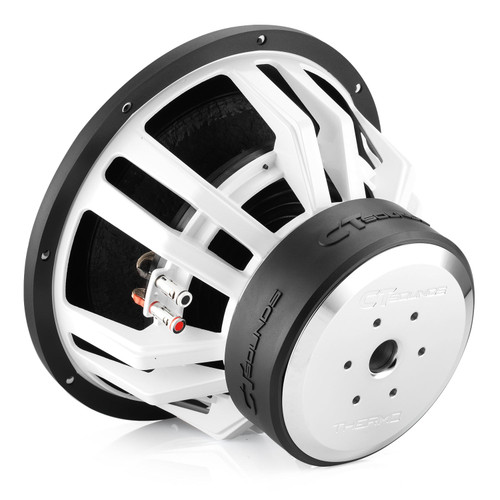

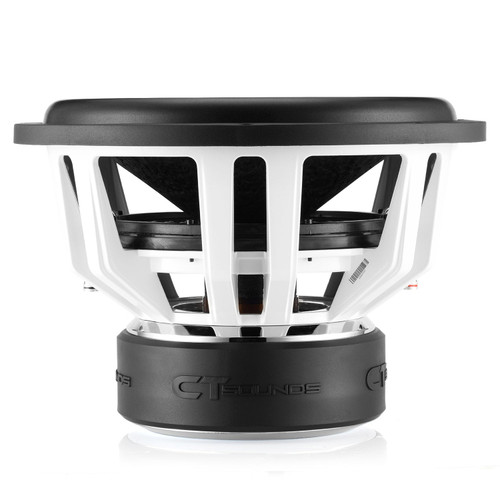

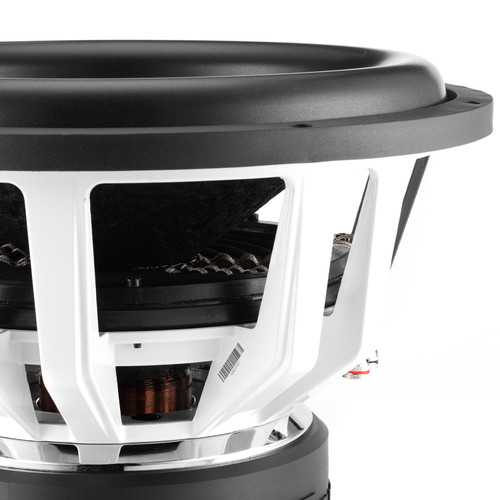

About: CT Sounds THERMO-15 15" 1500W RMS SPL Car Subwoofer

CT Sounds engineered the Thermo 15” Car Subwoofer to meet the demands of the SPL crowd looking for unparalleled loudness. While the Thermo 15” shares a 1500-watt RMS power rating with the popular Meso 15”, it stands out by delivering exceptional peak loudness at targeted frequencies (SPL). In contrast, the Meso 15” is known for its impeccable bandwidth - you can play very low, very high, and everywhere in between, making it ideal for individuals seeking consistent loudness across all frequencies (SQL).

Observing many customers running the Meso 15” outside our recommended box specifications (2.0 ft3) in pursuit of high SPL peaks, we recognized a crucial issue: as the box size increases, the SPL range narrows, potentially causing the subwoofer to unload. This realization spurred the development of the Thermo 15”, featuring an oversized motor assembly and a 10-inch quad-layered spider suspension, ensuring stability when chasing those SPL peaks. Moreover, the subwoofer features a mega foam surround seamlessly integrated with the 6% carbon fiber reinforced cone.

While the Meso 15” excels in delivering consistent loudness across all frequencies, the Thermo 15” focuses on achieving exceptional SPL peaks. Although the Thermo 15” sacrifices some bandwidth compared to the Meso 15”, it offers unmatched capability in reaching those peak loudness levels. If you're in pursuit of 150+ dB and aiming to make a bold statement with your sound system, the Thermo 15” stands as your ultimate choice.

Product Highlights:

• RMS Power: 1500 Watts
• MAX Power: 3000 Watts
• Voice Coil Configuration: Dual 2 Ohm (D2) or Dual 4 Ohm (D4)
• Push Terminal Size: 4 Gauge

Specifications:

• Product Type: Car Subwoofer
• Subwoofer Size: 15"
• Voice Coil Configuration: Dual 2 Ohm (D2) or Dual 4 Ohm (D4)
• RMS Power: 1500 Watts
• MAX Power: 3000 Watts
• Voice Coil Type: 3 Inch - 4 Layer High-Temperature Copper Voice Coil
• Magnet Type: Triple Stacked Ferrite Magnet
• Bottom Plate Type: Signature Chrome Low Carbon Iron Bottom Plate
• Surround Type: Dual White Stitched Competition Mega Foam Surround
• Cone Type: Non-Pressed Composite Paper with 6% Carbon Fiber Reinforcement
• Tinsel Lead Type: Dual Braided Flat Copper Tinsel Leads
• Terminal Type: 4 Gauge Push Terminals
• Basket Type: Cast Aluminum
• Spider Material: 10" Quad-Layer Poly-Cotton Spider Suspension

Subwoofer Measurements:

• Mounting depth: 9.41"
• Cutout diameter: 13.98"
• Overall diameter: 15.59"

Box Specifications:

• Flat Response Curve (SQ):
• Sealed: N/A
• Ported: 2.5 ft³
• Tuning Frequency: 28 Hz
• Port Area: 40 in²
• Boomer Response Curve (SPL):
• Sealed: N/A
• Ported: 5 ft³
• Tuning Frequency: 28 Hz
• Port Area: 80 in²

Note:

• Flat response curve (SQ) is geared towards people looking for responsiveness. This style box is loud on all frequencies, generates little impedance loss, and can utilize an amplifier rated at the same RMS as the subwoofer.
• Boomer response curve (SPL) is geared towards people looking for maximum loudness. This style box will be louder than the flat response curve at some frequencies, has a high impedance rise, and can utilize an amplifier rated at a slightly higher RMS than the subwoofer.
• Enclosure recommendations do not account for subwoofer, bracing, and port displacement.
