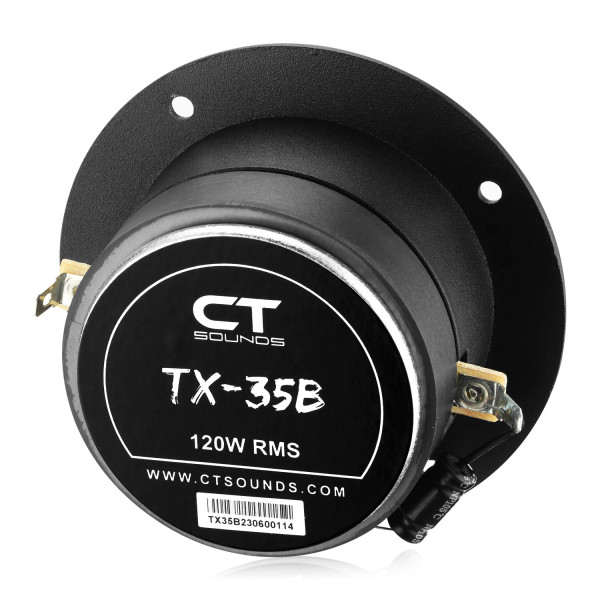

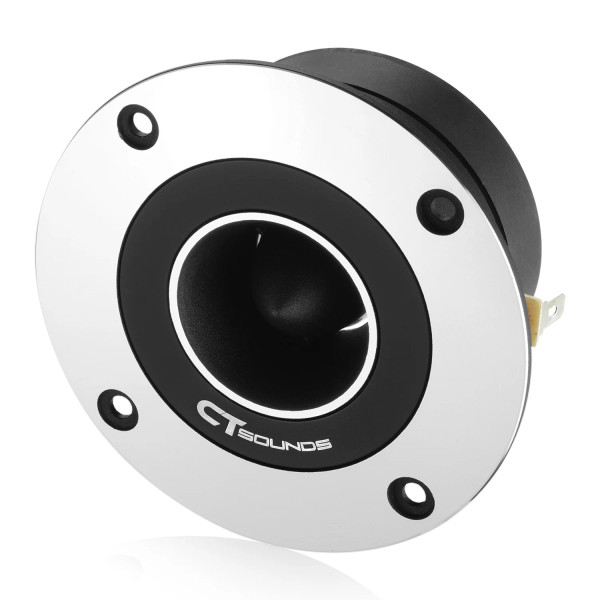

About: CT Sounds TX-35B 3.5” 240W RMS Titanium Super Tweeters (Pair)

Introducing the CT Sounds TX-35B - the pinnacle of high-frequency audio reproduction. Crafted with precision and innovation, these super tweeters feature a professional-grade electrical system engineered for exceptional clarity and detail, thanks to the ferrite motor and round copper voice coil.

Equipped with a titanium diaphragm and custom-engineered bullet phase plug, these super tweeters deliver robustness and longevity, ensuring consistent performance in demanding environments. Whether cruising down the highway or enjoying a ride in town, your sound will be heard from a long distance.

Installation is a breeze thanks to the built-in capacitors safeguarding your tweeters against low-end frequencies, preserving their sonic integrity. Additionally, we include our recommended mounting screws making installation even easier.

Product Highlights:

• RMS Power: 240 Watts (Pair)
• MAX Power: 480 Watts (Pair)
• Impedance: Single 4-Ohm
• Recommended High Pass Crossover: 3.75 kHz

Features:

• Tweeter Size: 3.5"
• Tweeter Type: Super Tweeter
• Sold As Pair: Yes
• Capacitor Included: Yes
• Terminal Type: Spade Terminal
• Impedance Per Tweeter: Single 4-Ohm
• Minimum Impedance Per Tweeter: 4-Ohm @ 3.5 kHz
• Power Per Tweeter: 120W RMS | 240W MAX
• Total System Power: 240W RMS | 480W MAX

Specifications:

• Voice Coil Size: 1"
• Voice Coil Winding Material: Copper
• Voice Coil Former Material: KSV
• Diaphragm Material: Titanium
• Magnet Type: Ferrite
• Throat Diameter: 1.52"
• Output SPL (@1w/1m): 103 dB
• Frequency Response (@SPL -10dB): 2 kHz - 20 kHz
• Sweep Voltage: 3V
• Crossover Circuit: 3.3 μF capacitor / 100 V
• Crossover Filter: 12 dB / octave
• Recommended High Pass Crossover: 3.75 kHz

Mounting Info:

• Overall Diameter: 3.90"
• Overall Height: 1.89"
• Cut-out Diameter: 2.80"
• Cut-out Diameter (incl. terminal slots): 3.35"
• Mounting Depth: 1.69"
• Flush Mount Lip Height: 0.20"
• Flush Mount Lip Width: 3.90"
