About: DB Drive G7 12.2 G7 Competition 12" 4000W RMS Car Subwoofer - Dual 2 Ohm

Get ready to feel the power and precision of the G7 12.2: 12in Woofer With 2 Ohm DVC, the latest marvel from G7's renowned G7 SUBWOOFERS series! This beast of a subwoofer is designed for those who crave competition-grade audio performance. With a staggering max power of 8000 Watts and a nominal power of 4000 Watts, this subwoofer is engineered to deliver earth-shattering bass that will leave you and your audience in awe. The high excursion foam surround and true carbon fiber dust cap ensure unparalleled durability and sound clarity. Encased in a custom die-cast aluminum basket and featuring triple layer progressive dampeners, this subwoofer is built to withstand the most intense audio sessions. The 3-inch-high temperature 4-layer voice coil and dual 2Ω voice coil impedance guarantee superior performance and reliability. Plus, with large gauge push speaker terminals and 8 gauge terminals, installation is a breeze. The triple stacked Y35 ferrite oxide magnet and custom rubber protective magnet band ensure that your subwoofer remains protected and performs at its peak. Elevate your audio game with the G7 12.2 and experience subwoofer performance like never before!

Features:

• High excursion foam surround
• True Carbon fiber dust cap
• Custom Die cast Aluminum Basket
• Triple Layer Progressive dampeners
• Large Gauge push speaker terminals
• 3-inch-high temperature 4-layer voice coil
• Custom Rubber protective magnet band
• Triple stacked Y35 ferrite oxide magnet

Thiele-Small Parameters:

• Resonant Frequency (Fs): 30.346Hz
• D.C. Voice Coil Resistance (Re): 2.2Ω
• Mechanical Quality Factor (Qms): 2.269
• Electrical Quality Factor (Qes): 0.613
• Total Quality Factor (Qts): 0.482
• Equivalent Air Volume to Cms (Vas): 22.479 L
• Mass of Diaphragm/Coil (Mms): 386.199 g
• Force Factor (Bl): 19.610
• Sound Pressure Level (SPL): 82 dB

Specifications:

• Structure: 12" (30.48cm) Woofer
• Dynamic Power Handling: 8000 Watts
• Nominal Power Handling: 4000 Watts
• Impedance: Dual 2 Ω Voice Coil

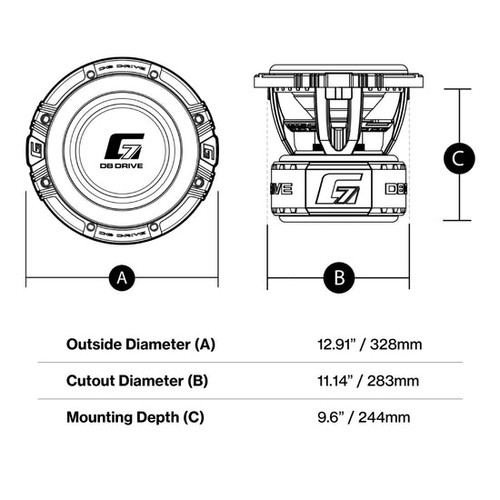

• Overall Diameter: 12.91" (328 mm)
• Mounting Depth: 9.6" (244 mm)
• Cutout Diameter: 11.14" (283 mm)
