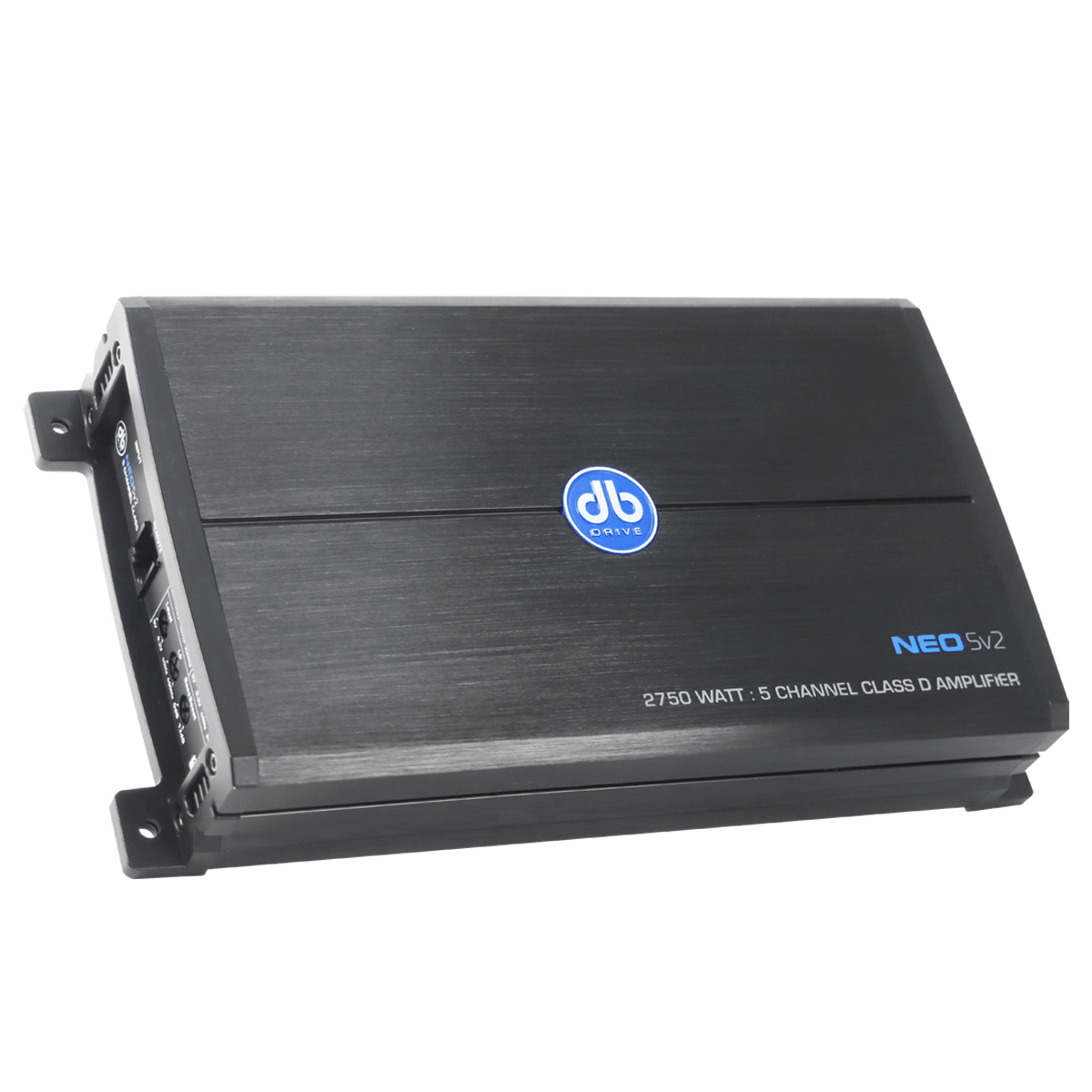

DB Drive NEO5V2 NEO Series 5-Channel Marine Amplifier - 125W RMS x 4 + 500W RMS x 1

$729.95
$804.95
9% Off
SKU: NEO5V2
Condition: New
Availability: Special Order - Usually Ships in 4-8 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: DB Drive NEO5V2 NEO Series 5-Channel Marine Amplifier - 125W RMS x 4 + 500W RMS x 1

Introducing the NEO5V2: Mini Class D Full Range 5 Channel Amplifier from DB Drive! Get ready to experience power like never before. With its 2Ω stereo load capability on Stereo Channels and 2Ω mono load capability on the 5th Mono Channel, this amplifier is a force to be reckoned with. The amphibious grade conformal coating on the PCB ensures durability and protection against the elements, making it perfect for any adventure.

Equipped with audiophile-grade RCA connectors and double-sided PCB, the NEO5V2 delivers crisp, clear sound quality. With a rated power of 4x250 Watts at 2Ω and 1x500 Watts at 2Ω/5Ch, this amplifier packs a punch. Plus, the included remote bass control puts you in control of your audio experience. Upgrade your sound system today with the powerful and versatile NEO5V2 from DB Drive.

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

Features:

  • 5 channel Full Range Class D Technology
  • 2 ohm Stereo Load capability on Stereo Channels
  • 2 ohm Mono load capability on 5th Mono channel
  • Amphibious grade conformal coating on PCB
  • Audiophile Grade RCA Connecters
  • Variable 12dB High/Low-pass crossover filters
  • Bridgeable outputs @ 4ohm load
  • Double Sided circuit tablet
  • Bass Remote included
  • Compatible with any 4/2ohm loudspeaker

Specifications:

  • Rated Power @ 14.4 Volts:
    • 4 x 125 Watts @ 4Ω
    • 4 x 250 Watts @ 2Ω
    • 2 x 250 Watts @ 4Ω Bridged
    • 1 x 500 Watts @ 2Ω 5th Ch.
  • THD (100Hz @ 1Ω): 0.04%
  • Bandwidth (-3 dB): 18Hz ~ 22KHz
  • Damping Factor (1KHz @ 4Ω): 100
  • S/N ratio (as weighted @ 1 Volt): 99db
  • Input Sensitivity: 0.20V ~ 9.0V RMS
  • Minimum Load Impedance: 2Ω
  • Channel 1-2 filter Range: 40Hz ~ 300Hz
  • Channel 3-4 filter Range: 40Hz ~ 300Hz
  • Channel 5 filter Range: 40Hz ~ 400Hz
  • Dimensions (L x W x H): 6.25" x 5.20" x 1.855" (159 x 132 x 47 mm)
