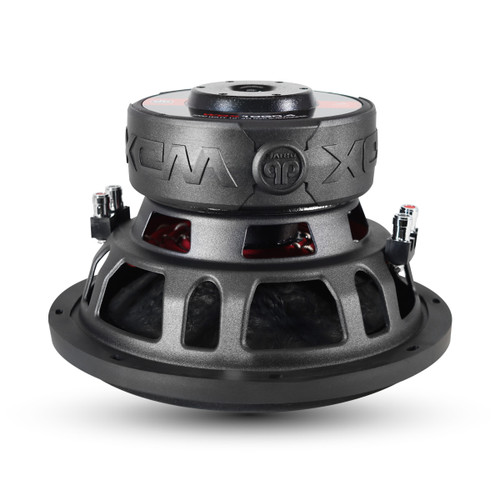

DB Drive WDX10G0 WDX G0 Series 10" 500W RMS Car Subwoofer

$329.95
SKU: WDX10G0
UPC: 811536037732
Condition: New
Availability: Special Order - Usually Ships in 4-8 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: DB Drive WDX10G0 WDX G0 Series 10" 500W RMS Car Subwoofer

Unleash the power of sound with the DB Drive WDX10G0 Subwoofer, the ultimate addition to your audio setup. Engineered with a high-temperature voice coil and reinforced paper cone, this subwoofer delivers unparalleled performance and durability. The double-stitched foam surround and dual poly-cotton dampeners ensure precise sound quality, while the stamped cast steel vented basket and rubber gasket trim ring provide robust support.

With a massive 1000 watts of max power and dual 2Ω voice coils or dual 4Ω voice coils, this subwoofer is designed to handle the most intense audio demands. The large gauge compression terminals and protective magnet cover add to its superior build. Whether you're a casual listener or an audiophile, the DB Drive WDX10G0 Subwoofer will elevate your sound experience to new heights. Feel every beat, every note, and every moment with the power of DB Drive.

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

  • 2.5″ High Temperature Voice coil
  • Reinforced paper cone
  • Dual poly-cotton dampeners
  • Stamped Cast basket
  • Rubber gasket trim ring
  • Large gauge compression terminals
  • Protective magnet cover

Specifications:

  • Structure 10″ (25.4cm) Woofer
  • Dynamic Power Handling 1000 Watts
  • Nominal Power Handling 500 Watts
  • Impedance Dual 4Ω Voice Coil

Thiele-Small Parameters:



  • Resonant Frequency (Fs) 38.074 Hz
  • D.C. Voice Coil Resistance (Re) 3.4 Ω X 2
  • Mechanical Quality Factor (Qms) 2.370
  • Electrical Quality Factor (Qes) 0.580
  • Total Quality Factor (Qts) 0.466
  • Equivalent Air Volume to Cms (Vas) 18.768 L
  • Mass of Diaphragm/Coil (Mms) 174.262 g
  • Force Factor (Bl) 11.051
  • Sound Pressure Level (SPL) 84.4 dB

Mounting Information:

  • Outside Diameter: 10.70″ (272 mm)
  • Cutout Diameter: 9.07″ (230.57 mm)
  • Mounting Depth: 5.84″ (148.50 mm)
