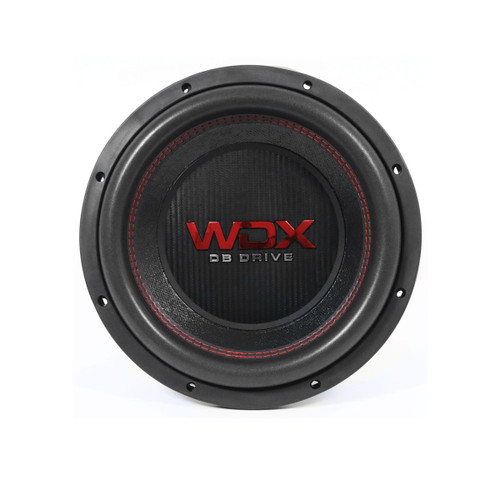

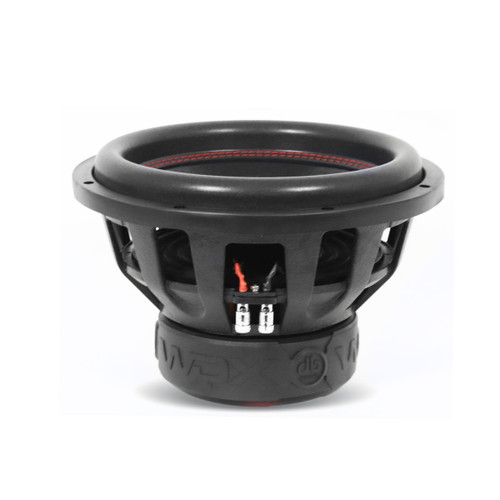

About: DB Drive WDX10G1.4 WDX G1 Series 10" 1000W RMS Car Subwoofer - Dual 4 Ohm

Elevate your audio experience with the DB Drive WDX10G1.4, a 10-inch subwoofer that delivers unparalleled performance and precision. Designed for those who crave deep, powerful bass, this subwoofer is packed with features that set it apart from the competition. With a high-temperature voice coil and a non-pressed paper cone, it ensures durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide enhanced stability and resilience, while the die-cast aluminum vented basket and rubber gasket trim ring offer robust protection and longevity. Boasting a 135 oz. magnet and large gauge compression terminals, this subwoofer is engineered for maximum power, handling up to 2000 watts with a nominal power of 1000 watts. Whether you're a casual listener or a true audiophile, the DB Drive WDX10G1.4 is your ticket to an immersive, high-fidelity audio experience that will make every beat come alive.

Features:

• 3″ BASV High Temperature Voice coil
• Non-Pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications:

• Structure: 10″ (25.4cm) Woofer
• Dynamic Power Handling: 2000 Watts
• Nominal Power Handling: 1000 Watts
• Impedance: Dual 4Ω Voice Coil

Thiele-Small Parameters:

• Resonant Frequency (Fs): 41.63Hz
• D.C. Voice Coil Resistance (Re): 3.2 x 3.2Ω
• Mechanical Quality Factor (Qms): 3.156
• Electrical Quality Factor (Qes): 0.582
• Total Quality Factor (Qts): 0.492
• Equivalent Air Volume to Cms (Vas): 9.79 L
• Mass of Diaphragm/Coil (Mms): 289.93 g
• Force Factor (Bl): 14.437
• Sound Pressure Level (SPL): 82.7 dB

Mounting Information:

• Outside Diameter: 10.86″ (276 mm)
• Cutout Diameter: 9.15″ (156.21 mm)
• Mounting Depth: 6.15″ (156.210 mm)
