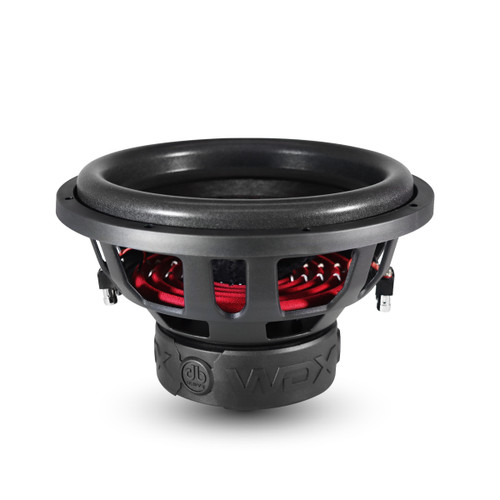

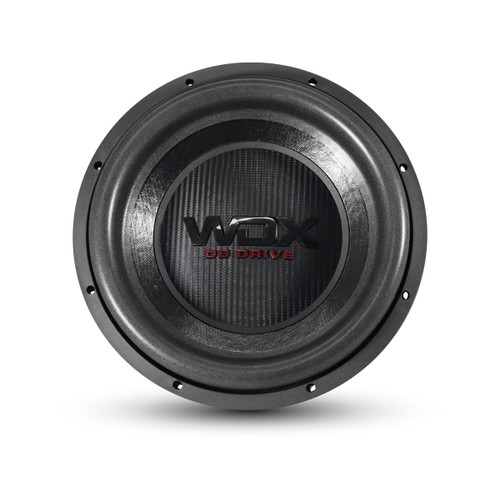

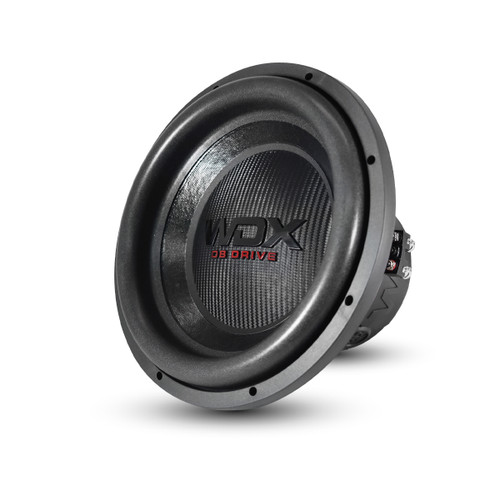

About: DB Drive WDX12G0.4 WDX G0 Series 12" 600W RMS Car Subwoofer - Dual 4 Ohm

Discover the ultimate sound experience with the DB Drive WDX12G0.4, a 12-inch stamped frame woofer designed to elevate your audio game. This powerhouse boasts a high temperature voice coil and a reinforced paper cone, ensuring durability and exceptional sound quality. The double stitched foam surround and dual poly-cotton dampeners provide stability and precision, while the stamped cast steel vented basket and rubber gasket trim ring offer robust construction.

With a maximum power of 1200 watts and a nominal power of 600 watts, this subwoofer delivers earth-shaking bass. The large gauge compression terminals and protective magnet cover add to its impressive features. Whether you're a car audio enthusiast or just love great sound, the WDX12G0.4 is engineered to exceed your expectations. Feel the power, embrace the beat, and transform your listening experience with DB Drive.

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

• 2.5″ High Temperature Voice coil
• Reinforced paper cone
• Dual poly-cotton dampeners
• Stamped Cast basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications:

• Structure: 12″ (30.4cm) Woofer
• Dynamic Power Handling: 1200 Watts
• Nominal Power Handling: 600 Watts
• Impedance: Dual 4Ω Voice Coil

Thiele-Small Parameters:

• Resonant Frequency (Fs): 34.798 Hz
• D.C. Voice Coil Resistance (Re): 3.4 Ω X 2
• Mechanical Quality Factor (Qms): 2.876
• Electrical Quality Factor (Qes): 0.673
• Total Quality Factor (Qts): 0.545
• Equivalent Air Volume to Cms (Vas): 34.645 m
• Mass of Diaphragm/Coil (Mms): 241.691 gr
• Force Factor (Bl): 11.556 N/A
• Sound Pressure Level (SPL): 85.2 dB

Mounting Information:

• Outside Diameter: 12.40″ (315 mm)
• Cutout Diameter: 10.85″ (275.79 mm)
• Mounting Depth: 6.51″ (165.50 mm)
