Descriptions

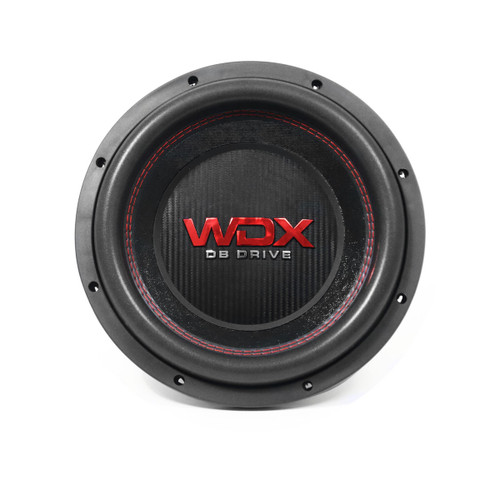

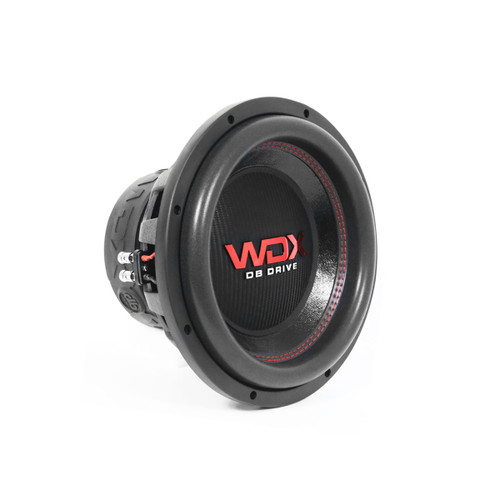

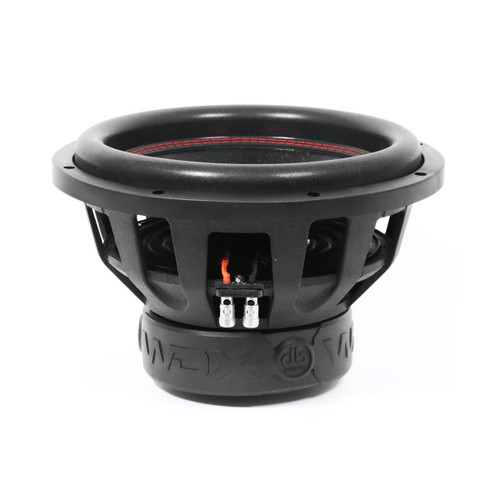

About: DB Drive WDX12G1.4 WDX G1 Series 12" 1000W RMS Car Subwoofer - Dual 4 Ohm

Unleash the ultimate audio experience with the DB Drive WDX12G1.4, a 12-inch subwoofer that redefines power and precision. Boasting a high temperature voice coil and a non-pressed paper cone, this subwoofer is engineered for durability and exceptional sound clarity. The double stitched foam surround and dual poly-cotton dampeners ensure that every beat hits with perfect accuracy. Encased in a die-cast aluminum vented basket with a rubber gasket trim ring, this subwoofer not only performs exceptionally but also looks sleek and modern. With large gauge compression terminals and a protective magnet cover, installation is a breeze and longevity is guaranteed. The DB Drive WDX12G1.4 operates at a dual 4Ω impedance, delivering a staggering 2000 watts of max power and 1000 watts of nominal power. Get ready to transform your audio system and feel the power of sound like never before with the DB Drive WDX12G1.4 subwoofer.

Features:

• 3″ BASV High Temperature Voice coil
• Non-Pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications:

• Structure: 12″ (30.48cm) Woofer
• Dynamic Power Handling: 2000 Watts
• Nominal Power Handling: 1000 Watts
• Impedance: Dual 4Ω Voice Coil

Thiele-Small Parameters:

• Resonant Frequency (fs): 40.93Hz
• D.C. Voice Coil Resistance (Re): 3.2 x 3.2Ω
• Mechanical Quality Factor (Qms): 3.885
• Electrical Quality Factor (Qes): 0.739
• Total Quality Factor (Qts): 0.621
• Equivalent Air Volume to Cms (Vas): 18.014 L
• Mass of Diaphragm/Coil (Mms): 335.972 g
• Force Factor (Bl): 13.679
• Sound Pressure Level (SPL): 84.1 dB

Mounting Information:

• Outside Diameter: 12.70″ (323.50 mm)
• Cutout Diameter: 11.10″ (281.18 mm)
• Mounting Depth: 6.85″ (173.80 mm)
