DB Drive WDX5-TW 1.5" 150W RMS Elliptical Die Cast Tweeter

$79.95
$89.95
11% Off
SKU: WDX5-TW
Condition: New
Availability: Special Order - Usually Ships in 2-3 Weeks
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: DB Drive WDX5-TW 1.5" 150W RMS Elliptical Die Cast Tweeter

DB DRIVE's WDX5-TW tweeter is engineered to deliver high output and exceptional high-frequency response, making it an ideal addition to any speaker system. The titanium diaphragm, paired with a ferrite oxide-powered motor, provides outstanding sensitivity levels and efficiency, all within a compact profile. The elliptical waveguide design ensures consistent, high-output off-axis response, enhancing overall sound dispersion and clarity. This tweeter is optimized for both high performance and versatility, ensuring it integrates seamlessly into any car audio setup.

Features:

  • 1" Pro Audio Tweeter
  • High output Aluminum dome
  • Wide Dispersion Elliptical Waveguide
  • 6 dB high pass filter included
  • Includes 1- Pair Tweeters

Specifications:

  • Tweeter Dynamic Power Handling: 300 Watts
  • Tweeter Nominal Power Handling: 150 Watts
  • Impedance: 4Ω Tweeter
  • Sensitivity: 107dB

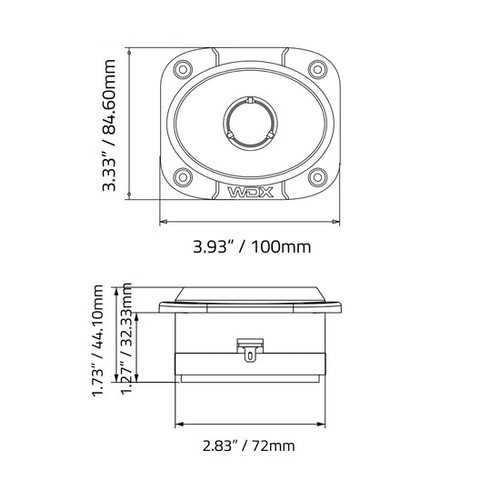

  • Tweeter Mounting Depth: 1.27" (32.33 mm)
  • Tweeter Cutout Diameter: 2.83" (72 mm)
