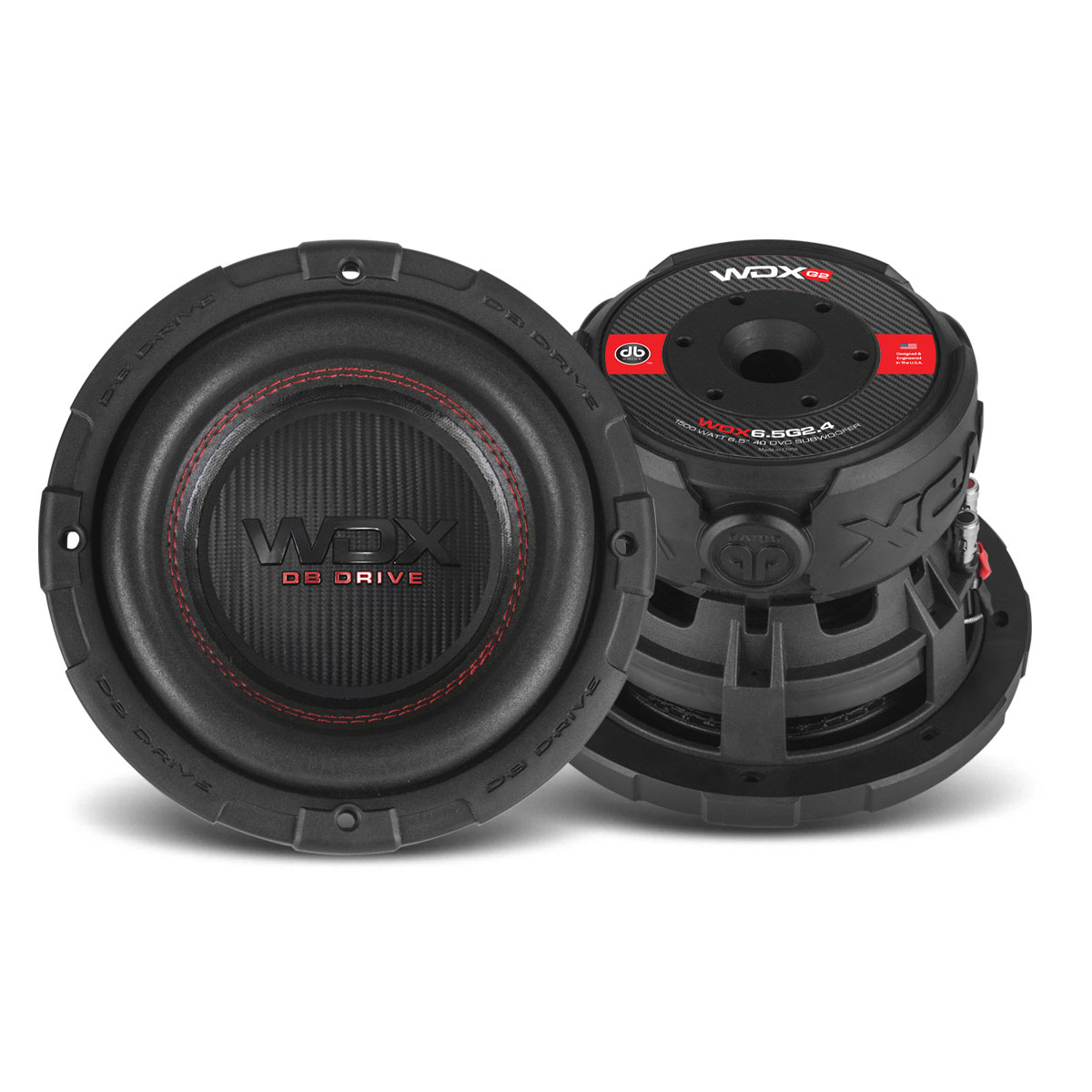

DB Drive WDX6.5G2 WDX G2 Competition Series 6.5" 750W RMS Subwoofer

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$269.95

SKU:: WDX6.5G2
UPC:: 811536035691
Condition:: New
Availability:: Special Order - Usually Ships in 4-8 Days
Shipping:: Calculated at Checkout

DB Drive WDX6.5G2 WDX G2 Competition Series 6.5" 750W RMS Subwoofer

$269.95

Description
Shipping & Returns

Description

About: DB Drive WDX6.5G2 WDX G2 Competition Series 6.5" 750W RMS Subwoofer

Features:

2″ Anodized aluminum high temperature voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals
Protective magnet cover

Specifications:

Structure: 6.5″ (16.5cm) Woofer
Dynamic Power Handling: 1500 Watts
Nominal Power Handling: 750 Watts
Impedance: Dual 2Ω / Dual 4Ω Voice Coil

Mounting Information:

Outside Diameter: 7.20″ (183mm)
Cutout Diameter: 5.98″ (152mm)
Mounting Depth: 5.18″ (131.5mm)

Thiele-Small Parameters	Dual 2 Ohm	Dual 4 Ohm
Resonant Frequency (Fs)	49.167 Hz	52.4 Hz
D.C. Voice Coil Resistance (Re)	2 x 2Ω	2 x 3.2Ω
Mechanical Quality Factor (Qms)	3.66	4.33
Electrical Quality Factor (Qes)	0.795	0.71
Total Quality Factor (Qts)	0.65	0.61
Equivalent Air Volume to Cms (Vas)	3.68 L	2.8 L
Mass of Diaphragm/Coil (Mms)	82.76 g	94.2 g
Force Factor (Bl)	11.34	16.7
Sound Pressure Level (SPL)	79.3 dB	79.4 dB
