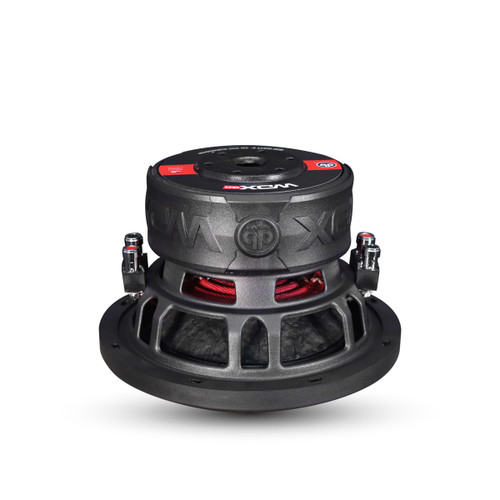

DB Drive WDX8G0 WDX G0 Series 8" 400W RMS Car Subwoofer

$249.95

$224.95

Description
Shipping & Returns

Description

About: DB Drive WDX8G0 WDX G0 Series 8" 400W RMS Car Subwoofer

Unleash the full potential of your audio system with the DB Drive WDX8G0 8in Stamped Frame Woofer. Designed for those who crave powerful, high-quality sound, this subwoofer features a high-temperature voice coil and a reinforced paper cone, ensuring durability and exceptional performance. With its dual 2Ω voice coil or dual 4Ω voice coil, you get maximum flexibility in wiring configurations. The 800-watt max power and 400-watt nominal power ratings mean it can handle even the most demanding audio tracks with ease.

The double-stitched foam surround and dual poly-cotton dampeners provide superior control and reduced distortion, while the large gauge compression terminals and protective magnet cover ensure longevity and reliability. Whether you're setting up a new system or upgrading an existing one, the DB Drive WDX8G0 is the perfect choice for delivering deep, rich bass that you can feel.

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

Features:

2″ BASV High Temperature Voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals
Protective magnet cover

Specifications:

Structure 8″ (20.3cm) Woofer
Dynamic Power Handling 800 Watts
Nominal Power Handling 400 Watts
Impedance Dual 2Ω / Dual 4Ω Voice Coil

Mounting Information:

Outside Diameter: 8.42″ (214 mm)
Cutout Diameter: 6.90″ (230.57 mm)
Mounting Depth: 4.62″ (117.50 mm)

Thiele-Small Parameters	Dual 2 Ohm	Dual 4 Ohm
Resonant Frequency (Fs)	42.074 Hz	41.702 Hz
D.C. Voice Coil Resistance (Re)	1.6Ω x 2	3.2Ω x 2
Mechanical Quality Factor (Qms)	2.651	2.230
Electrical Quality Factor (Qes)	0.481	0.447
Total Quality Factor (Qts)	0.407	0.372
Equivalent Air Volume to Cms (Vas)	9.554 m	8.417 m
Mass of Diaphragm/Coil (Mms)	94.9011 g	93.321 g
Force Factor (Bl)	6.851	9.745
Sound Pressure Level (SPL)	83.6 dB	84.3 dB
