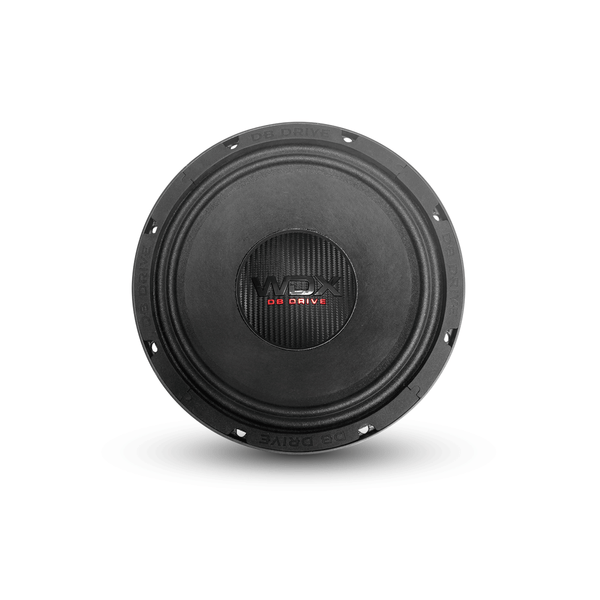

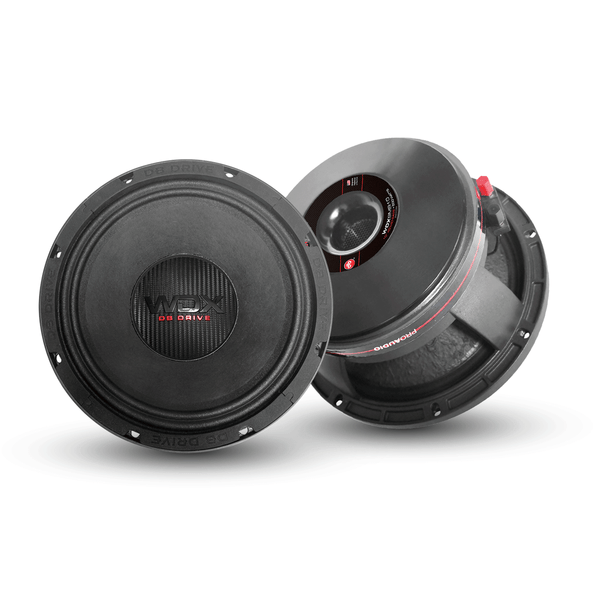

About: DB Drive WDX9MB10 WDX 8 Series 10" 300W RMS Midbass Speaker - 4 Ohm (Each)

Unleash the full potential of your audio experience with DB Drive's WDX9MB10 from the WDX 9 Series. This 10-inch PRO Audio Midbass speaker is engineered to perfection, delivering a symphony of power and clarity. With a CCAW Voice Coil Wire, KSV Coil, and a robust Ferrite Magnet, this midbass speaker ensures unparalleled sound quality and durability. The die-cast basket and paper cone material with cone edge cloth enhance the structural integrity and performance. Boasting an impressive max power of 500 Watts and nominal power of 300 Watts, along with a sensitivity of 106.1 @ 1W/1M, you'll hear every note with precision. The 4Ω impedance and 2.5-inch voice coil further elevate the audio fidelity. Elevate your sound system with DB Drive's WDX9MB10 and experience music like never before.

Features:

• CCAW Voice Coil Wire
• KSV Coil
• Ferrite Magnet
• Stamped Steel Basket
• Paper Cone Material
• Cone Edge Cloth

Thiele-Small Parameters:

• Resonant Frequency (Fs): 57.1Hz
• D.C. Voice Coil Resistance (Re): 3.2
• Mechanical Quality Factor (Qms): 13.06
• Electrical Quality Factor (Qes): 0.39
• Total Quality Factor (Qts): 0.38
• Compliance Equivalent Volume (Vas): 31.2L
• BL Product (BL): 11.1
• Diaphragm Mass inc. Airload (Mms): 41.8 gr

Specifications:

• Basket Diameter: 10.3″ (262mm)
• Max Power: 500 Watts
• Nominal Power: 300 Watts
• Impedance: 4 Ω
• Resonance: 82.4Hz
• Sensitivity: 106.1
• Sold Individually
