DS18

DS18 10PRO1200MB-8 10" Mid-Bass Loudspeaker 600W RMS - 8 Ohm

$269.99
$231.99
SKU:
10PRO1200MB-8
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

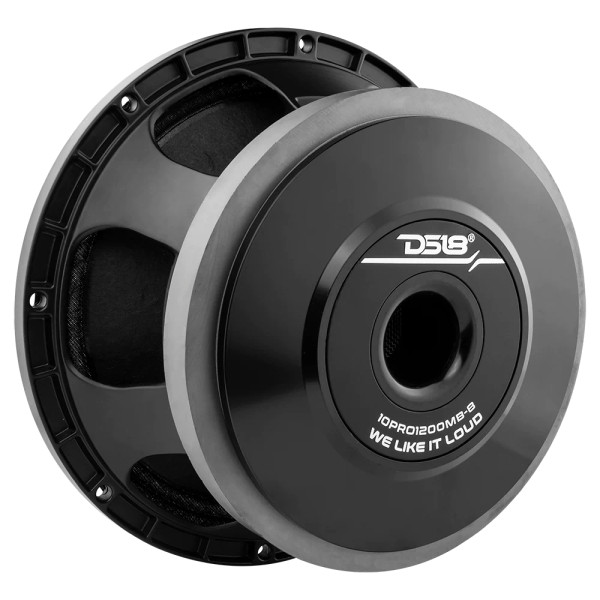

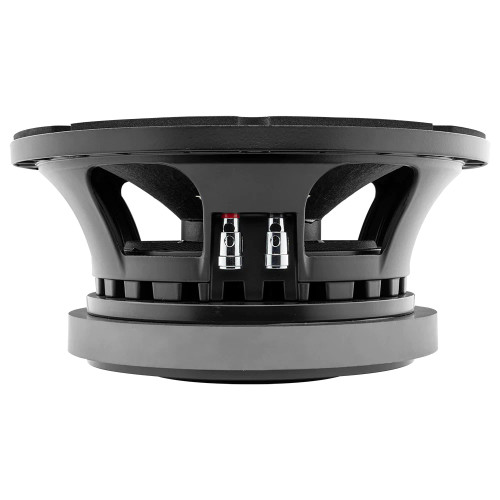

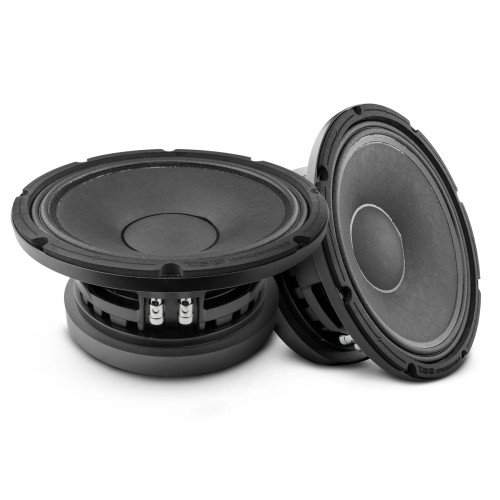

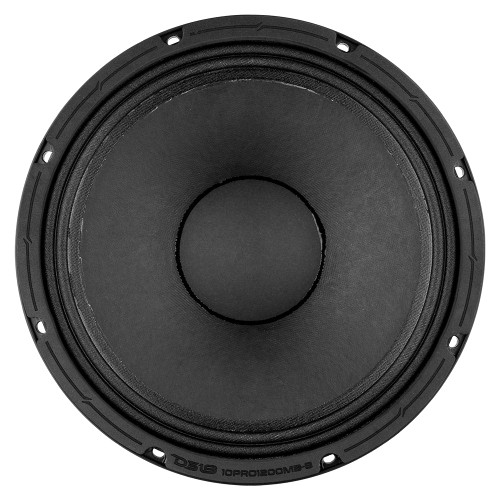

DS18 10PRO1200MB-8 10" Mid-Bass Loudspeaker 600W RMS - 8 Ohm

$269.99
$231.99

About: DS18 10PRO1200MB-8 10" Mid-Bass Loudspeaker 600W RMS -  8 Ohm (Each)

Immerse yourself in a world of crisp, powerful sound with DS18’s 10PRO1200MB-8! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 10PRO1200MB-8 reigns supreme! Featuring a design that prioritizes powerful and punchy bass responses, the 10PRO1200MB-8 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music LOUD! One of the standout features of these speakers is their impressive frequency response range, which spans from 55Hz to 4.5KHz. This means you can expect a solid mid-bass response from the 10PRO1200MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.

With an 8 ohm impedance, the 10PRO1200MB-8 reduces overall power consumption and heat generated by your system. The 10PRO1200MB-8’s interleaved (ISV) 3” voice coil handles 600W RMS and 1200W MAX power levels, an impressively manageable power setting for a speaker with an incredibly high 96 dB sensitivity! The ISV configuration on the 10PRO1200MB-8’s voice coil increases the magnetic field strength, reduces distortion, and handles higher power levels with ease. If you're on the hunt for a professional audio speaker that plays mid-bass notes with authority, then look no further than DS18’s 10PRO1200MB-8! Don't settle for less than the best - the 10PRO1200MB-8 is the speaker you need to take your music to the next level!

Product Highlights:

  • 10" Mid-Bass
  • MAX Power: 1200 Watts
  • RMS Power: 600 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet

Specifications:

  • Nominal Diameter: 10" (260 mm)
  • Nominal Impedance: 8 Ohm
  • RMS Power Handling: 600W
  • Maximum Power Handling: 1200W
  • Sensitivity (1w/1m): 98dB
  • Frequency Response: 55Hz-4.5KHz
  • Recommended HI Pass Crossover: 70Hz
  • Sold in Pair or Single: Single
  • Grill Included: No

Features:

  • Double Demodulating Rings (DDR): No
  • Interleaved Sandwich Voice coil (ISV): Yes
  • Improved Heat Dissipation: Yes
  • Cone Shape: Curvilinear

 Motor:

  • Voice Coil Diameter: 3" (76.2 mm)
  • Voice Coil Former Material: Fiberglass
  • Winding Material: Aluminum
  • Cone Material: Non-Pressed Paper
  • Dust Cap Material: Paper
  • Surround Material: Cloth
  • Basket Material: Die cast Aluminum
  • Basket Color/Finish: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 90 Oz
  • Displacement Volume: 2.03L / 0.071ft3

Thiele & Small Parameters:

  • Equivalent Volume (Vas): 35.1L / 1.24ft3
  • Excursion (one way) (Xmax): 6.5 mm
  • Free Air Resonance (Fs): 65 Hz
  • Mechanical Factor (Qms): 10.39
  • Electrical Factor (Qes): 0.35
  • Total Factor (Qts): 0.34
  • Mechanical Mass (Mms): 33.88 g
  • Mechanical Compliance (Cms): 0.187 mm/N
  • BL Factor (BL): 15.71
  • Voice Coil Inductance (Le): 0.38 mH
  • Cone Area (Sd): 366.44 Cm2
  • DC Resistance (Re): 5.8 Ohm
  • Mechanical Mass w/o air (Mmd): 29.91 g

Measurements:

  • Overall Diameter: 10.23" (260 mm)
  • Overall Depth: 5" (129 mm)
  • Front Mount Baffle Cutout: 9.2" (234 mm)
  • Mounting Depth: 4.4" (112 mm)
  • Motor Diameter: 7.87" (200 mm)
  • Gross Single Unit Weight: 8.5 Kg
  • Single Unit Box Dimensions (W x L x H): 288 x 288 x 155 mm
