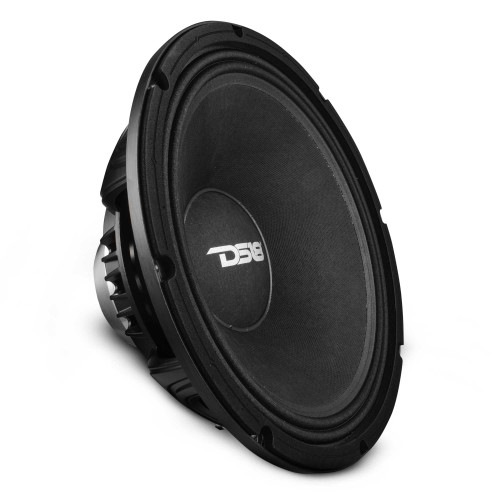

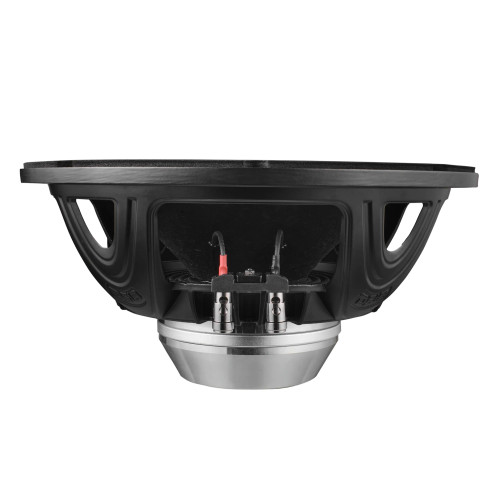

About: DS18 12XL1000N-8 XL Series 12" 500W RMS Neodymium Magnet Mid-Range Loudspeaker - 8 Ohm (Each)

12” Mid-Range Loudspeaker With Neodymium Magnet

DS18’s 12XL1000N-8 is made for serious audio systems, delivering professional-grade clarity and volume without compromise. This 12” 8-ohm mid-range loudspeaker is a monster in any setup!

LOUD and Clear

Rated at 500W RMS and 1000W MAX, the 12XL1000N-8 delivers thunderous midrange that punches through any mix. With a 100dB sensitivity, it hits harder with less power, keeping your system efficient and LOUD. Its wide 80Hz–5KHz frequency range captures every note with surgical accuracy.

Neodymium Core

At the heart is a lightweight neodymium magnet, delivering high flux density in a compact form factor. The Kapton voice coil resists heat and stress under pressure, while the non-pressed paper cone balances stiffness and responsiveness for crystal-clear output, even at high volume.

Performance You Can Feel

From the demodulating rings for thermal efficiency, to the satin black aluminum basket that keeps everything in place—this driver was built to handle the kind of sound real audiophiles dream about.

You want pro-level output? Get it with DS18’s 12XL1000N-8!

Product Highlights:

• 12" Mid-Range
• MAX Power: 1000 Watts
• RMS Power: 500 Watts
• Impedance: 8-Ohm
• Neodymium Magnet
• 100dB

Specifications:

• Nominal Diameter: 12" (305 mm)
• Nominal Impedance: 8 ohms
• RMS Power Handling: 500 watts
• MAX Power Handling: 1000 watts
• Sensitivity (1w/1m): 100dB
• Frequency Response: 80Hz-5KHz
• Recommended High-Pass Crossover: 100Hz
• Sold in Pair or Single: Single
• Grill Included: No
• Interleaved Sandwich Voice coil (ISV): No
• Demodulating Rings: Yes
• Improved Heat Dissipation: Yes
• Cone Shape: Curvilinear
• Speaker Terminals: Push 12ga

Motor:

• Voice Coil Diameter: 3" (76.2 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Non-pressed Paper
• Dust Cap Material: Paper
• Bullet Material: N/A
• Bullet Color/Finish: N/A
• Surround Material: Cloth
• Spider Diameter: 5" / 127mm
• Leads Type: Direct to Cone
• Basket Material: Aluminum
• Basket Color/Finish: Satin Black
• Magnet Material: Neodymium
• Magnet Weight: 11 Oz
• Displacement Volume: 0.07L / 0.00247ft3

Thiele & Small Parameters:

• Equivalent Volume (Vas): 75.12L / 2.65ft3
• Excursion (one way) (Xmax): 7mm
• Free Air Resonance (Fs): 60Hz
• Mechanical Factor (Qms): 5.8
• Electrical Factor (Qes): 0.35
• Total Factor (Qts): 0.33
• Mechanical Mass (Mms): 44.6g
• Mechanical Compliance (Cms): 0.19mm/N
• BL Factor (BL): 18.7
• Voice Coil Inductance (Le): 0.25mH
• Cone Area (Sd): 526.85cm2
• DC Resistance (Re): 5.6 ohm
• Mechanical Mass w/o air (Mmd): 37g

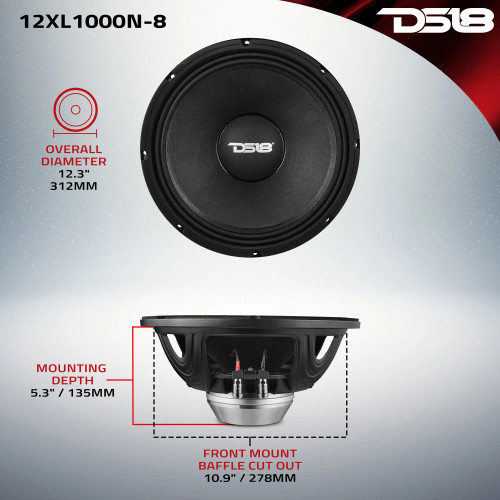

Measurements:

• Overall Diameter: 12.3" (312 mm)
• Overall Depth: 5.8" (148 mm)
• Front Mount Baffle Cutout: 10.9" (278 mm)
• Mounting Depth: 5.3" (135 mm)
• Motor Diameter: 5.16" (131 mm)
