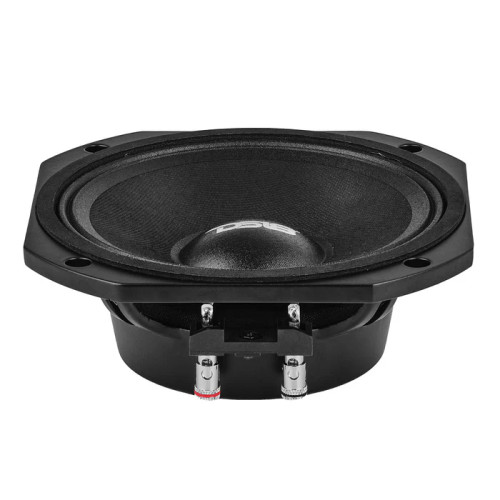

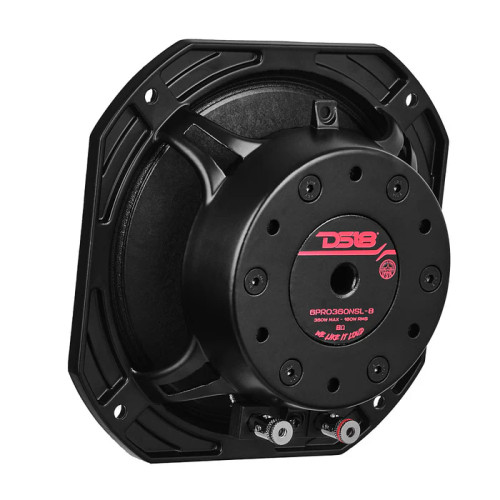

DS18’s 6PRO360NSL-8 is a powerhouse of sound designed to make building your system easier than ever before. With a sleek black die-cast aluminum basket with outer support rings for organization, this midrange speaker was designed for show quality performance. The push speaker terminals (12ga) make installation a breeze, ensuring a secure and seamless connection. Featuring a nominal impedance of 8 OHM and a robust RMS power handling of 180W, DS18’s 6PRO360NSL-8 guarantees every note, beat, and vocal is reproduced accurately. The103 dB sensitivity guarantees crystal-clear sound at high volumes so you never have to stop getting LOUD!

Equipped with an Interleaved Sandwich Voice Coil (ISV) and improved heat dissipation, this speaker can handle the most demanding audio setups. The curvilinear cone shape plays a big factor in this speaker's exceptional sound reproduction capabilities. Crafted with premium materials, the DS18 6PRO360NSL-8 is built to last. Its fiberglass voice coil with a diameter of 1.78", winding material made of aluminum, and neodymium magnet, weighing in at 11.7 Oz, all work together seamlessly to produce the most vibrant audio experience possible. Unlock the true potential of your audio system with DS18’s 6PRO360NSL-8!

Product Highlights:

• 6.5" Square Slim Mid-Range
• MAX Power: 360 Watts
• RMS Power: 180 Watts
• Impedance: 8 Ohm
• Ferrite Magnet
• 103dB

Specifications:

• Nominal Diameter: 6.5" / 165mm
• Nominal Impedance: 8 Ohms
• RMS Power Handling: 180 Watts
• MAX Power Handling: 360 Watts
• Sensitivity (1w/1m): 103dB
• Frequency Response: 100Hz-10KHz
• Recommended Hi Pass Crossover: 100Hz
• Sold as Pair or Single: Single
• Grill Included: No


Features:

• Interleaved Sandwich Voice coil (ISV):

  Yes
• Demodulating Rings: No
• Improved Heat Dissipation: Yes
• Cone Shape: Curvilinear
• Speaker Terminals: Push (12ga)

Motor:

• Voice Coil Diameter: 1.78" / 45mm
• Voice Coil Former Material: Fiberglass
• Winding Material: Aluminum
• Cone Material: Non-pressed Paper
• Dust Cap Material: Cloth
• Bullet Material: N/A
• Bullet Color/ Finish: N/A
• Surround Material: Cloth
• Basket Material: Die-Cast Aluminum
• Basket Color/Finish: Black
• Magnet Material: Neodymium
• Magnet Weight: 11.7 Oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 11.54L / 0.4ft3
• Excursion (one way) (Xmax): 2.5mm
• Free Air Resonance (Fs): 125Hz
• Mechanical Factor (Qms): 8.76

• Electrical Factor (Qes): 0.53
• Total Factor (Qts): 0.5
• Mechanical Mass (Mms): 4.68g

• Mechanical Compliance (Cms): 0.34 mm/N
• BL Factor (BL): 6.53

• Voice Coil Inductance (Le): 0.68 mH
• Cone Area (Sd): 153.94 cm²
• DC Resistance (Re): 5.9 ohm

Measurements:

• Overall Diameter: 6.38" / 162mm
• Overall Depth: 2.44" / 62mm
• Front Mount Baffle Cutout: 5.82" / 148mm
• Mounting Depth: 2" / 51mm
• Motor Diameter: 3.74" / 95mm
