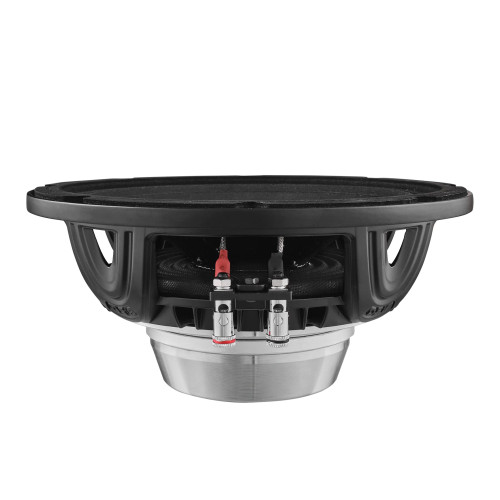

About: DS18 8XL800N-8 XL Series 8" 400W RMS Neodymium Magnet Mid-Range Loudspeaker - 8 Ohm (Each)

8” Mid-Range Loudspeaker With Neodymium Magnet | 8-ohm

The 8XL800N-8 is designed to deliver mind-blowing clarity, making it the go-to choice for high-performance car audio systems. With an impressive power handling of 400W RMS and 800W MAX, you can reach extreme volumes while maintaining your audio’s integrity.

Precision-Tuned Frequency Response

With a wide frequency response range of 100Hz – 10kHz, the 8XL800N-8 captures every detail of your favorite tracks. Delivering perfectly balanced sound across the midrange spectrum.

Extreme Sensitivity for Maximum Output

With an insane 100.7dB sensitivity rating, this speaker produces incredibly high SPL (Sound Pressure Levels) with less power. It maximizes output without distortion, ensuring louder, clearer sound even in large vehicles and open spaces.

Advanced Engineering for Superior Durability

The 2” Kapton voice coil provides exceptional heat resistance, allowing the speaker to handle extended play at high power levels without overheating. The non-pressed paper cone enhances audio accuracy and responsiveness, while the cloth surround ensures durability and smooth performance—even under extreme conditions.

Lightweight Yet Powerful Neodymium Magnet

The 8XL800N-8 utilizes a lightweight yet incredibly powerful 7.5oz neodymium magnet. This high-strength magnetic system enhances speaker efficiency, ensuring tighter, punchier midrange frequencies with minimal distortion.

Optimized for Versatile System Integration

Designed with a 8-ohm impedance, the 8XL800N-8 is highly versatile and integrates seamlessly into multi-speaker configurations. Its push-terminal connectors ensure secure and hassle-free installation, making it the perfect choice for custom audio builds.

If you’re looking to crank up the volume without sacrificing clarity, DS18’s 8XL800N-8 is the perfect addition to your sound system.

Product Highlights:

• 8" Mid-Range
• MAX Power: 800 Watts
• RMS Power: 400 Watts
• Impedance: 8-Ohm
• Neodymium Magnet
• 100.7dB

Specifications:

• SKU: 8XL800N-8
• Nominal Diameter: 8" (203 mm)
• Nominal Impedance: 8 ohms
• RMS Power Handling: 400 watts
• MAX Power Handling: 800 watts
• Interleaved Sandwich Voice Coil (ISV): No
• Demodulating Rings: Yes
• Improved Heat Dissipation: Yes
• Cone Shape: Curvilinear
• Speaker Terminals: Push 12ga

Motor:

• Voice Coil Diameter: 2" (50.8 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Non-pressed Paper
• Dust Cap Material: Paper
• Bullet Material: N/A
• Bullet Color/Finish: N/A
• Surround Material: Cloth
• Spider Diameter: 5" / 127mm
• Leads Type: Direct to Cone
• Basket Material: Aluminum
• Basket Color/Finish: Satin Black
• Magnet Material: Neodymium
• Magnet Weight: 7.5 Oz
• Displacement Volume: 0.03L / 0.00105ft3

Thiele & Small Parameters:

• Equivalent Volume (Vas): 17.09L / 0.603ft3
• Excursion (one way) (Xmax): 2.3mm
• Free Air Resonance (Fs): 87Hz
• Mechanical Factor (Qms): 5.68
• Electrical Factor (Qes): 0.27
• Total Factor (Qts): 0.26
• Mechanical Mass (Mms): 12.66g
• Mechanical Compliance (Cms): 0.26mm/N
• BL Factor (BL): 12
• Voice Coil Inductance (Le): 0.06mH
• Cone Area (Sd): 213.82cm2
• DC Resistance (Re): 5.6 ohm
• Mechanical Mass w/o air (Mmd): 11g

Measurements:

• Overall Diameter: 8.2" (210 mm)
• Overall Depth: 3.85" (98 mm)
• Front Mount Baffle Cutout: 7.2" (183 mm)
• Mounting Depth: 3.38" (86 mm)
• Motor Diameter: 4" (102 mm)
