Descriptions

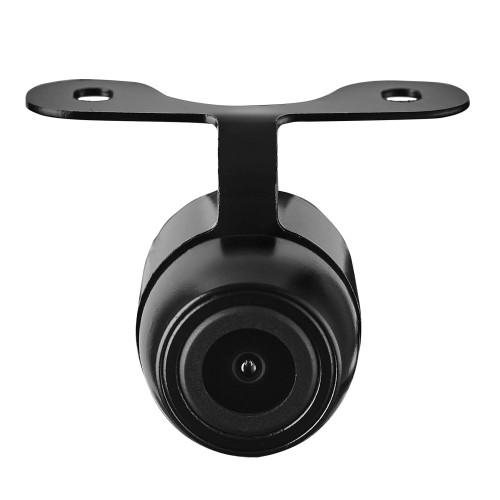

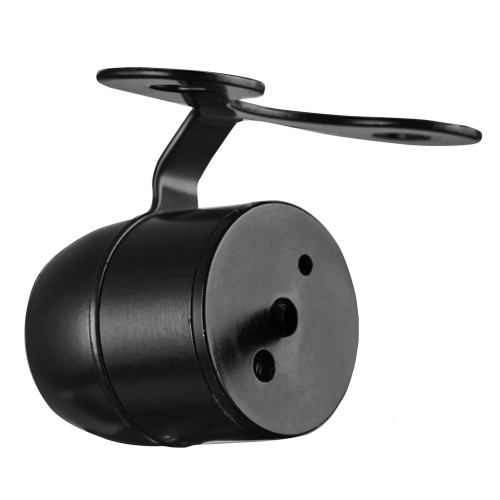

About: DS18 AHDRC Universal Camera for Front / Rear Position Selectable with Adjustable AHD /  CVBS System

The AHDRC offers total visibility. Use it as a front, rear, or interior cam — and switch between AHD and CVBS modes for seamless compatibility with your system.

Wide-Angle Clarity, Day or Night

See more of the road (or your driveway) with a 150° wide-angle lens. Advanced night vision ensures your view is always clear, detailed, and reliable.

Built for the Real World

The AHDRC is housed in a tough aluminum shell with a sleek black finish and a rugged IP68 waterproof rating — so you can see in any driving condition.

Smart Mounting, Seamless Setup

Choose between flush or surface mount options for a perfect fit on any vehicle. Dial in the exact positioning you need with a 45° adjustable viewing angle.

Everything You Need

The AHDRC includes everything needed for an easy installation. Just mount, plug in, and ride out. The AHDRC brings DS18 clarity to every drive — front, back, or anywhere in between.

Product Highlights:

• Back Up Camera
• Surface Mount ~ Front or Rear
• High Resolution / Low Illumination
• Full Color, Parking Guide
• AHD / CVBS Systems
• Water Proof IP68

Specifications:

• SKU: AHDRC
• Camera Type: 12V AHD/CVBS
• Mounting Type: Universal Surface or Flush mount
• Location Mode (Front/Rear): Front or Rear
• Adjustable Modes: Front/Rear, Parking Lines ON/OFF, AHD/CVBS
• Parking Guide Lines: Selectable (ON-OFF)
• Night Vision: Yes
• Lens Material: Glass-Plastic Hybrid (1G3P)
• Housing Material / Color: Aluminum / Black
• Adjustable Mount Angle: Yes up to 45°
• Waterproof Rating: IP68
• Wiring Length (Video): 20ft  (6m)
• Wiring Length (Power): 3ft (1m)
• Lens Viewing Angle: 150°
• Image Sensor Size: 1/4.5"
• TV System: AHD 25 / NTSC
• Effective Pixels: 1080x720 (AHD) / 640x480 (CVBS)
• Resolution: Up to 720P
• Minimum Illumination: 0.1 lux
• Video Output: 1.0 Vp-p / 75 ohms
• Auto Gain Control (AGC): Yes
• Black Light Compensation (BLC): Yes
• S/N Ratio: >48dB
• White Balance: Yes
• Electronic Shutter: Electronic Rolling Shutter
• Current Consumption: 80mA
• Operating Voltage: 8-15V
• Operating Temperature: -4°F~140°F / -20°C~60°C
• Storage Temperature: -22°F~158°F / -30°C~70°C

Measurements:

• Overall Length: 1" (27 mm)
• Overall Diameter: 0.88" (22.5 mm)
• Mounting Hole Diameter: 0.7" (18 mm)

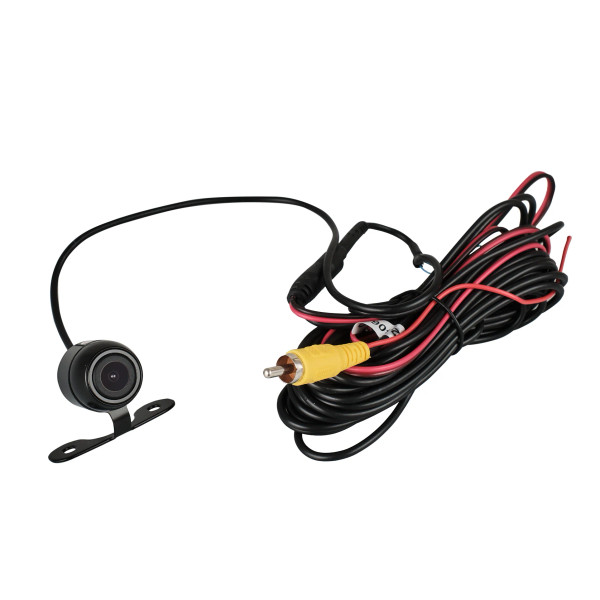

Accessories Included:

• Bracket for Surface Mounting: 1pc
• Double-Side Foam Tape for Surface Mounting: 1pc
• Screws for Surface Mounting: 2pcs (PWA 3x10mm)
• Hole Saw for Flush Mounting: 1pc (22.5mm)
• Ring for Flush Mounting: 1pc
• RCA Wire: 1pc (20ft/6M)
• Cable Ties: 4pcs (3x150mm)
