Descriptions

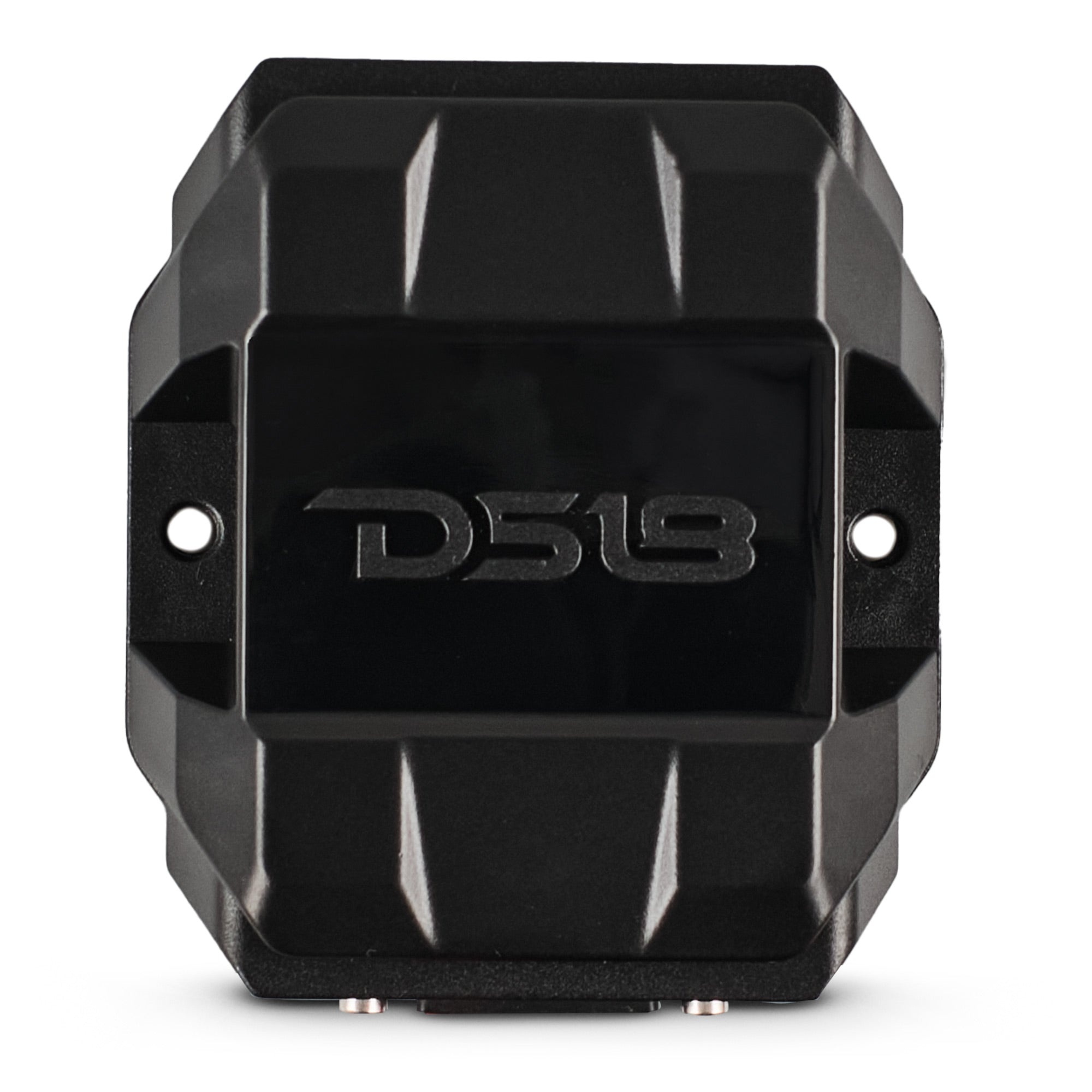

About: DS18 BTC-FIVE Universal Water-Resistant Audio Receiver with Bluetooth Connectivity

Universal Bluetooth® 5.3 Audio Receiver

The BTC-FIVE brings Bluetooth® 5.3 performance to your ride. This universal wireless receiver gives you seamless streaming from iOS or Android devices with long-range, low-lag clarity.

Bluetooth 5.3 with 130ft+ Range

Connect once and go. With up to 130 feet of wireless reach and auto-reconnect, your music stays locked in—even after power cycles or long pauses between sessions.

Clean Signal

The 3.3V RCA stereo pre-out pairs perfectly with amps and processors, pushing a clean 96dB SNR signal.

IP66 Water-Resistant Design

Built for powersports, marine, off-road, and daily use. Rain, splash, or mud—no problem.

Plug and Play Simplicity

Comes with all necessary power and RCA cables, internal fuse protection, and remote output to start your amps automatically. Clean install. No guesswork.

Turn any system into a wireless powerhouse with DS18’s BTC-FIVE.

Features:

• Universal Digital Media Receiver
• Bluetooth V5.3 ~ Up to 130 feet / 40 Meters
• 3.3 V Stereo RCA Output
• Remote Trigger Output
• Water Resistant IP66
• IOS and Android Compatible

Specifications:

• Frequency Response: 20Hz-20KHz
• Signal to Noise Ratio: 96dB
• T.H.D: 0.467%
• Channel Separation dB: 60dB
• Voltage Operation: 8-15V
• Fuse Size: 1A
• Waterproof Rating: IP66
• RCA Line Out (Pre-Amp): 3.3v
• Aux Line Input: No
• Remote Out: Yes
• USB Player: No
• Buttons / Controls: No
• Illumination: No
• Body Material / Color / Finish: PC Black

BT Specifications:

• Version: 5.3
• Services: Audio Streaming
• Audio Protocols: A2DP
• Audio Codec Supported: SBC
• Sample Rate KHz: 44.1Khz
• Bitrate Depth: 192-320Kb/s
• Bitrate Depth: 16bits
• Range: >130ft / >40m

Measurement:

• Overall Length: 2.85" (72.5 mm)
• Overall Width: 3.15" (80 mm)
• Overall Height: 1" (26.8 mm)
• Gross Single Unit Weight: 0.15 Kg
• Single Unit Box Dimensions (W x L x H): 10.4 x 8.3 x 4.8 cm
