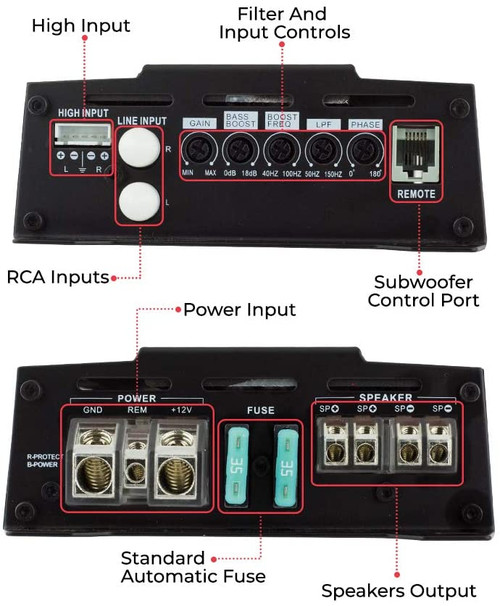

About: DS18 CANDY-XXL1B 1000W RMS Compact Class D Monoblock Car Amplifier

Are you ready for a symphony of sound that's as sweet as it is powerful? DS18's CANDY-XXL1B is more than an amplifier; it's a treat for your ears, designed to leave you craving more. What's truly enchanting about the CANDY-XXL1B is its compact design. It defies the constraints of space, allowing you to mount it virtually anywhere in your vehicle without sacrificing space or your system’s performance. These compact amplifiers are available in various configurations, from 2-channel stereo to 6-channel setups, ensuring that your audio system setup is not just easy but an exhilarating experience. Packing a staggering 1000 watts of power at 1-ohm impedance, the CANDY-XXL1B transforms your interior into an acoustic paradise.

With high-grade components designed to withstand the test of time, the CANDY-XXL1B delivers booming bass whenever you desire, making every drive an auditory adventure. Its frequency response of 10Hz - 150Hz ensures that every note shines, while the low pass filter allows you to sculpt your sound with finesse. The bass boost function elevates your low-end experience from 0dB to a mouthwatering +18dB. The CANDY-XXL1B also comes with RCA and Hi/Lo inputs for easy integration into any factory audio system. Elevate your journey with sweet power from the CANDY-XXL1B and treat your ears to the audio they deserve!

Product Highlights:

• 1 Channel Subwoofer Monoblock
• Class D
• 1 ~ 4 Ohm Stable
• 1 x 1000 Watts @ 1 Ohm
• Compact Design
• Bass Control Knob

Specifications:

• Total Watts (Peak): 3000W
• RMS Power @ 4 Ohm: 400W
• RMS Power @ 2 Ohm: 650W
• RMS Power @ 1 Ohm: 1000W
• RMS Power @ 4 Ohm Bridge: N/A
• Frequency Response: 20-250Hz
• Signal to Noise Ratio: 100 dB
• Input Impedance: 10K ohm
• Total Harmonic Distortion (THD): 0.08%
• Low Level Input Range: 0.2-6V
• High Level Input: Yes
• Selectable X-Over: Fixed LPF
• X-Over Filter Range: 50-150Hz
• Bass Boost Range: 0dB~18dB
• Bass Boost Frequency: 40~100Hz
• Infrasonic Filter: No
• Phase Selector: 0~180?


Features:

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1
• Minimum Impedance: 1 ohm
• Led Indicator: Power/Protect
• Power Input Terminal Size: 4Ga
• Fuse Size: 35A x 3
• Remote Level Control: Yes / Remote Dash Mount
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes (>158?F)
• Over-Load Protection: Yes
• DC Output Protection: No
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes (9-16v)
• Clipping Protection: No
• Body Color / Finish: Black Matte


Measurements:

• Overall Length: 11" (280 mm)
• Overall Width: 5" (127 mm)
• Overall Height: 1.87" (47.5 mm)
• Heatsink Length: 9.96" (253 mm)
• Gross Single Unit Weight: 5.5lb
