Descriptions

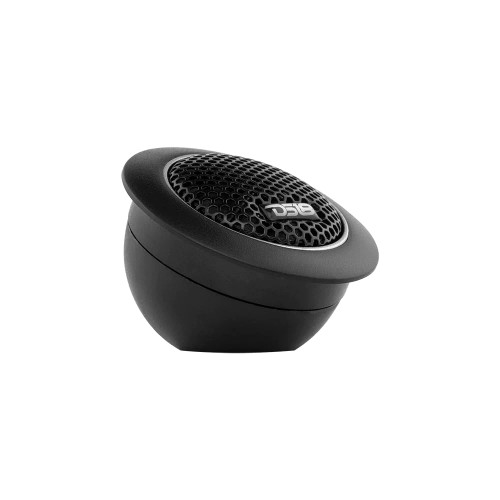

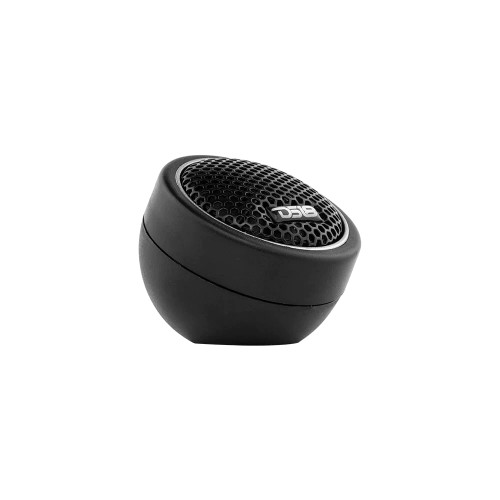

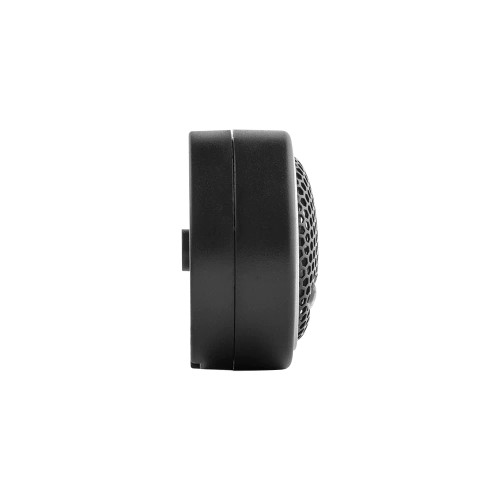

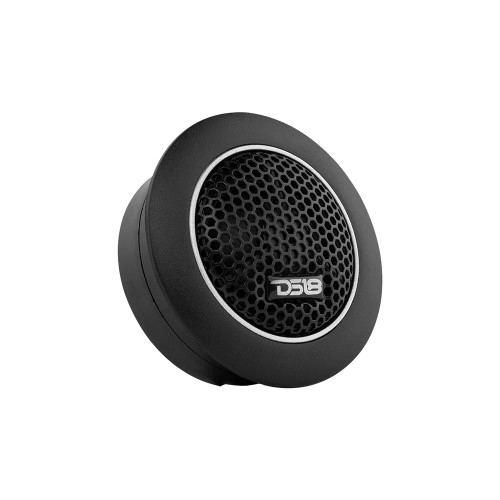

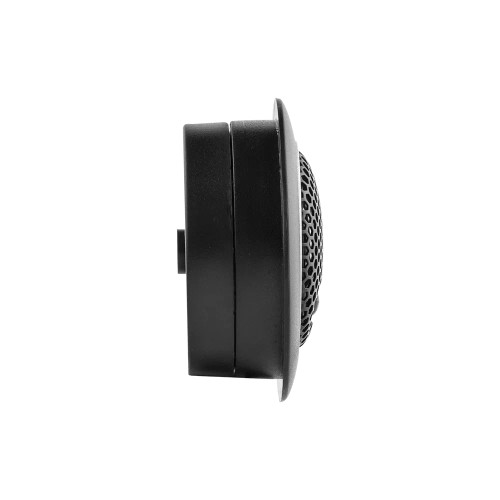

About: DS18 CXT 1.92" Silk Dome Tweeter With 1" Voice Coil And Neodymium Magnet

Designed with a passion for perfection and crafted to meet the demands of even the most discerning audiophiles, DS18’s CXT is the epitome of audio excellence. Experience your music the way it was meant to be heard as the CXT unleashes it’s full potential, delivering bright high frequency notes at extreme volumes. The CXT underwent rigorous testing, enduring the harshest conditions to ensure its resilience and reliability. From scorching heat to bone-chilling cold, the CXT has been put through its paces, emerging triumphantly to deliver uncompromising performance, no matter the circumstances.

What sets the CXT apart from the competition is its impeccable design. The 1.92-inch overall diameter and 1-inch voice coil work harmoniously to produce crystal-clear, bright highs that soar effortlessly above the mix. The 1-inch aluminum voice coil, coupled with a silk diaphragm, produces heavenly highs that shimmer and dance in the air. The neodymium magnet, weighing in at 0.33 ounces, enables the CXT to reach its full potential, ensuring every nuance of your music is faithfully reproduced. Its sleek and compact form factor allows for easy installation, and when paired together, multiple CXT’s create a visual symphony that complements any car interior easily.

But don't let its size fool you - the CXT is a powerhouse of sonic excellence. With an AES Power Handling of 30W, and a MAX Power Handling of 120W, DS18’s CXT handles high wattages with authority, ensuring that every high-range frequency is delivered with precision and impact. Immerse yourself in a world where every detail matters, when the CXT takes your music to a new dimension of sound.

Product Highlights:

• 1.92" Dome Tweeter
• RMS Power: 60 Watts(120 Watts Peak)
• Impedance: 4 Ohm ~ 87dB
• Silk Diaphragm
• Neodymium Magnet
• Pair

Specifications:

• Nominal Diameter: 1.92" (49 mm)
• Nominal Impedance: 4 OHMS
• AES Power Handling: 30W
• Program Power Handling: 60W
• Peak Power Handling: 120W
• Sensitivity (1w/1m): 87 dB
• Frequency Response: 1.5KHz-20KHz
• Recommended Hi Pass Crossover: 3KHz
• Pair: Yes

Motor:

• Voice Coil Diameter: 1” (25.4 mm)
• Voice Coil Former Material: Aluminum
• Winding Material: SV
• Diaphragm Material: Silk
• Magnet Material: Neodymium
• Magnet Weight: 0.33 oz (9.6g)
• Body Material: ABS
• Body Color: Black

Measurements:

• Overall Diameter: 1.69" (43 mm)
• Overall Depth: 0.74" (19 mm)
• Front Mount Baffle Cutout: 1.92" (49 mm)
• Mounting Depth: 0.7" (18 mm)
