Descriptions

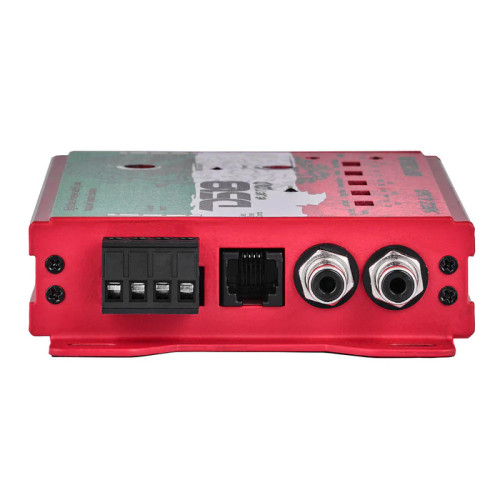

About: DS18 DBPX200.MX Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator

Upgrade your car audio system with DS18’s DBPX200.MX to get LOUD for la cultura! Featuring a backdrop of the Mexican flag, DS18’s DBPX200.MX is the perfect addition for anyone who wants to show their pride. Its compact design and aluminum housing make it easy to install in any application, while the PCB with anti-corrosion coating ensures long-lasting durability.

The included balanced line level input and fully adjustable bass processor creates low frequencies and maintains volume from the original source. This means you can fine-tune your bass and volume to your preference, ensuring you get the audio experience you’ve been dreaming of.

With hi-level speaker inputs for OEM integration, the DBPX200.MX seamlessly integrates with any existing car audio system. The dual knob dash mount remote control allows for convenient and easy bass and volume adjustments on the go, giving you full control over your system.

The DBPX200.MX operates at a voltage range of 9-16V and consumes only 0.18A of power. It is recommended to use a 1A fuse rating for optimal performance. The LED indicators on the knob and processor lights up to indicate power, bass enhancement, and clipping.

This DBPX200.MX also features an input load selector, subsonic filter, and selectable auto turn-on features. The PCB with anti-corrosion coating ensures durability and longevity, while the compact design allows for easy installation in any application. Upgrade your car audio system with DS18’s DBPX200.MX and vive la vida en voz alta!

Product Highlights:

• Digital Bass Restoration Processor W/ Mexico Design
• Hi to Low Converter / Speaker Emulator
• 2 Channel Preamp Input / Output
• Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors
• Remote Level Control w/ Bass and Level
• Compact Design

Features:

• Operating Voltage: 9-16V
• Power Consumption: 0.18A
• Recommended Fuse Rating: 1A
• Power Input Terminal Size: 16ga
• LED Indicator: Power / Bass Enhancer
• Ground Isolation Switch: Yes (GND/ISO/200?)
• Hi-Level Speaker Input: Yes (2 Channels)
• Auto Turn-on Function: Yes (Audio/DC)
• Remote Turn-on (Input / Output): Yes
• Remote Level Control: Yes (Bass Enhancer/Level)
• RCA Connector Type: Tiffany (Silver)
• Housing Material: Aluminum
• Body Color / Finish: Red / Green / White (Mexico Theme)

• Compact Size to easy Installation for Any Applications: Yes
• Surface Mount Component Technology: Yes
• Quality Control Verification using Audio Precision Instruments: Yes
• Remote Level Control with Clip Indicator: Yes

Specifications:

• Frequency Response: 10Hz-20kHz
• S/N Ratio: 95dB
• THD: 0.05%
• Input Sensitivity (Low-Level): <8.8V
• Input Sensitivity (Hi-Level): >15V
• Input Impedance: 20Kohms
• Output Voltage: Selectable (5V/7.5V/10V)
• Output Impedance: 110ohms
• Balanced Input Noise Rejection: >45dB
• Stereo Separation: >50dB


Crossover Section:

• Subwoofer LPF Frequency Cut-off: No (Full Range Signal)
• Subwoofer Infrasonic Frequency Cut-off: Selectable (Off/50Hz)


Bass Processor Section:

• Gain: 0~8.8V
• Center Frequency (Sweep): 75Hz~120Hz
• Q Factor (Wide): 1~4

Measurements:

• Overall Length: 6" / 153mm
• Overall Width: 3.7" / 95mm
• Overall Height: 1.1" / 28mm
