Descriptions

About: DS18 DDX6.9CP 6.9" Touchscreen Mech-Less Double-Din Head Unit with Apple Carplay

Thanks to DS18’s DDX6.9CP you and everyone in the vehicle can enjoy crisp visuals and goose bump worthy sound quality. Maneuvering through the options is easy with the touch screen controls giving you absolute control over all your media.
This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Apple Car Play, Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.

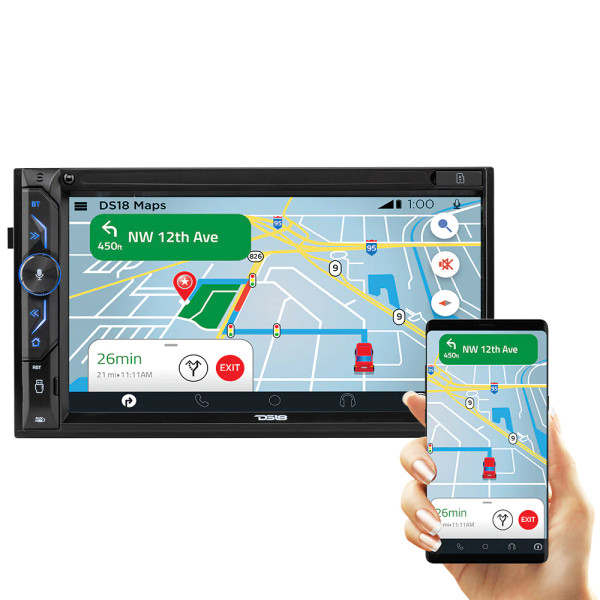

Apps are also easily downloadable when you hook your head unit up to your cellular hot spot. The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer tunes your sound to your tastes easily. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.

There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available.

Product Highlights:

• 6.9-inch (16:9) 1080p (1024x600 pixels) double din touchscreen to maximize your viewing in a small space.

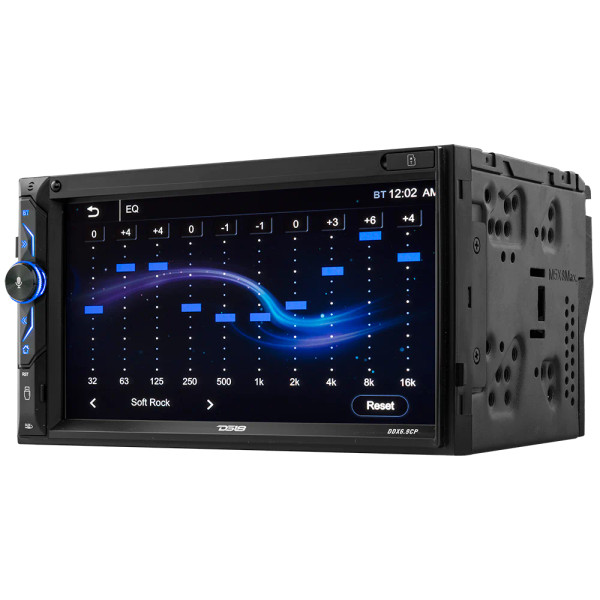

• Full 10 Band EQ
• 4v preamp outputs (SUB / FRONT / REAR)

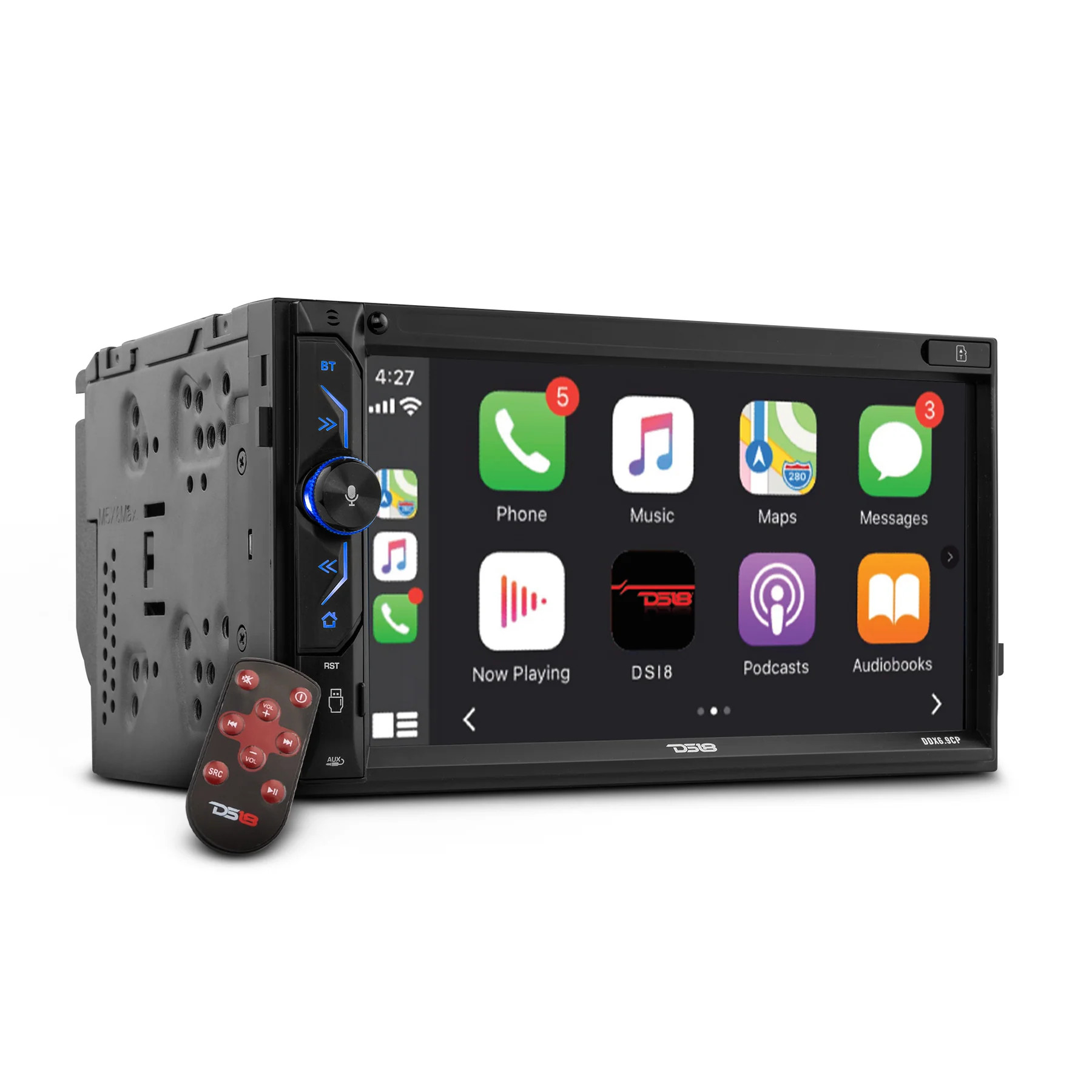

• Built in Apple Car Play, Mirror Link, Wi-Fi, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)

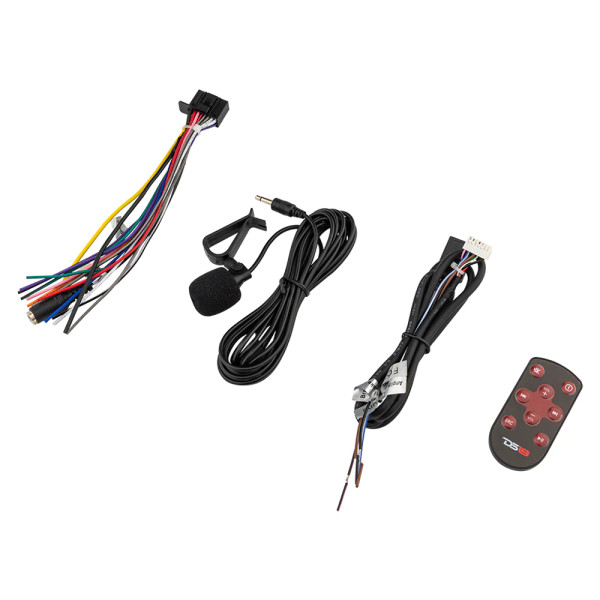

• Wireless remote control for easy operation.

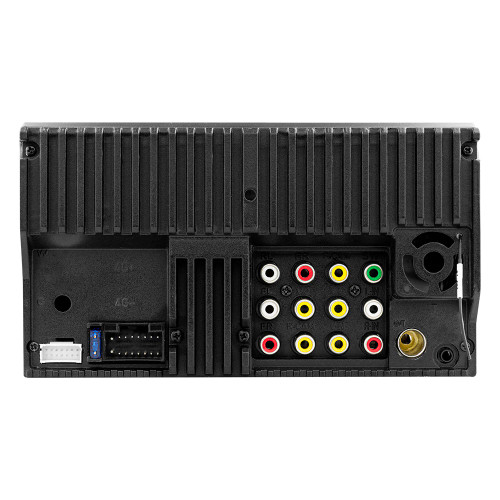

• RCA inputs so you can view external sources video easily via source.
• MIC in options for easy phone operation and built in controls.
• APP control with the DS18 DDXRC app easily found on Google Play or the Apple store.
• Camera Inputs included so you can plug and play most types of back up cameras.
• Apple and Android compatible.

Specifications:

• Screen Size / Aspect Ratio: 6.9 inch / Wide 16:9
• Pixels: 1024 x 600
• Display Type: TFT / WSVGA / Capacitive Touch Screen
• Temperature Operation: -20°C to +60°C (14°F to 140°F)
• Rated power source: 14.4V DC (10.8V to 15V operation)
• Maximum Current Consumption: 15 Amp
• Dimensions (W x H x D):
• Chassis: 178mm x 100mm x 135mm
• Bezel frame: 170mm x 96mm x 5mm
• Weight: 1.80 Lb / 820 grams

Audio Features:

• Maximum Power Output: 40W X 4 Ch / 4 ohm
• Continuous Power Output: 15W x 4 Ch / 4 ohm
• Pre-output Level: 4.5 Volts (Front, Rear, Subwoofer)
• Equalizer: 10 bands (32hz, 63hz, 125hz, 250hz, 500hz, 1khz, 2khz, 4khz, 8khz, 16khz) Gain: +/- 6dB
• Audio Control: Volume / Balance / Fader /Loudness

Tuner Features:

• Frequency Range: FM - 87.5 ~ 107.9 KHz  AM: 530 ~ 1710 KHz
• Presets Memory: 30 Stations (18 FM/12 AM)
• Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
• Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
• RDS: Yes (Radio Data System)

USB / SD PLAYER:

• Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
• Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
• Resolution Supported: 1080P Video
• Memory Size Reader: Up to 64 Gb
• Max Current Supply: 1.5 Amp (USB)
• Number of USB Ports: 2 (1 x Front (Type-C), 1 x Rear)

Connectivity:

• Bluetooth Version / Services: V5.1/ Audio Streaming / Hands Free calls
• Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
• Video Output: Dual RCA (1 Volt/75 ohm)
• AV Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
• Microphone: 3.5mm Jack external MIC Input
• Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input
