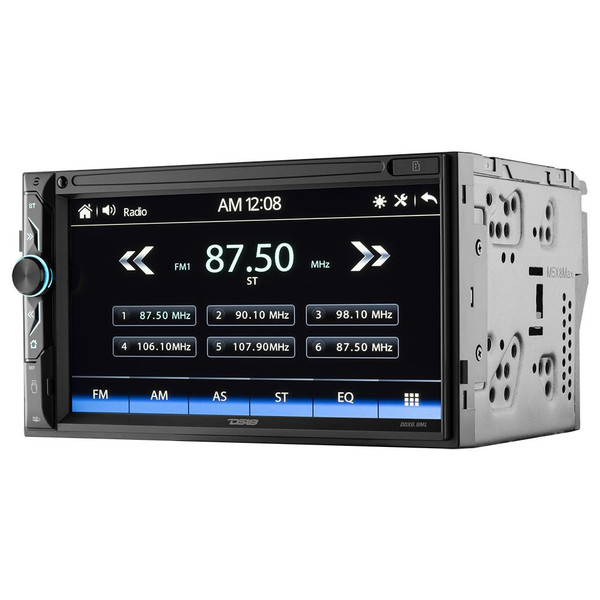

About: DS18 DDX6.9ML 6.9" Double-Din Headunit Digital Media Receiver

Thanks to DS18’s DDX6.9ML you and everyone in the vehicle can enjoy crisp visuals and goose bump worthy sound quality. Maneuvering through the options is easy with the touch screen controls giving you absolute control over all your media. This receiver has everything you need to bring your multimedia dreams to life: including Mirror Link, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.

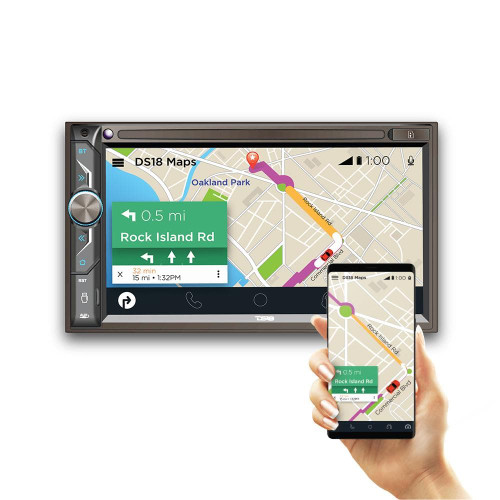

The SD reader can use memory cards up to 64GB. Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer tunes your sound to your tastes easily. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.

There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts (7V for subwoofers) so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available.

Product Highlights:

• 6.9" Double-Din Digital Media Receiver
• Mech-Less
• BT ~ USB ~ SD ~ AUX ~ AM/FM
• Mirror Link ~ SWC
• Touchscreen
• IOS and Android Compatible

Specifications:

• Rated power source: 14.4V DC (10.8V to 15V operation)
• Maximum Current Consumption: 10 Amp
• Dimensions (W x H x D): Chassis: 178 x 100 x 165 mm / Bezel frame: 170 x 96 x 5 mm
• Weight: 820 grams

Display:

• Screen Size / Aspect Ratio: 6.9" / Wide 16:9
• Pixels: 1024 x 600
• Display Type: TFT / WSVGA / Capacitive Touch Screen
• Temperature Operation: -20C to +60C (14F to 140F)

Audio:

• Maximum Power Output: 40W X 4 Ch / 4 ohm
• Continuous Power Output: 15W x 4 Ch / 4 ohm
• Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
• Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
• Gain: +/- 12dB
• Audio Control: Volume / Balance / Fader /Loudness

Tuner:

• Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
• Presets Memory: 30 Stations (18 FM/12 AM)
• Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
• Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)

USB / SD Player:

• Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
• Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
• Resolution Supported: 1080P Video
• Memory Size Reader: up to 64 Gb
• Max Current Supply: 1.5 Amp (USB)
• Number of USB Ports: 2 (1 x Front, 1 x Rear)

Connectivity:

• Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
• Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
• Video Output: Dual RCA (1 Volt/75 ohm)
• A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
• Microphone: 3.5mm Jack external MIC Input
• Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input
