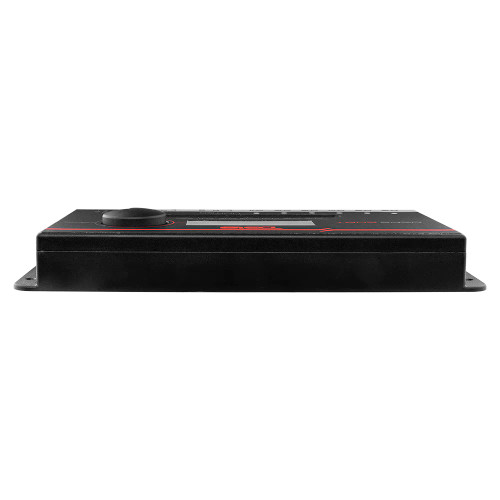

About: DS18 DSP2.6DBT 2-Channel and 6-Channel Out Digital Sound Processor with Bluetooth and LCD Screen

DS18 proudly presents the DSP2.6DBT: a 2-channel in and 6-channel out digital sound processor designed to revolutionize your car audio experience. At DS18, we understand that true audiophiles seek control – absolute dominion over every aspect of their soundstage. The DSP2.6DBT is your key to unlocking that control, putting the immense power of your audio system at your fingertips. Creating the perfect audio system has never been easier, thanks to the DSP2.6DBT's intuitive features. Our BT Interface grants you direct access to an extensive list of filtration settings, ensuring that your sound is tailored precisely to your preferences. Our dedicated DSP2.6DBT Application, available on both the App Store and Google Play, dares you to fine-tune and monitor every aspect of your signal processing. Effortlessly save presets for specific songs or genres, creating the ideal listening experience every time.

The DS18 DSP2.6DBT takes audio tuning to an entirely new level with its Precision Parametric Equalizer. This advanced feature grants you the power to sculpt your sound with surgical precision. With 3 independent bands per channel, you have unparalleled control over the frequencies, allowing you to fine-tune every aspect of your audio reproduction. The DS18 DSP2.6DBT introduces you to a world of limitless sonic possibilities with its Dynamic Crossover Filters. Featuring Butterworth, Linkwitz-Riley, and Bessel filters, this exceptional digital sound processor allows you to tailor the audio spectrum with unparalleled accuracy. Prepare to be immersed in a world of sonic bliss, where every note is precisely crafted, and every detail is faithfully reproduced.

Total Audio Control

The DSP2.6DBT gives you fine-grain control over your entire system—from sub to tweeter. Two input channels feed six fully customizable outputs, each with independent settings that can be sculpted for any setup.

Hear Every Detail

The DSP2.6DBT includes a 3-band independent parametric equalizer per output channel, so you can target specific frequencies with pinpoint accuracy.

Advanced Crossovers

Activate your crossover then choose your filter—Butterworth, Linkwitz-Riley, or Bessel—and take full command of your frequency split points.

LCD Display with Bluetooth Control

Monitor all changes and active settings via the integrated LCD screen. The built-in Bluetooth interface keeps things wireless, streamlined, and easily accessible.

App-Driven Audio

Download the DS18 DSP App for iOS or Download the DS18 DSP App for Android and instantly adjust time alignment, EQ, crossover filters, and more directly from your phone—and save custom presets for genres, moods, or driving conditions.

Redefine what your system can do. Start building your perfect soundstage with DS18’s DSP2.6DBT.

Product Highlights:

• Digital Sound Processor
• 2 Channel In
• 6 Channel Out
• LCD Screen
• Bluetooth Connectivity Via APP
• IOS and Android Compatible

Features:

• Type: Unbalanced
• Connection: RCA
• Max level: Up to 6 Volts RMS
• Impedance: 47kΩ

Outputs (1,2,3,4,5,6):

• Type: Unbalanced
• Connection: RCA
• Max Level: 2 Volts RMS
• Impedance: 470k Ω

Specifications:

• Resolution: 24 Bits
• Sample Frequency: 48KHz
• Latency Frequency: 1.08ms
• Range Frequency: 15Hz a 22KHz (-1db)
• THD+N max: 0.01%
• Signal Noise Ratio: 100dB

Power Supply:

• Voltage: 10~15Vdc
• Consumption: 300mA (5w)
• Fuse: 2A

Measurements:

• Dimensions (H x L x D): 1.18" x 9.84" x 4.72" (30 x 250 x 120mm)
• Weight: 382g / 13.4 Oz
• Shipping Dimensions (L x W x H): 10" x 5.25" x 1.5"
• Shipping Weight: 1 lb
