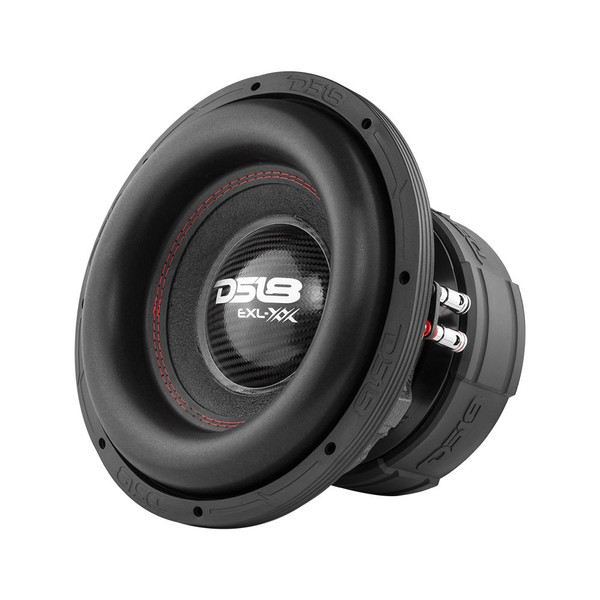

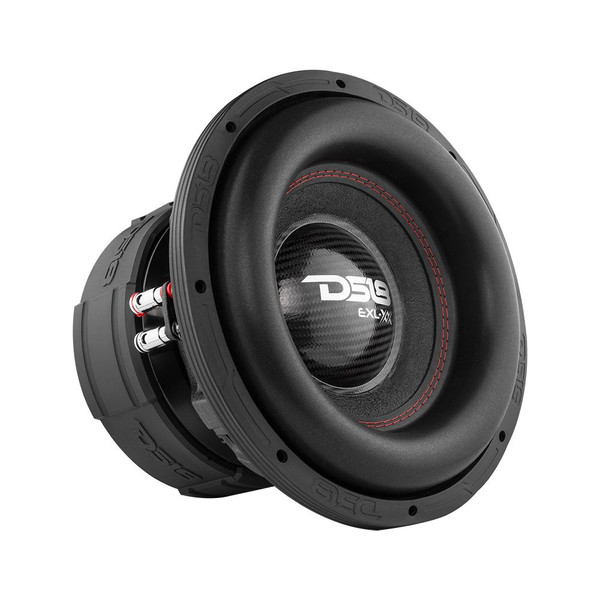

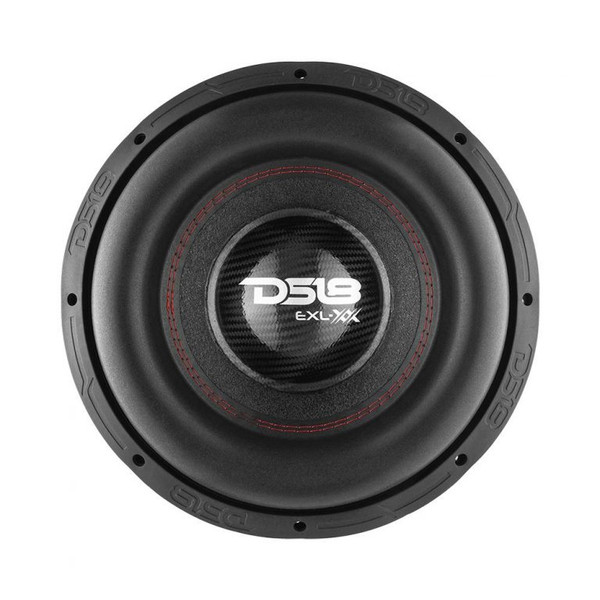

About: DS18 EXL-XX12.2DHE EXL High Excursion 12" 2000W RMS Subwoofer - DVC 2 Ohm

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2HE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Highlights:

• High Excursion surround for a very high amount of xmax.
• Great power handling of 2000w RMS and 4000w max.
• Three inch black aluminum voice coil for high power handling and great efficiency.
• FS of 39 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

Specifications:

• Nominal Diameter: 12"
• Nominal Impedance 2+2 Ohms
• Power Handling:
• RMS: 2000 Watts
• MAX: 4000 Watts
• Sensitivity (1w/1m): 87 dB
• Frequency Response 20-1.3KHz
• Recommended Lo Pass Crossover 80 Hz

Motor:

• VC Diameter 3″(75.6 mm)
• VC Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Glass Fiber
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 306 Oz
• Displacement Volume: 3.26L

Thiele & Small Parameters:

• Equivalent Vol (Vas): 21.986L
• Excursion (Xmax): 42 mm
• Free Air Resonance (Fs): 39.8 Hz
• Mechanical Factor (Qms): 5.128
• Electrical Factor (Qes): 0.529
• Total Factor (Qts): 0.468
• Moving Mass (Mms): 302.158 g
• Compliance (Cms): 0.025 mm/N
• Bl Factor (BL): 16.523
• VC Inductance (Le): 6.9 mH
• Diaphragm Area (Sd): 433.74 cm²
• Dc Resistance (Re): 2 + 2 ohms
• Efficiency Bandwidth Product (EBP): 75.2

Measurements:

• Overall Diameter 12.6" (321 mm)
• Overall Depth 9.25" (235 mm)
• Front Mount Baffle Cutout: 11.1" (282 mm)
• Mounting Depth 7.87" (200 mm)
• Motor Diameter: 8.89" (226 mm)
