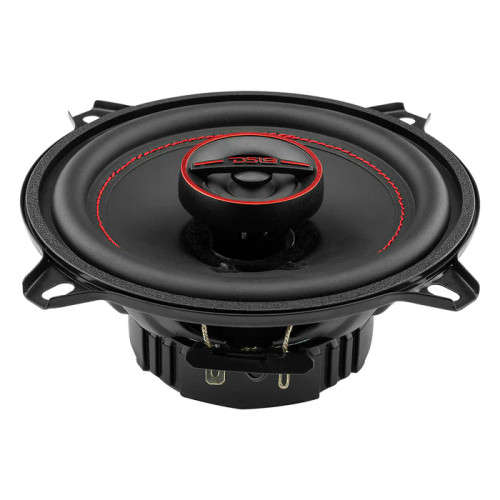

DS18 G5.25XI GEN-X 5.25" 45W RMS 2-Way Coaxial Car Speakers

$55.99
$62.99
11% Off
SKU: G5.25XI
UPC: 663593063977
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: DS18 G5.25XI GEN-X 5.25" 45W RMS 2-Way Coaxial Car Speakers

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers. The G5.25Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G5.25Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.25Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz.

These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W. Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.25Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

Product Highlights:

  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets

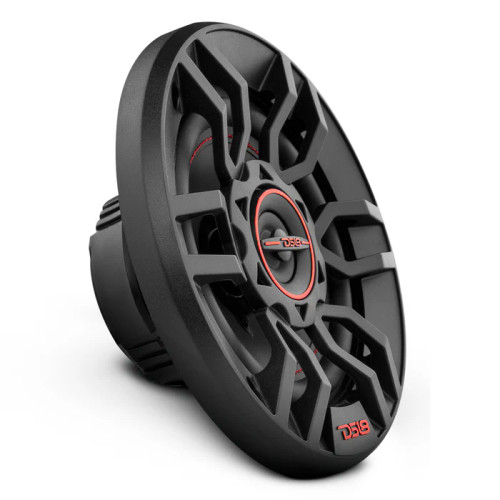

  • Grills Included

Specifications:

  • Nominal Diameter: 5.25" (133 mm)
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 45W
  • Maximum Power Handling: 135W
  • Sensitivity (1w/1m): 84dB
  • Frequency Response: 50Hz-20KHz
  • Recommended HI Pass Crossover: 80Hz
  • Number of ways: 2

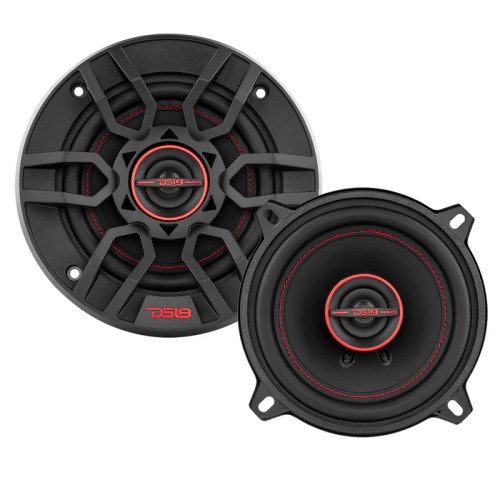

  • Pair or single: Pair
  • Grill Included: Yes

Woofer Specifications:

  • Voice Coil Diameter: 1" (25.5 mm)
  • Voice Coil Former Material: ASV
  • Winding Material: EISV
  • Cone Material: Paper
  • Surround Material: Rubber
  • Basket Material: Steel
  • Basket Color/Finish: Black Matte
  • Magnet Material: Barium Ferrite
  • Magnet Weight: 6.3Oz / 180g

Thiele-Small Parameters:

  • Equivalent Volume (Vas): 3.66L / 0.129ft3
  • Excursion (one way) Xmax: 2.2mm
  • Free Air Resonance (Fs): 86Hz
  • Mechanical Factor (Qms): 3.5
  • Electrical Factor (Qes): 1.63
  • Total Factor (Qts): 1.1
  • Moving Mass (Mms): 9.15g
  • Compliance (Cms): 330mm/N
  • Bl Factor (Bl): 3.4
  • Voice Coil Inductance (Le): 151uH
  • Cone Area (Sd): 84.5 cm2
  • DC Resistance (Re): 3.7 Ohms
  • Mechanical Mass w/o air (Mmd): 8.3g

Tweeter Specifications:

  • Nominal Diameter: 1" (25.5 mm)
  • Voice Coil Diameter: 0.5" (13.25 mm)
  • Voice Coil Former Material: ASV
  • Winding Material: EISVM
  • Diaphragm Material: Mylar
  • Magnet Material: Neodymium
  • Magnet Weight: 1.8g

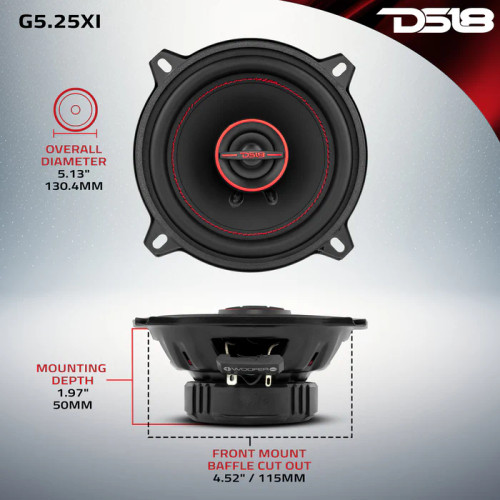

Measurements:

  • Overall Diameter: 5.13" (130.4 mm)
  • Overall Depth: 2.47" (62.8 mm)
  • Overall Diameter with Grill: 6.38" (162 mm)
  • Overall Depth with Grill: 2.75" (69.8 mm)
  • Front Mount Baffle Cutout: 4.52" (115 mm)
  • Mounting Depth: 1.97" (50 mm)
  • Motor Diameter: 3" (76 mm)
  • Tweeter Protrusion: 0.5" (12.8 mm)
  • Gross Single Unit Weight: 0.52 KG
  • Single Unit Box Dimensions (W x L x H): 185 x 85 x 325mm
