Descriptions

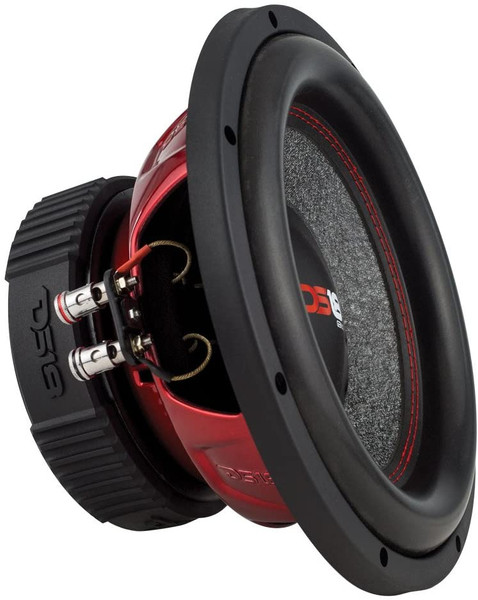

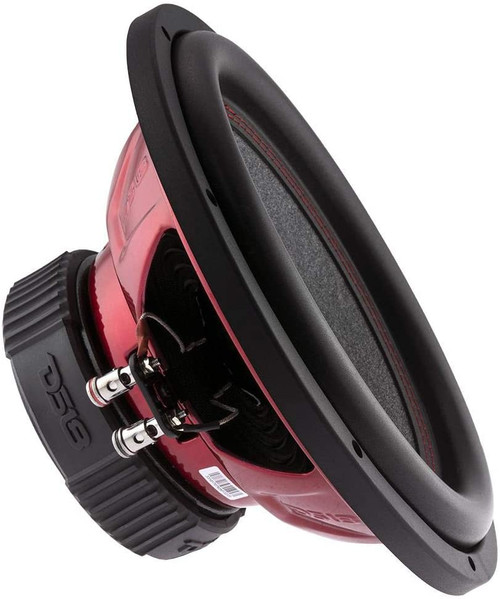

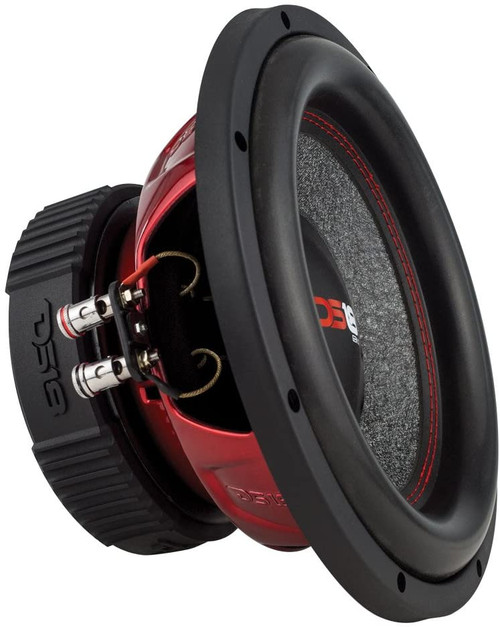

About: DS18 GEN-X124D GEN-X 12" Subwoofer 450W RMS -  Dual 4 Ohm

Designed for car audio enthusiasts who demand nothing but the best, the GEN-X124D provides one of our most powerful, immersive audio experiences. Crafted with meticulous attention to detail, the GEN-X124D features a steel basket frame that provides durability and stability, ensuring it can withstand the rigors of heavy use. The cone, made from a blend of paper and glass fiber, delivers exceptional rigidity and responsiveness, resulting in accurate and distortion-free bass reproduction. The foam edge surround further enhances the overall sound quality, allowing for smooth and controlled cone movement.

One of the key features that sets the GEN-X124D apart from its competition is its high-quality ferrite motor with aluminum voice coils. The dual voice coil configuration on the GEN-X124D dual voice coils offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. This powerful combination ensures exceptional power to DB efficiency and loudness, allowing every beat to be reproduced with clarity and precision.

With an incredible power handling of 450W RMS and a MAX power of 900W, the GEN-X124D is an absolute beast when it comes to delivering deep, resonating bass notes.
With a mounting cut-out of 10.9" and a mounting depth of 5.75", the GEN-X124D can be easily installed in most car audio setups. The 12.44" overall diameter ensures a perfect fit, while the net weight of 6.3kg ensures that it won't add unnecessary bulk to your vehicle. The GEN-X124D’s exceptional power handling, high-quality construction, and precise audio reproduction make it the perfect choice for any car audio enthusiast seeking an immersive bass experience. Experience the thunderous power of the GEN-X124D and let the music take control.

Product Highlights:

• 12" Subwoofer
• MAX Power: 900 Watts
• RMS Power: 450 Watts
• Impedance: 4-Ohm DVC
• Ferrite Magnet

Specifications:

• Nominal Diameter: 12" (304.8 mm)
• Nominal Impedance: 4+4 ohms
• RMS Power Handling: 450 Watts
• Maximum Power Handling: 900 Watts
• Sensitivity (1w/1m): 87.5 db
• Frequency Response: 20 - 250Hz
• Recommended Lo Pass Crossover: 120 Hz
• Sold Individually

Motor:

• Voice Coil Diameter: 2" (50.8 mm)
• Voice Coil Former Material: Black Aluminum
• Winding Material: SV
• Cone Material: Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Steel Basket
• Basket Color/Finish: Glossy Red
• Frame Material: Steel
• Magnet Material: Ferrite
• Magnet Weight: 70 oz

Thiele & Small Paramters:

• Equivalent Volume (Vas): 23.4L / 0.82ft3
• Excursion (one way) (Xmax): 17.8mm
• Free Air Resonance (Fs): 43 Hz
• Mechanical Factor (Qms): 6.305
• Electrical Factor (Qes): 0.748
• Total Factor (Qts): 0.69
• Moving Mass (Mms): 189.648g
• Compliance (Cms): 0.069mm/N
• Bl Factor (Bl): 21.65
• Voice Coil Inductance (Le): 32.18 mH
• Diaphragm Area (Sd): 490.87 cm2
• DC Resistance (Re): 3.2 + 3.2ohms
• Efficiency Bandwidth Product (EBP): 57.4

Measurements:

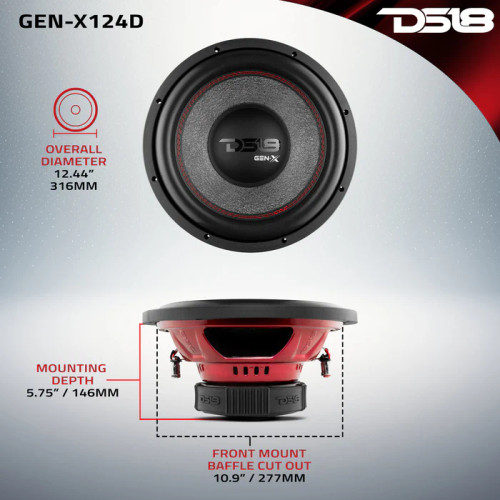

• Overall Diameter: 12.44" (316 mm)
• Overall Depth: 6.41" (163 mm)
• Front Mount Baffle Cutout: 10.9" (277 mm)
• Mounting Depth: 5.75" (146 mm)
• Motor Diameter: 6.54" (166 mm)
• Gross Single Unit Weight: 14.5 lbs
• Single Unit Box Dimensions (W x L x H): 13.25" x 13.25" x 7.5"
