Descriptions

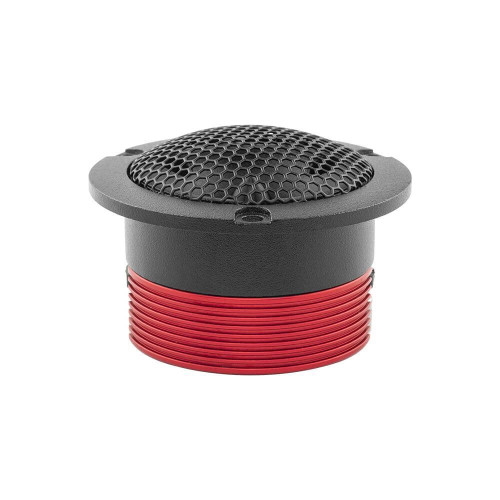

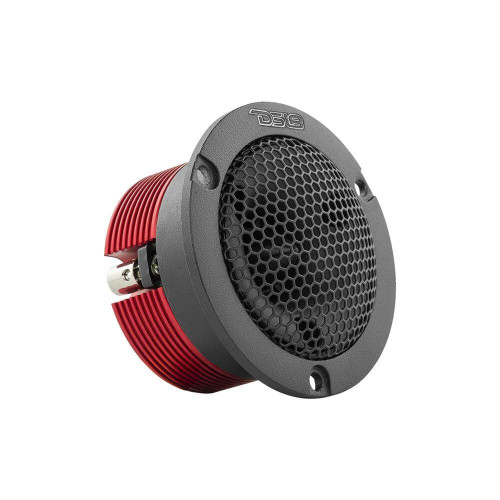

About: DS18 GTX1 3" Die Cast Compression Neodymium Super Bullet Tweeter - 4 Ohm (Each)

Bursting onto the audio scene for high frequency audio reproduction, DS18’s GTX1 is set to revolutionize your car audio experience. Crafted with meticulous precision, these tweeters feature high-end 1-inch Titanium voice coils so every note, every melody, and every beat is brought to life with unparalleled clarity and depth. At the heart of the GTX1 lies a high-strength aluminum housing, solidly cast to withstand the test of time and deliver flawless performance. Labelled with the seal of approval – DS18 is proudly stamped on the GTX1’s front, a symbol of excellence that has garnered the trust and admiration of car audio enthusiasts worldwide.

Don't let the GTX1's compact size deceive you. With a peak power handling of an astonishing 240 watts, a program power handling of 120 watts, and an AES power handling of 60 watts, this super tweeter is a true force to be reckoned with. Its sensitivity rating of 98dB ensures that every whisper, every cymbal crash, and every intricate detail is faithfully reproduced with impeccable precision. The frequency response spans from 3KHz to 20KHz, guaranteeing an expansive range that captures every delicate nuance and dynamic flourish.

Versatility reigns supreme with the GTX1, as it adapts effortlessly to any environment. These super tweeters can be mounted with ease wherever space allows, offering you the freedom to customize your audio setup to your heart's content. Let your imagination run wild as you explore endless placement possibilities, ensuring that your soundstage is optimized to perfection.

Products Highlights:

• 3" Compression Super Bullet Tweeter
• Neodymium Magnet
• 4 - Ohm
• Flush Mount
• Aluminum Body
• With Grill

Specifications:

• Nominal Diameter: 3"
• Nominal Impedance: 4 OHMS
• RMS Power Handing: 120 W
• Maximum Power Handing: 240 W
• Sensitivity (1w/1m): 98 dB
• Frequency Response: 3KHz - 20KHz
• Recommended Hi Pass Crossover: 3 KHz
• Voice Coil Diameter: 1" / 25.4 mm
• Voice Coil Former Material: Kapton
• Winding Material: KSV
• Basket Material: Aluminum

Measurements:

• Overall Diameter: 2.95" (75 mm)
• Front Mount Baffle Cutout: 2.26" (57.3 mm)
• Mounting Depth: 1.46" (37 mm)
• Overall Depth: 1.96" (49.9 mm)
