Descriptions

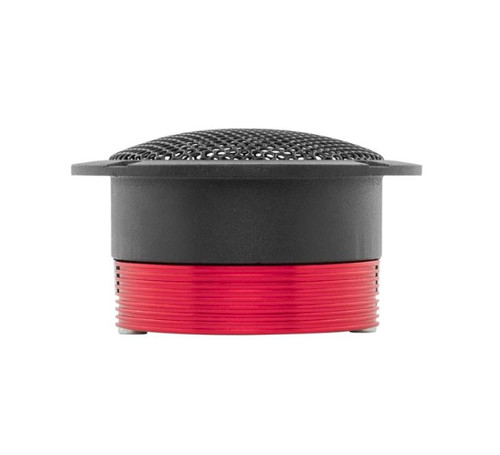

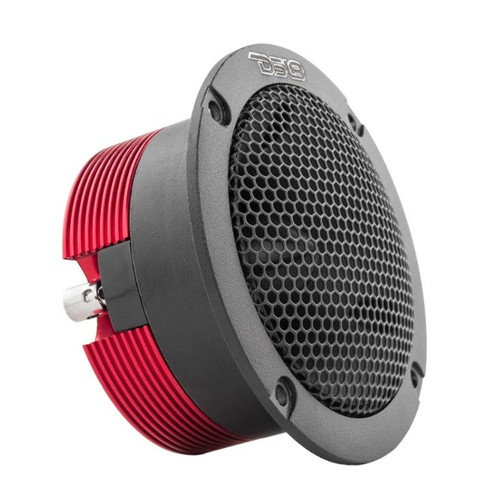

About: DS18 GTX1XL 3.75" Die Cast Compression Neodymium Super Bullet Tweeter - 4 Ohm (Each)

Step into a world of audio perfection with DS18's GTX1XL, the pinnacle of neodymium tweeters. The GTX1XL boasts a massive 3.75-inch die-cast compression neodymium super bullet design. With an astounding MAX power handling of 320W, it's no wonder this tweeter is highly regarded among our competitive audience. With a sensitivity of 100dB and a frequency response ranging from 2.5kHz to 20kHz, the GTX1XL ensures that no detail escapes your ears.

Crafted with precision and finesse, the housing of the GTX1XL is cast from high-strength aluminum, creating a sturdy enclosure that complements your car's interior and protects your investment. The iconic DS18 stamp on the front is the best way to let the world know you like it LOUD! One of the standout features of the GTX1XL is its high precision 1.3-inch aluminum voice coil. This tweeter delivers unmatched performance, ensuring every note is reproduced with stunning clarity and detail.

Versatility is at the heart of the GTX1XL's design. These super tweeters can be mounted anywhere you have space for them, giving you the freedom to experiment and create the perfect soundstage in your vehicle. Install them in the traditional locations or explore unconventional placements, the GTX1XL delivers exceptional performance, effortlessly. DS18 understands that pushing the limits is part of the car audio enthusiast's DNA. That's why we've engineered the GTX1XL to be easily disassembled and repaired on the spot within a mere 60 seconds. You can push these tweeters to their maximum potential without worry, knowing that you have the power to bring them back to life in an instant.

Product Highlights:

• 3.75" Compression Super Bullet Tweeter
• RMS Power: 160 Watts(320 Watts Peak)
• Impedance: 4 Ohm ~ 100dB
• Flush Mount with Grill
• Neodymium Magnet
• Easily Repaired With The GTX1XLVC

Specifications:

• Nominal Diameter: 3.75" (95 mm)
• Nominal Impedance: 4 Ohm
• AES Power Handling: 80 Watts
• Program Power Handling: 160 Watts
• Peak Power Handling: 320 Watts
• Sensitivity (1w/1m): 100 db
• Frequency Response: 2.5K - 20 KHz
• Recommended Hi Pass Crossover: 2.5 KHz
• Pair or Single: Single

Motor:

• Voice Coil Diameter: 1.3" (33.5 mm)
• Voice Coil Former Material: KSV
• Winding Material: CCAW
• Diaphragm Material: Aluminum
• Magnet Material: Neodymium
• Magnet Weight: 1.45 Oz
• Body Material: Aluminum
• Body Color / Finish: Black/Red

Measurements:

• Overall Diameter: 3.75" (95 mm)
• Overall Depth: 2.24" (57 mm)
• Front Mount Baffle Cutout: 2.95" (73 mm)
• Mounting Depth: 1.73” (44 mm)
• Gross Single Unit Weight: 1.5lb
• Single Unit Box Dimensions (W x L x H): 4.75" x 4.25" x 2.87"
