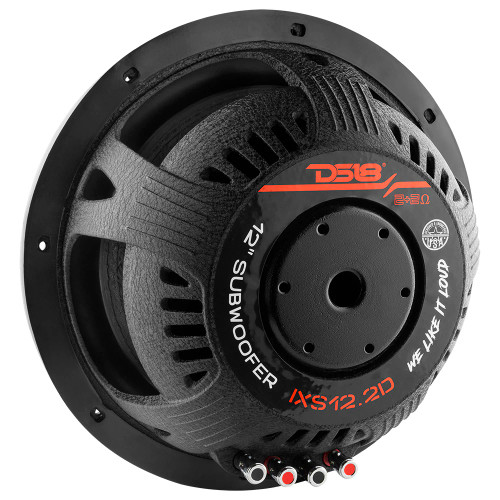

About: DS18 IXS12.2D 12" 800W RMS Shallow Mount Car Subwoofer - Dual 2 Ohm

Engineered with uncompromising precision and cutting-edge technology, the IXS12.2D is specifically designed to revolutionize your car audio experience.
Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. Available in both 10 and 12-inch variants, these subwoofers come with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.
With impressive power handling capabilities rated at 800W RMS and 1600W MAX, the IXS12.2D delivers thunderous bass and dynamic performance. The IXS12.2D covers an extensive frequency range (20 – 600Hz) , capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 85dB the IXS12.2D means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.
The dual voice coil configuration on the IXS12.2D offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. Even with its shallow mount size, this subwoofer fits snug in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 2+2-ohm impedance of the IXS12.2D allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS12.2D’s performance and bass response.
Get ready to feel the bass like never before with the DS18 IXS12.2D—where power meets precision, and excellence becomes the new standard.

Product Highlights:

• 12" Shallow Subwoofer
• MAX Power: 1600 Watts
• RMS Power: 800 Watts
• Impedance: 2-Ohm 2.5" DVC
• Ferrite Magnet
• 85dB

Specifications:

• SKU: IXS12.2D
• Nominal Diameter: 12" / 304.8mm
• Nominal Impedance: 2+2 ohms
• RMS Power Handling: 800W
• Maximum Power Handling: 1600W
• Sensitivity (1w/1m): 85 dB
• Frequency Response: 20 - 600 Hz
• Recommended Lo Pass Crossover: 80 Hz

Motor:

• Voice Coil Diameter: 2.5" / 63.5mm
• Voice Coil Former Material: Aluminum
• Winding Material: Copper
• Cone Material: Paper
• Dust Cap Material: Fiberglass
• Surround Material: Stitched rubber
• Basket Material: Aluminum
• Basket Color/Finish: Corrugated Black
• Magnet Material: Ferrite
• Magnet Weight: 62 Oz
• Displacement Volume: 0.93L / 0.033ft3

Thiele & Small Parameters:

• Equivalent Volume Vas: 38L / 1.34ft3
• Free Air Resonance Fs: 33 Hz
• Mechanical Factor Qms: 4.83
• Electrical Factor Qes: 0.82
• Total Factor Qts: 0.7
• Moving Mass Mms: 261.6 g
• Compliance Cms: 106.15 mm/N
• Bl Factor BI: 14
• Voice Coil Inductance Le: 14.72 mH
• Diaphragm Area Sd: 494.81 cm2
• DC Resistance Re: 1.6+1.6 ohms
• Efficiency Bandwidth Product EBP: 36.5

Recommended Enclosures:

• Sealed Internal Volume (minimum): 28L / 1ft3
• Sealed Box Output Response F3: 40Hz

Measurements:

• Overall Diameter: 12.6" / 320 mm
• Overall Depth: 5" / 129 mm
• Front Mount Baffle Cutout: 10.79" / 274 mm
• Mounting Depth: 4.33" / 110 mm
• Motor Diameter: 6.3" / 160 mm
• Gross Single Unit Weight (lb): 16.5
• Single Unit Box Dimensions W x L x H (Inches): 13.25 x 13.5 x 6.5
• Quantity of Units in Master Carton: 2
• Gross Master Carton Weight (lb): 34
• Master Carton Dimensions W x L x H (Inches): 14 x 14 x 14
