DS18 JL-SB6 Loaded 6.5" Plug & Play Overhead Bar System for Select Jeep Vehicles

DS18

DS18 JL-SB6 Loaded 6.5" Plug & Play Overhead Bar System for Select Jeep Vehicles

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$517.99

$588.99

12% Off

SKU: JL-SB6

UPC: 810097260832

Condition: New

Availability: Sold Out

Shipping: Calculated at Checkout

Out of stock

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

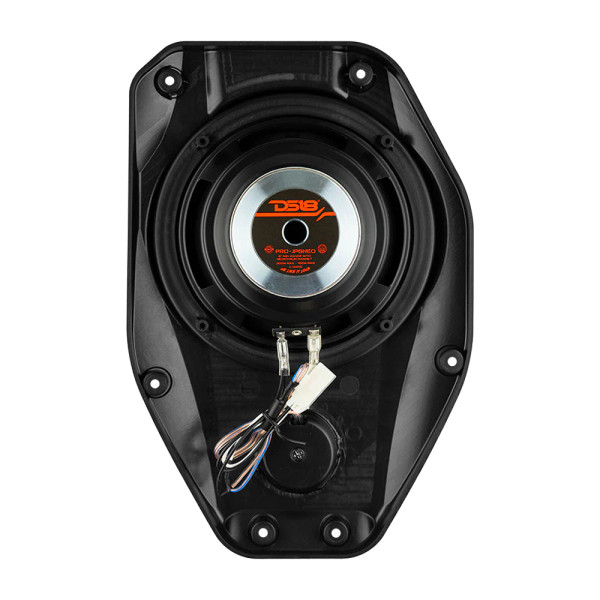

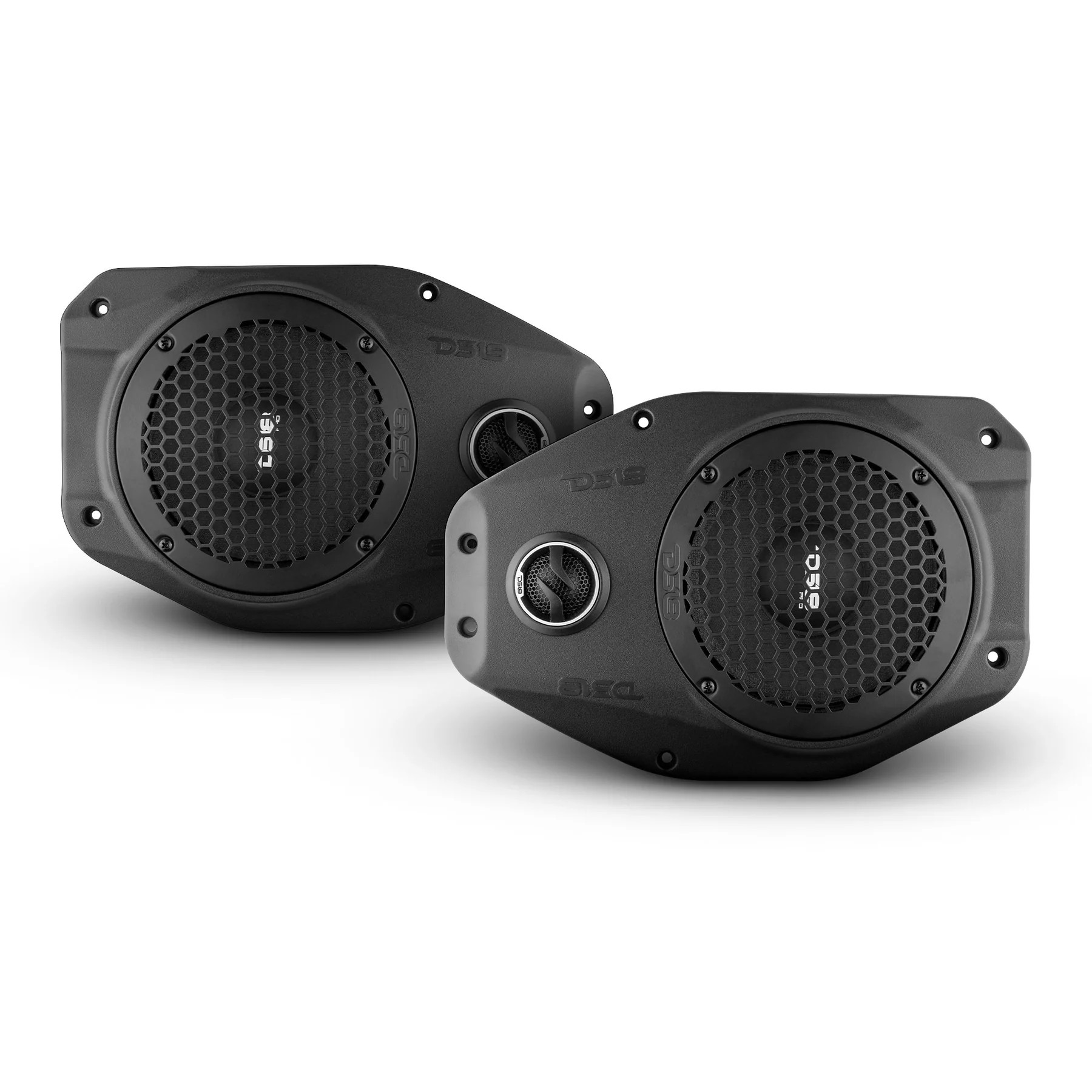

About: DS18 JL-SB6 Loaded 6.5" Plug & Play Overhead Bar System for Select Jeep Vehicles (PRO-JP6NEO and ZXI-T1 Included)

Turn your JL/JLU/JT Jeep Wrangler into an audio beast with DS18’s JL-SB6 soundbar upgrade. Engineered for power, precision, and durability, the JL-SB6 has a powerful 6.5” neodymium midrange speaker and a crisp 1” dome tweeter, for supreme clarity, depth, and volume.

The new grills enhance the rugged look of your Jeep elevating this systems show-quality sound to a whole new level. Coming in a set of two for both the left and right sides, your entire ride gets a matching, badass upgrade.

Crafted from heavy-duty, injection-molded plastic, this soundbar can handle the roughest terrains while cranking out concert-level audio. This system requires cutting of the existing sound bar for installation- but plug-and-play connectors, mounting plates, and cutting templates make installation easy in your Jeep Wrangler JL/JLU and Gladiator JT models. Ready to take it further? Hook up an external amp for bone-rattling sound that will make your off-road adventures feel like an audio thrill ride. Cut. Install. Get LOUD!

Jeep-Ready Performance

Designed for a perfect fit in Wrangler JL/JLU and Gladiator JT models, every kit includes a precision mounting template and hardware to guide your install.

Premium Build for All Conditions

Made from injection-molded ASA composite: the JL-SB6 resists heat, impact, and UV damage, so it can handle anything your Jeep does. The NEW steel grille keeps your speakers protected and adds a clean, aggressive look. Plug-and-play connectors make wiring seamless, and with both left and right side upgrades you get a complete soundbar transformation.

Cutting Required

Cutting of the stock soundbar is required. We include everything—cutting templates, grille mounting plates, screws, and plug-and-play harnesses—to make the install as clean and easy as possible.

Product Highlights:

Loaded 6.5" Overhead Bar System
1 X 6.5" PRO-JP6NEO
1 X 1.7" ZXI-T1
RMS Power: 150 Watts
Impedance: 4-Ohm
Sold as a Pair

Features:

150W RMS / 300W MAX power handling
High-efficiency neodymium magnets
Plug & play harnesses for fast installation
Injection-molded ASA composite enclosure
Steel protective grille with satin black finish
Custom fit for Jeep Wrangler JL / JLU and Gladiator JT
Includes mounting plates, cutting templates, and all hardware

Specifications:

Component Set: 2-Way
Nominal Speaker Diameter: 6.5" (165 mm)
Nominal Tweeter Diameter: 1.7" (43 mm)
Nominal Impedance: 4 Ohm
RMS Power Handling: 150 watts
MAX Power Handling: 300 watts
Total Sensitivity (1w/1m): 97 dB
Total Frequency Response: 60Hz-20KHz

Woofer Specifications:

Nominal Impedance: 4 Ohm
Total Sensitivity (1w/1m): 96 dB
Frequency Response: 60Hz-10KHz
Voice Coil Diameter: 1.5" (38 mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Neodymium
Magnet Weight: 3 Oz

Woofer Thiele & Small Parameters:

Equivalent Volume (Vas): 4.46L / 0.157ft3
Excursion (one way) (Xmax): 1.5mm
Free Air Resonance (Fs): 138 Hz
Mechanical Factor (Qms): 4.249
Electrical Factor (Qes): 0.977
Total Factor (Qts): 0.794
Mechanical Mass (Mms): 7.166g
Mechanical Compliance (Cms): 148.927 u/M/N
BL Factor (Bl): 4.767
Voice Coil Inductance (Le): 0.08696mH
Cone Area (Sd): 145 cm2
DC Resistance (Re): 3.2 ohm
Mechanical Mass w/o air (Mmd): 6.159g

Tweeter Specifications:

Nominal Impedance: 4 Ohm
Sensitivity (1w/1m): 92dB
Frequency Response: 1KHz - 20KHz
HI Pass Crossover: 3.5Khz
Body Color / Material: Black / ABS
Voice Coil Diameter: 1" (25.4 mm)
Voice Coil Former Material: Aluminum
Winding Material: SV
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 13g

Body/Features:

Wiring / Connections: Plug & Play to factory Speaker Connector
Enclosure Material: Injection Molded ASA composite
Grill Material: Steel
Sold as Pair: Yes (Left and Right Set)
Color / Finish: Black / Satin

Measurements:

Overall Wide: 8.26" (210 mm)
Overall Length: 12.36" (314 mm)
Overall Depth: 3.27" (83 mm)
