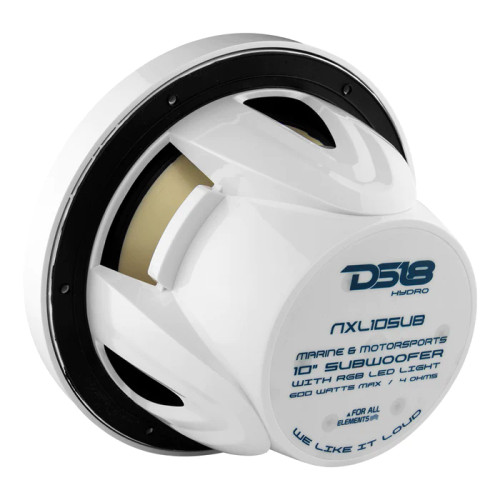

About: DS18 NXL-10SUB/WH NXL 10" Marine Subwoofer With LED RGB Lights 300W RMS - SVC 4 Ohm (White)

Experience the ultimate in powerful and immersive sound with DS18’s NXL-10SUB/WH! Specially designed for marine and outdoor applications, the NXL-10SUB/WH is built to withstand any weather condition while delivering mind-blowing bass. With its IP65 waterproof frame, this 10-inch subwoofer is guaranteed to bring the BOOM to your marine audio system. Whether you're on a boat, off-roading, or simply enjoying the great outdoors, this subwoofer will provide exceptional performance that stands up to the elements.

Not only does the NXL-10SUB/WH offer impressive durability, but it also features built-in RGB lights that add a stunning touch to your application's color scheme. Connect it to any RGB 4-wire circuit and create a mesmerizing ambiance that sets you apart from the rest. For optimal control and customization, we recommend using DS18’s LED-BTC (sold separately).

Equipped with a single 4-ohm voice coil and a highly durable 2-inch voice coil former, the NXL-10SUB/WH can handle 300W RMS and 600W MAX power. Its powerful ferrite magnet and UV compliant cone materials ensure sustained and hard-hitting bass that will leave you in awe. Designed for sealed and ported boxes, DS18’s NXL-10SUB/WH is engineered to deliver the best results. Its UV-compliant, marine-grade construction guarantees stability even in harsh environments. Enhance your audio experience with DS18’s NXL-10SUB/WH to feel the music like never before.

Product Highlights:

• 10" Marine Subwoofer
• RMS Power: 300 Watts
• Impedance: 4 Ohm
• RGB LED Lights
• Ferrite Magnet
• Water Resistant IP65

Specifications:

• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 4 ohm
• RMS Power Handing: 300W
• Maximum Power Handing: 600W
• Sensitivity (1w/1m): 89dB
• Frequency Response: 35-250Hz
• Voice Coil Diameter: 2" / 50.8mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Basket Material: High Temp Injection Molded Composite with UV Protection coating
• Magnet Weight: 72 oz

Thiele & Small Parameters:

• Vas: 26.7L / 0.94ft3
• Xmax: 13mm
• Fs: 45Hz
• Qms: 8.919
• Qes: 0.805
• Qts: 0.457
• Re: 3.65

Measurements:

• Overall Diameter: 10.76" / 273.3mm
• Front Mount Baffle Cutout: 8.78" / 223mm
• Mounting Depth: 5" / 127.5mm
• Overall Depth: 6.73" / 171mm
• Product Weight: 14 lbs
• Product Dimensions: 13.25" x 13.25" x 8.75"
