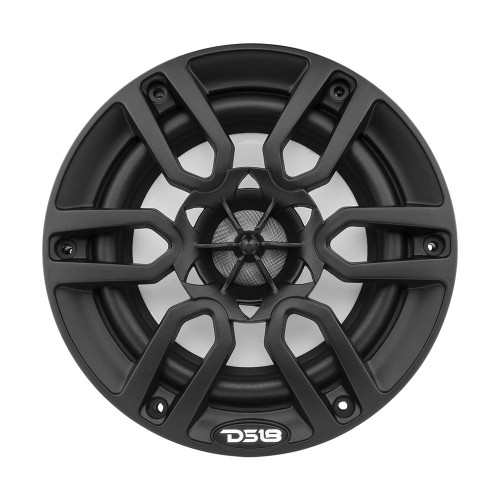

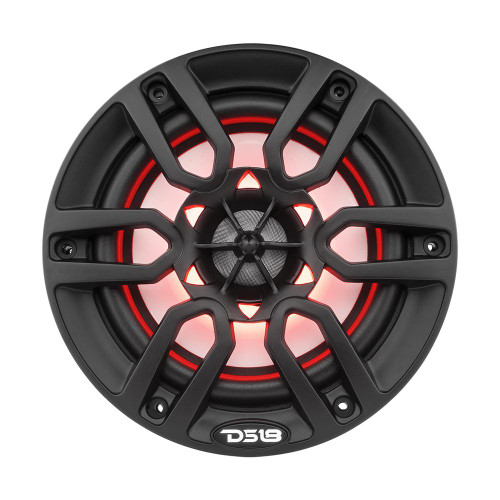

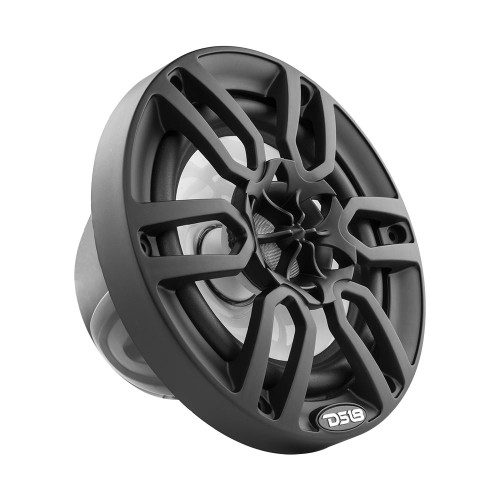

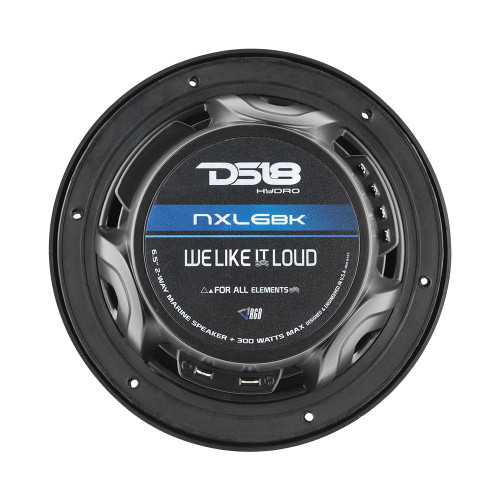

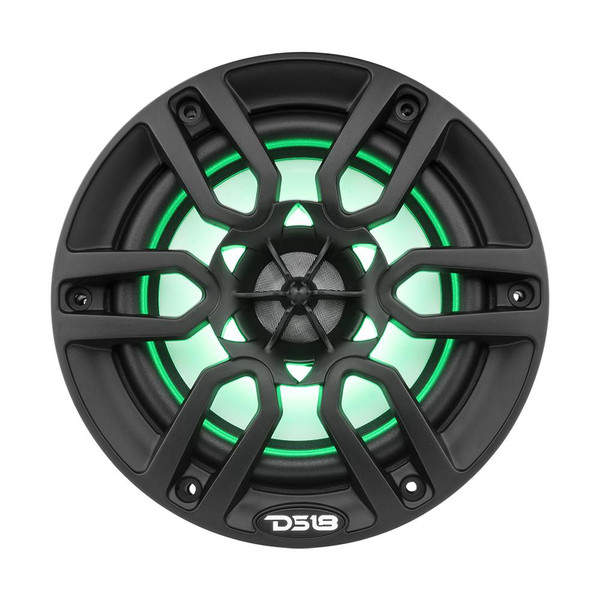

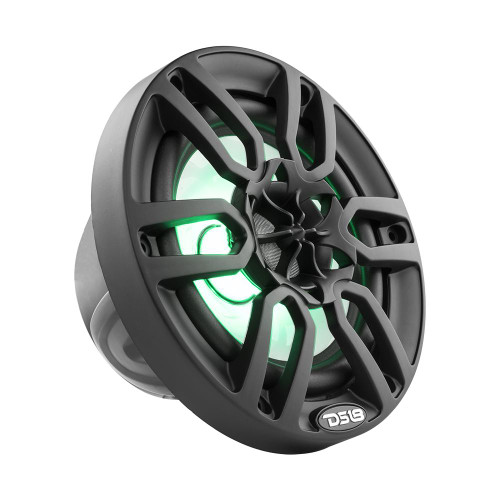

About: DS18 NXL-6/BK 6.5" 100W RMS 2-Way Coaxial Marine Speaker With LED RGB Lights - Black

DS18’s NXL-6/BK are not only designed to deliver breathtaking sound quality but also to withstand the harshest marine and off-road conditions. DS18’s NXL-6/BK boasts a sleek and rugged design that not only catches the eye but also performs like a champion. Crafted for durability and performance, these speakers feature IP65 Marine Grade Compliant Specifications, making them resistant to the corrosive effects of saltwater, UV rays, and extreme temperatures. The high temp injection-molded composite construction guarantees resilience against the most demanding conditions, while the ASA grills with UV coating ensure long-lasting aesthetics.

The NXL-6/BK can handle an impressive 100W of RMS power, giving you the volume and clarity you crave. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you'll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-6’s sensitivity of 91dB at 1 w/m, will leave you astounded by the level of detail and precision in every note. These models of DS18’s HYDRO NXL-6/BK speakers immerse you in a world of vivid color with the integrated RGB LED lighting. DS18 has left no detail overlooked, allowing you to customize your audio system to match your mood or style. With the optional DS18 LED-BTC or any other RF/BT/Wi-Fi Controller (sold separately), you have full control over the multi-function RGB LED lighting, daring you to create a show stopping system.

Product Highlights:

• 6.5" 2-Way Marine Speaker
• RMS Power: 100 Watts
• Impedance: 4 Ohm
• Ferrite & Neodymium Magnet
• RGB LED Light
• Water Resistant IP65

Features:

• UV Compliant: Yes, 100% Stable
• Marine Grade Type: IP65
• RGB LED: Yes, RGB integrated
• Grill Type: Injection Molded Composite ASA with UV Protection coating
• Color / Finish: Matte Black
• Sold as a Pair

Specifications:

• Nominal Diameter: 6.5" / 165mm
• Nominal Impedance: 4 Ohm
• RMS Power Handling: 100W
• MAX Power Handling: 300W
• Sensitivity (1w/1m): 91dB
• Frequency Response: 45Hz-23KHz
• Recommended HI Pass Crossover: 65 Hz

Woofer Specifications:

• Voice Coil Diameter: 1.2" / 30.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Injection Molded Polypropylene + UV Compliant
• Surround Material: Butyl (Rubber)
• Basket Material: High Temp Injection Molded Composite with UV Protection coating
• Magnet Material: Ferrite+Neodymium
• Magnet Weight: 14oz + 0.32oz

Tweeter Specifications:

• Nominal Diameter: 1" / 25.4mm
• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium + PEI Surround
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 0.54oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 20L / 0.708ft3
• Excursion (one way) (Xmax): 8.5 mm
• Free Air Resonance (Fs): 75Hz
• Mechanical Factor (Qms): 7.823
• Electrical Factor (Qes): 1.057
• Total Factor (Qts): 0.931
• Moving Mass (Mms): 4.122g
• Compliance (Cms): 1.081mm/N
• Bl Factor (Bl): 2.41
• Voice Coil Inductance (Le): 0.543mH
• Cone Area (Sd): 114.99cm2
• DC Resistance (Re): 3.14 ohms
• Efficiency Bandwidth Product (EBP): 70.9

Measurements:

• Overall Diameter: 6.94" / 176mm
• Overall Depth: 3.72" / 94.4mm
• Front Mount Baffle Cutout: 5.31" / 135mm
• Mounting Depth: 2.5" / 63.5mm
• Motor Diameter: 3.54" / 90mm
• Gross Single Unit Weight: 7lbs
