Descriptions

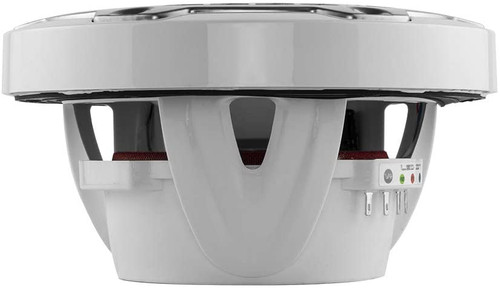

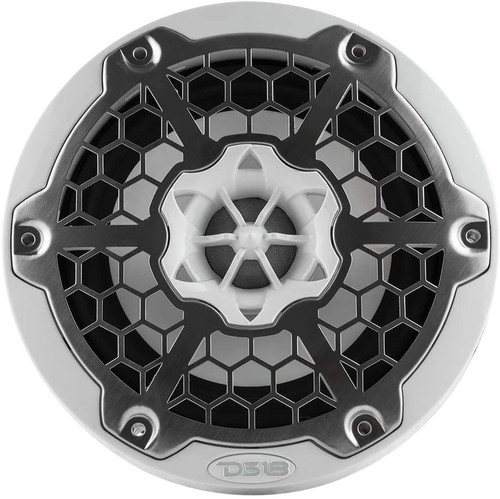

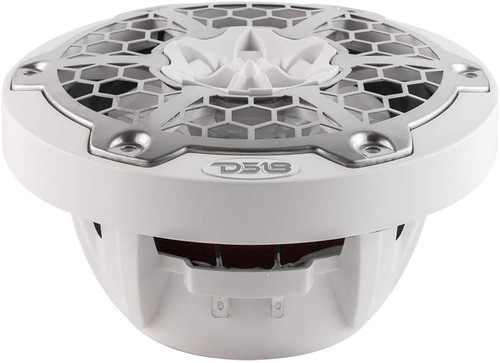

About: DS18 NXL-6M/WH NXL 6.5" 100W RMS 2-Way Coaxial Marine Speaker With LED RGB Lights - White

DS18’s HYDRO NXL-6M/WH will blow you away with the unmatched innovation of DS18’s Marine Speakers. Engineered with precision, these speakers have a robust IP65 waterproof rating, ensuring they can withstand even the most extreme elements. Available in both white and black, they seamlessly blend with any vehicle's accents for a polished look. DS18 takes pride in their exclusive mesh grill design, providing optimal protection without compromising on style. DS18’s NXL-6M’s are UV stable and constructed with high-temp injection molded composite materials, ensuring long-lasting durability.

Experience exceptional sound quality like never before. DS18’s NXL-6M speakers deliver a rich and full-bodied audio experience that is unparalleled in open-air environments. Equipped with an integrated tweeter and mid-range woofer, these speakers offer an impressive range of frequencies from 45Hz to 23KHz for a truly immersive sound. But what truly sets these speakers apart is their integrated RGB lighting. Illuminating the waterproof cones, this feature allows you to customize your sound system and create a captivating ambiance. With the optional LED BTC (sold separately), you have complete control over the colors that light up your nights. Choose DS18’s HYDRO NXL-6M/WH and enjoy the perfect fusion of high-performance sound and unbeatable design!

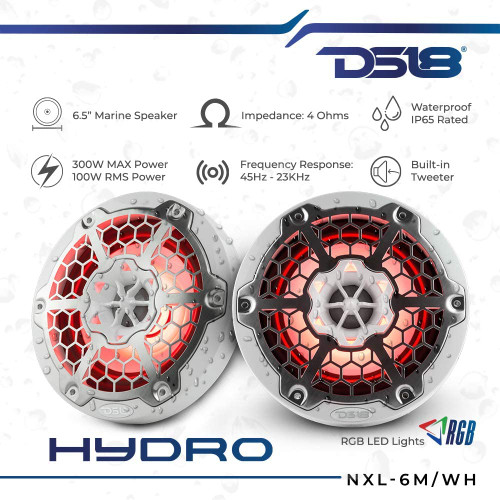

Product Highlights:

• 6.5" 2-Way Marine Speaker
• RMS Power: 100 Watts
• Impedance: 4 Ohm
• Ferrite & Neodymium Magnets

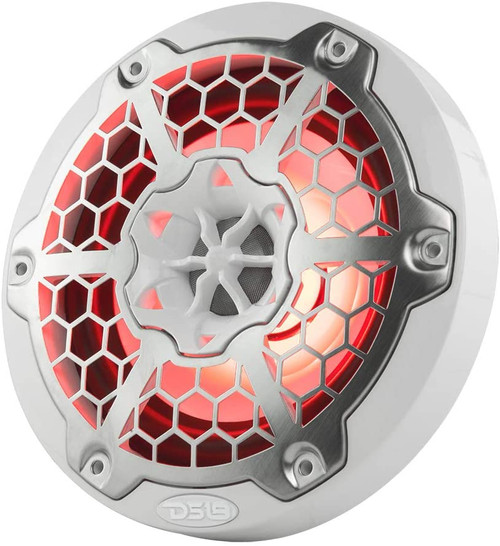

• RGB LED Light
• Water Resistant IP65

Specifications:

• Nominal Diameter: 6.5" (165 mm)
• Nominal Impedance: 4 Ohm
• RMS Power Handling: 100W
• MAX Power Handling: 300W
• Sensitivity (1w/1m): 91dB
• Frequency Response: 45Hz-23KHz
• Recommended HI Pass Crossover: 65 Hz

Body / Features:

• UV Compliant: Yes, 100% Stable
• Marine Grade Type: IP65
• RGB LED: Yes, RGB integrated
• Grill Type: Injection Molded Composite ASA with 316 Stainless Steel mesh
• Pair: Yes
• Color / Finish: Glossy White

Woofer Specifications:

• Voice Coil Diameter: 1.2" (30.5 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Injection Molded Polypropylene + UV Compliant
• Surround Material: Butyl (Rubber)
• Basket Material: High Temp Injection Molded Composite ASA with UV Protection coating
• Magnet Material: Ferrite+Neodymium
• Magnet Weight: 14oz + 0.32oz

Tweeter Specifications:

• Nominal Diameter: 1" (25.4 mm)
• Voice Coil Diameter: 1" (25.4 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium + PEI Surround
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 0.54oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 20L / 0.708ft3
• Excursion (one way) Xmax: 8.5 mm
• Free Air Resonance (Fs): 75Hz
• Mechanical Factor (Qms): 7.823
• Electrical Factor (Qes): 1.057
• Total Factor (Qts): 0.931
• Moving Mass (Mms): 4.122g
• Compliance (Cms): 1.081mm/N
• Bl Factor (Bl): 2.41
• Voice Coil Inductance (Le): 0.543mH
• Cone Area (Sd): 114.99cm2
• DC Resistance (Re): 3.14 ohms
• Efficiency Bandwidth Product (EBP): 70.9

Measurements:

• Overall Diameter: 6.94" (176 mm)
• Overall Depth: 3.72" (94.4 mm)
• Front Mount Baffle Cutout: 5.31" (135 mm)
• Mounting Depth: 2.5" (63.5 mm)
• Motor Diameter: 3.54" (90 mm)
• Gross Single Unit Weight: 7.5 lb
• Single Unit Box Dimensions (W x L x H): 16.75" x 8.75" x 4.5"
