DS18

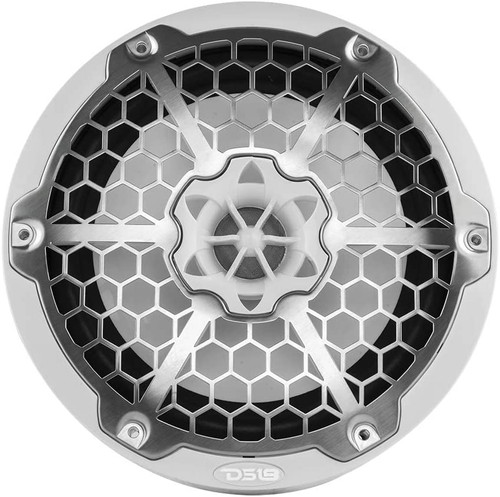

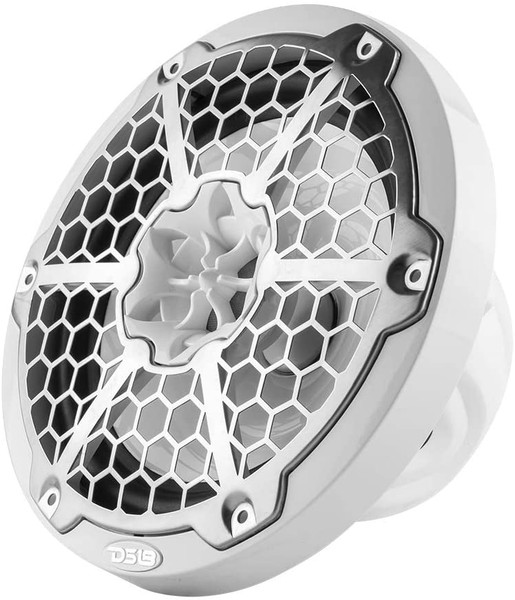

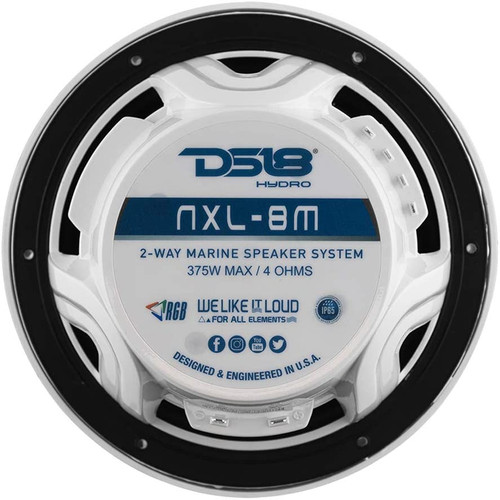

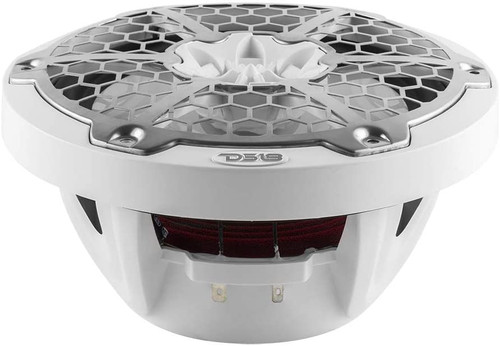

DS18 NXL-8M/WH NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125W RMS - White

MSRP: $310.99
$290.99
(You save $20.00 )
SKU:
NXL-8M/WH
UPC:
810005184625
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 NXL-8M/WH NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125W RMS - White

MSRP: $310.99
$290.99
(You save $20.00 )

About: DS18 NXL-8M/WH NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125W RMS - White

DS18’s HYDRO NXL-8M elevates your marine audio experience to new heights! DS18’s HYDRO NXL-8M boasts an integrated tweeter and mid-range woofer, delivering frequencies from 35Hz – 23KHz with exceptional clarity. Handling 125W of RMS Power and 375W MAX this speaker is bound to get LOUD in any open air environment. Available in both white and black, they seamlessly blend with any vehicle's accents for a polished look.

The rugged yet sleek design of DS18’s NXL-8M ensures trouble-free performance and exceptional sound quality. Engineered to withstand all elements, these speakers are built for durability and reliability. Waterproof (IP65) and designed to withstand extreme conditions, they are the perfect addition to your marine adventures and motorsports.

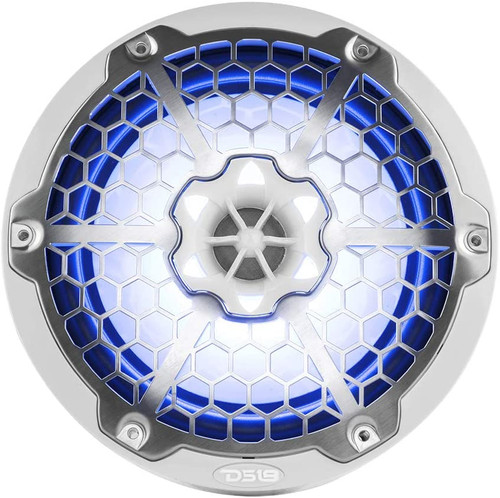

Designed with your protection in mind, the exclusive mesh grill design provides optimal safeguarding for the speaker components without compromising sound quality. You can count on the DS18 HYDRO NXL-8M to withstand the harshest conditions and keep playing. These 8-inch speakers also feature integrated RGB LED Lighting, allowing you to customize the ambiance of your audio system. Brighten up your nights with vibrant colors that match your mood or surroundings using our LED-BTC or any other RF/BT/Wifi Controller (sold separately). Experience the ultimate in marine audio with the DS18’s NXL-8M.

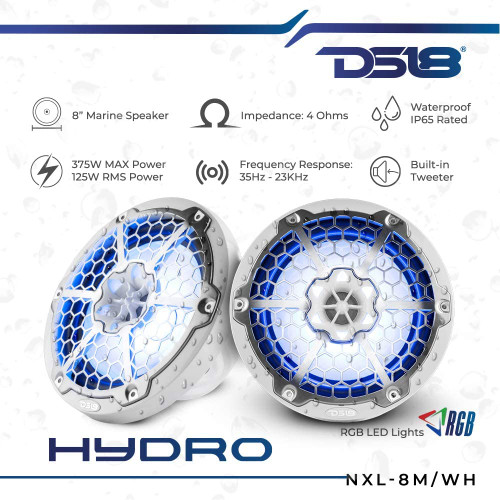

Product Highlights:

  • 8" 2-Way Marine Speaker
  • RMS Power: 125 Watts
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • RGB LED Light
  • Water Resistant IP65

Specifications:

  • Nominal Diameter: 8" (203 mm)
  • Nominal Impedance: 4 Ohm
  • RMS Power Handling: 125W
  • MAX Power Handling: 375W
  • Sensitivity (1w/1m): 93dB
  • Frequency Response: 35Hz-23KHz
  • Recommended HI Pass Crossover: 50 Hz

Body / Features:

  • UV Compliant: Yes, 100% Stable
  • Marine Grade Type: IP65
  • RGB LED: Yes, RGB integrated
  • Grill Type: Injection Molded Composite ASA with 316 Stainless Steel mesh
  • Pair: Yes
  • Color / Finish: Glossy White

Woofer Specifications:

  • Voice Coil Diameter: 1.2" (30.5 mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Injection Molded Polypropylene + UV Compliant
  • Surround Material: Butyl (Rubber)
  • Basket Material: High Temp Injection Molded Composite ASA with UV Protection coating
  • Magnet Material: Ferrite+Neodymium
  • Magnet Weight: 24oz + 0.32oz

Tweeter Specifications:

  • Nominal Diameter: 1" (25.4 mm)
  • Voice Coil Diameter: 1" (25.4 mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Titanium + PEI Surround
  • Magnet Material: Neodymium (N38H)
  • Magnet Weight: 0.54oz

Thiele & Small Parameters:

  • Equivalent Volume (Vas): 66.7L / 2.35ft3
  • Excursion (one way) (Xmax): 8.5 mm
  • Free Air Resonance (Fs): 56Hz
  • Mechanical Factor (Qms): 7.701
  • Electrical Factor (Qes): 0.899
  • Total Factor (Qts): 0.805
  • Moving Mass (Mms): 7.265g
  • Compliance (Cms): 1.119mm/N
  • Bl Factor (Bl): 2.98
  • Voice Coil Inductance (Le): 0.49mH
  • Cone Area (Sd): 206.12cm2
  • DC Resistance (Re): 3.15 ohms
  • Efficiency Bandwidth Product (EBP): 62.2

Measurements:

  • Overall Diameter: 8.59" (218.2 mm)
  • Overall Depth: 4.45" (113 mm)
  • Front Mount Baffle Cutout: 6.97" (177 mm)
  • Mounting Depth: 3.09" (78.5 mm)
  • Motor Diameter: 4.32" (110 mm)
  • Gross Single Unit Weight: 10.5 lbs
  • Single Unit Box Dimensions (W x L x H): 20" x 10.5" x 5.5"
