DS18

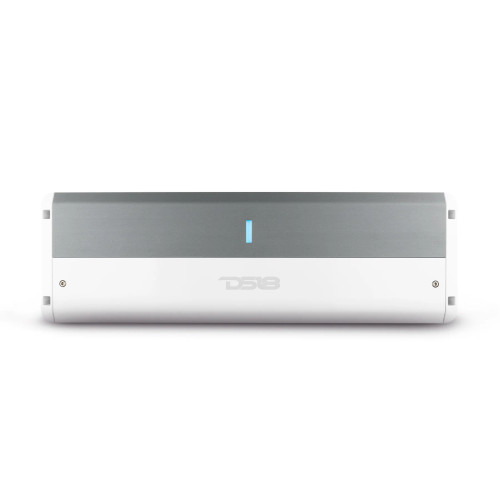

DS18 NXL-M5 5-Channel Full-Range Class D IPX5 Marine Amplifier

$724.99
$623.99
SKU:
NXL-M5
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 NXL-M5 5-Channel Full-Range Class D IPX5 Marine Amplifier

$724.99
$623.99

About: DS18 NXL-M5 5-Channel Full-Range Class D IPX5 Marine Amplifier

Introducing DS18’s NXL-M5, a full-range marine amplifier that combines cutting edge technology, unmatched durability, and mind-blowing sound quality. Utilizing an impressive MAX power of 3600W, the NXL-M5 delivers unrivaled performance that will make your system soar. With its RMS power output of 4 x 150W and a whopping 600W for SUB’s, the NXL-M5 guarantees consistent audio performance that is guaranteed to satisfy even the most discerning audiophile. The DS18 NXL-M5 covers the full range of frequencies ensuring that every beat, note, and whisper is reproduced with unrivaled precision.

Crafted with a focus on longevity, the NXL-M5 is built to withstand the harshest marine environments. Made from hardware resistant to corrosion and UV rays, the NXL-M5 is guaranteed to stand the test of time, even under the most challenging circumstances. The coated 4-layer PCB provides an additional layer of protection against corrosion, guaranteeing the NXL-M5's reliability for years to come.

Your peace of mind is our top priority. The NXL-M5 features a stable and reliable Class D circuit design, accompanied by built-in protections against short circuits, thermal issues, and voltage fluctuations. This ensures that your amplifier remains safe and continues displaying extraordinary performance, no matter the circumstances. Its front cover shields the controls from the elements, ensuring that you can fine-tune your audio settings without worry. While the LED clip indicator provides visual feedback, enabling you to make precise adjustments effortlessly.

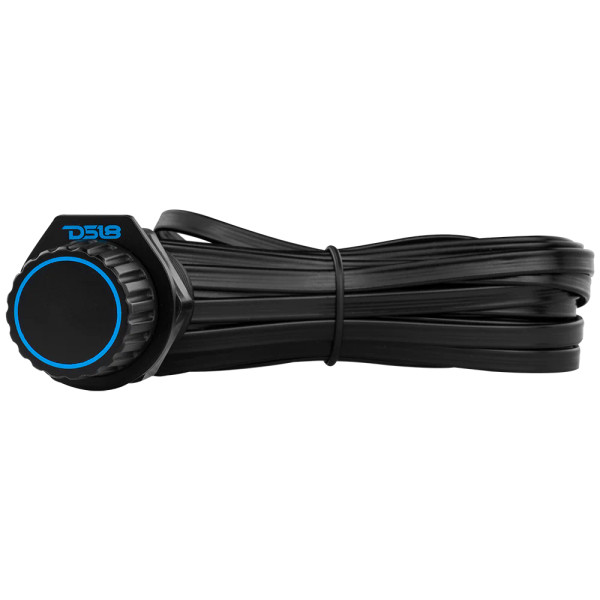

Take full command of your audio experience with the waterproof remote level bass knob specially designed for easy installation on your boat's panel or wet areas. Seamlessly adjust the bass output without compromising your enjoyment or exposing the amplifier to potential damage. DS18 understands the importance of convenience and versatility in your marine adventures. At DS18, we pride ourselves on our commitment to excellence. The NXL-M5 undergoes rigorous Audio Precision Quality Control Verification and sound quality verification using AP instruments. This meticulous testing guarantees that every unit meets our uncompromising standards and provides you with an unparalleled listening experience.

Product Highlights:

  • Marine Full Range
  • 5 Channel
  • 4 x 150 Watts @ 4 Ohm + 1 x 600 Watts @ 2 Ohm
  • Built In Crossover
  • Class D
  • Water Resistant

Specifications:

  • Total Watts (Peak): 3600W
  • RMS Power @ 4 ohm: 4 x 150W / SUB: 300W
  • RMS Power @ 2 ohm: 4 x 230W / SUB: 600W
  • RMS Power @ 4 ohm Bridge: 2 x 440W
  • Frequency Response: 20Hz - 20KHz
  • Signal to Noise Ratio 1W @ 4Ω: >90dB
  • Efficiency @ 4 ohm: >97%
  • Channel Separation: >55dB
  • Total Harmonic Distortion (THD): <0.15%
  • Low Level Input Range: 0.2V-6V
  • High Level Input: Yes: >5V
  • Selectable X-Over: HPF/LPF/FULL
  • X-Over Filter Range: 40Hz - 2KHz / SW: 32Hz - 320Hz
  • Bass Boost Range: 0-12dB (SW)
  • Bass Boost Frequency: 45Hz +- 5Hz
  • Phase Selector: Yes 0~180 (SW)

 Features:

  • Amplifier Class: Digital (D)
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 5 Channels
  • Minimum Impedance: 2ohm St / 4ohm Bridge / 2ohm SW
  • Led Indicator: Clipping / Protect / Power
  • Power Input Terminal Size: 4 Ga
  • Fuse Size: 120A (3x40A)
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes
  • Body Color | Finish: Gray+White / Aluminum+ABS
  • DC Output Protection: Yes
  • Clipping Protection: Yes
  • Water Resistant Rated: Yes, IPX5 (Water Splashing)
  • PCB Layout Design: 4 Layers / Coated
  • RCA Output: No
  • UV Compliant: Yes, UV Protected and PCB Coated
  • Input Sum Selector: Yes, 2/4/5 Ch Input Mode
  • Tiffany Style RCA: Yes
  • High Level Input: Yes, 4ch Speaker level
  • Stainless Steel Hardware: Yes, (Screws)
  • Potenciometers: High Quality Metal Knob
  • Remote Level Control: No

 Measurement:

  • Overall Length: 14.3" (365 mm)
  • Overall Wide: 4.5" (116 mm)
  • Overall Height: 1.7" (43 mm)
  • Heatsink Length: 13.3" (340 mm)
  • Gross Single Unit Weight: 2.24kg
