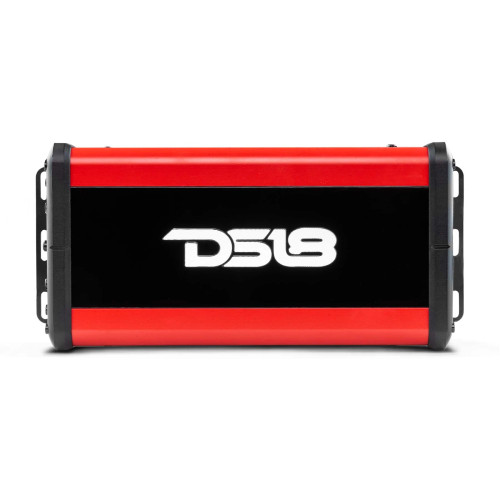

DS18 NXL-N4 Nano Full-Range Digital Marine 4-Channel Amplifier - 100W RMS x 4

DS18

DS18 NXL-N4 Nano Full-Range Digital Marine 4-Channel Amplifier - 100W RMS x 4

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$297.99

$412.99

28% Off

SKU: NXL-N4

UPC: 810005180603

Condition: New

Availability: Usually Ships In 1-2 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: DS18 NXL-N4 Nano Full-Range Digital Marine 4-Channel Amplifier - 100W RMS x 4

DS18’s NXL-N4 is the ultimate power solution for audio enthusiasts on the move. Whether you're hitting the open road on your bike, tearing through rough trails on your side by side, or cruising the open waters, this waterproof rated amp delivers exceptional performance in a compact package. DS18's NXL-N4 is designed to power your entire system with efficiency and precision. With a 4-channel configuration these amplifiers provide versatility for all your speaker setups. Thanks to the full range capability of this amplifier, you can run them on subs, mids, or tweeters.

Built with a stable and reliable 4-layer PCB layout design, the NXL-N4 ensure consistent performance even in challenging conditions. Rated IP67 for powersports applications, they are fully waterproof and ready to withstand the harshest environments. Plus, their ultra-compact size makes installation a breeze, fitting seamlessly into any setup.
The selectable X-Over feature allows you to customize your audio experience with options like LPF (Low Pass Filter), FULL range, and HPF (High Pass Filter), giving you full control over your sound.

Featuring a max power of 1800W and a frequency response of 20Hz - 20KHz, this amplifier delivers rich and immersive sound across all frequencies. With 4 x 150W of RMS power at 2 Ohms and 4 x 100W of RMS power at 4 Ohms, you can enjoy crystal-clear audio with plenty of volume.
Experience the DS18 difference with DS18’s NXL-N4 Full-Range 4-Channel Marine Amplifier.

Product Highlight:

Marine Full Range
4 Channel
4 X 100 Watts @ 4 Ohm
Class D
Micro
Water Resistant IP67

Specifications:

Total Watts (Peak): 1800
RMS Power @ 4 ohm: 4x100W
RMS Power @ 2 ohm: 4x150W
RMS Power @ 4 ohm Bridge: 2x300W
Frequency Response: 20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω: 90dB
Total Harmonic Distortion (THD): 0.1%
Low Level Input Range: 200mV-5V

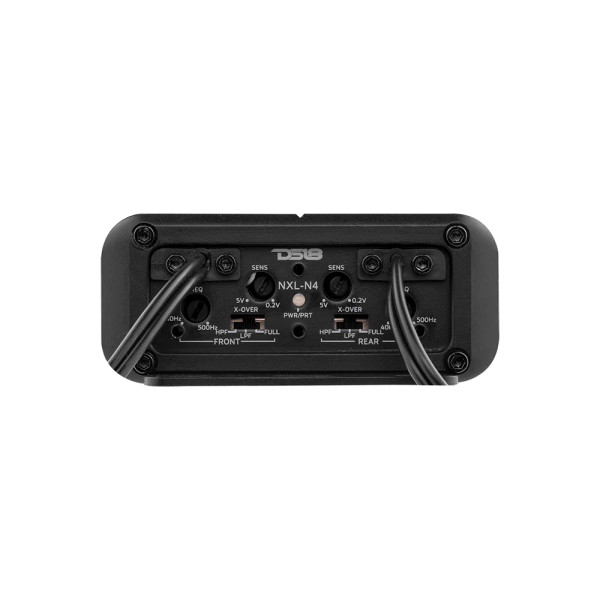

Selectable X-Over: HPF/LPF/FULL
X-Over Filter Range: 40-500Hz
Bass Boost Range: No
Infrasonic Filter: No

Features:

Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2ohm (Stereo) / 4ohm (Bridge)
LED Indicator: Power / Protection
Power Input Size: Wired 10Ga OFC
Fuse Size: 25A
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (>15V)
Body Color: Aluminum Black and Red
Waterproof Rating: IPX67
Latest Full Range Digital Design Based on IR Platform: Yes
Ultra Compact Design for Easy Installation: Yes
PCB Design with Stable and Reliable 4-Layer Layout: Yes
Quality Control Verification Using AP Instruments: Yes

Measurements:

Overall Length: 7.87" (200 mm)
Overall Wide: 3.67" (93.4 mm)
Overall Height: 1.56" (39.8 mm)
Heatsink Length: 7.16" (182 mm)
Gross Single Unit Weight: 2.8Lb (1.3Kg)
Product Weight: 3 lbs
Product Dimensions (L x W x H): 7.87" x 3.67" x 1.56" (200 x 93.4 x 39.8 mm)
