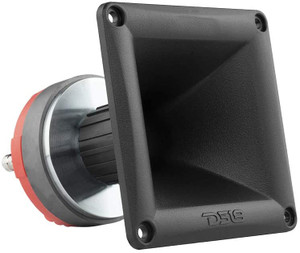

About: DS18 PRO-DRNSC1.5DK 1.5" 160W RMS Neodymium Driver And Horn Kit - 8-Ohm

1” Neodymium Driver With 1.5” Composite Polyimide 8-Ohm VC With Horn

With unmatched power handling capabilities, DS18’s PRO-DRNSC1.5DK guarantees unparalleled performance.
Inspired by our passion for music, the PRO-DRNSC1.5DK was developed to provide car audio enthusiasts with high-quality sound that is unmatched in the industry. Our team of engineers and designers overcame numerous obstacles to create a product that delivers impressive sound with striking clarity and limitless depth.
The PRO-DRNSC1.5DK is equipped with a highly durable 1.5” voice coil, so these drivers perform at their maximum potential throughout any jam session. The drop-in voice coils make for fast and easy repairs in the rare occasion that they are overpowered. Unlike traditional ferrite magnets, the neodymium magnets used in the PRO-DRNSC1.5DK ensure the highest efficiency and power handling without the bulk. The 109dB sensitivity makes it easy to climb to MAX volume.
The PRO-DRNSC1.5DK is made to fit most standard thread-on horn throats, ensuring functionality in spaces that most drivers can't fit. The non-removable horn throat makes for a quick and easy installation,
The 80W AES Power Handling, 160W Program Power Handling, and 320W Peak Power Handling ensures long-lasting performance from your equipment.
The PRO-DRNSC1.5DK is made to last, and we stand behind its quality. Our product has been tested for durability and longevity, ensuring that it will perform at its maximum potential for years to come.
Don't settle for mediocre sound in your system. Upgrade to DS18’s PRO-DRNSC1.5DK and experience the power of unparalleled performance and impressive sound quality.

Product Highlights:

• 1" Compression Driver with Horn
• RMS Power: 160 Watts(320 Watts Peak)
• Impedance: 8 Ohm
• Neodymium Magnet
• Composite Polyimide Diaphragm
• 111dB

Specifications:

• SKU: PRO-DRNSC1.5DK
• Nominal Impedance: 8 OHM
• AES Power Handling: 80 Watts
• Program Power Handling: 160 Wats
• Peak Power Handling: 320 Watts
• Sensitivity (1w/1m): 111 dB
• Frequency Response: 1K - 20KHz
• Recommended Hi Pass Crossover: 2 KHz
• Pair or Single: Single

Motor:

• Voice Coil Diameter: 1.5" / 38 mm
• Voice Coil Former Material: Kapton
• Winding Material: Aluminum
• Diaphragm Material: Polyimide
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 2.4 Oz
• Body Color | Finish: Silver | Raw
• Body Material: Aluminum

Horn Specifications:

• Nominal Diameter: 3.15" / 180 mm
• Throat Diameter: 1" / 25.4 mm
• Sound Coverage: 60° (Round)
• Body Material: Aluminum
• Color | Finish: Silver | Raw

Measurements:

• Overall Diameter: 3.15" / 80 mm
• Overall Depth: 2.42" / 61.5 mm
• Mounting Depth: 2.22" / 56.5 mm
• Mounting Hole Diameter: 2.75" / 70 mm
• Bolt Pattern (Horn): 2.13" / 54mm
• Product Weight: 1.2 lbs
• Product Dimensions: 3.25 x 3.25 x 3.5

M/C Dimensions:

• M/C Weight: 30 lbs
• M/C Dimensions: 14 x 10.5 x 7.5
