DS18

DS18 PRO-EXL84 8" 400W RMS Midrange Speaker - 4 Ohm

$170.99
$151.99
SKU:
PRO-EXL84
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 PRO-EXL84 8" 400W RMS Midrange Speaker - 4 Ohm

$170.99
$151.99

About: DS18 PRO-EXL84 8" 400W RMS Midrange Speaker - 4 Ohm (Each)

Experience car audio like never before with DS18’s PRO-EXL84! The EXL series was designed for the audiophile who demands EXTREMELY LOUD sound reproduction with no distortion. Built with the latest in DS18 technology and constructed with only the best materials, this leading midrange series reproduces cleaner and LOUDER midrange, mid-bass, and vocal frequencies than any other loudspeaker in its class.

The PRO-EXL84 features an oversized tooled basket with brilliant red and brushed aluminum logos, making it the perfect addition to any custom car audio setup that likes it LOUD. With an RMS of 400W and a MAX of 800W, this midrange loudspeaker can handle even the most demanding audio setups. The PRO-EXL84 is constructed with large push-style connections that allow for easy wiring and maximum power flow from your amplifier. This means you can enjoy the full power of your system without any degradation in quality. The frequency response of 100Hz-10KHz ensures that you'll hear every detail of your music, while the 97dB sensitivity ensures that you can turn the volume all the way up!

DS18’s PRO-EXL84 is available in a 4-ohm configuration, which allows greater power output from your amplifier, improved efficiency, and higher compatibility between a wider range of amplifier types. In addition to the 4-ohm configuration, the PRO-EXL 8" Mid-Range Loudspeaker is also available in an 8-ohm configuration. So why settle for less when you can have the best? Upgrade your car audio system today with the DS18 PRO-EXL84 for the ultimate in sound quality and performance!

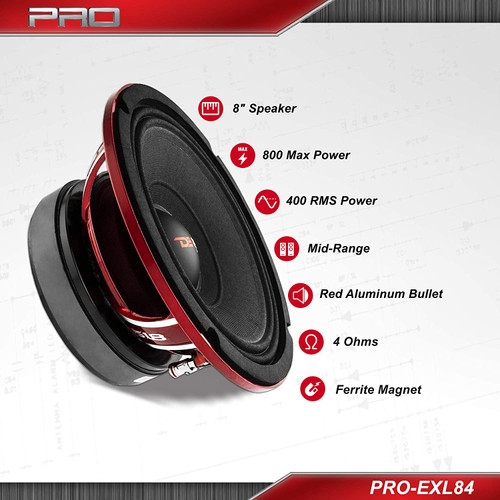

Product Highlights:

  • 8" Mid-Range
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • 97dB

Specifications:

  • Nominal Diameter: 8"
  • Nominal Impedance: 4 ohms
  • RMS Power Handing: 400W
  • Maximum Power Handing: 800W
  • Sensitivity (1w/1m): 97dB
  • Frequency Response: 100Hz-10KHz
  • Recommended Hi Pass Crossover: 130 Hz
  • Voice Coil Diameter: 2" (50.8 mm)
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Basket Material: Aluminum
  • Magnet Weight: 49oz
  • Sold Individually

Thiele & Small Parameters:

  • Equivalent Volume (Vas): 7.77L
  • Excursion (one way) (Xmax): 9.2 mm
  • Free Air Resonance (Fs): 100.8 Hz
  • Mechanical Factor (Qms): 4.887
  • Electrical Factor (Qes): 0.461
  • Total Factor (Qts): 0.461
  • DC Resistance (Re): 3.2 ohms

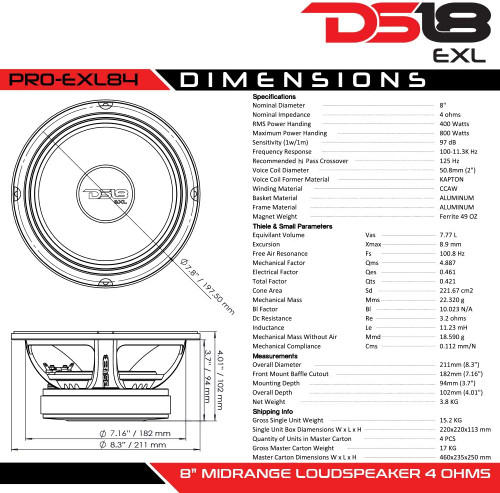

Measurements:

  • Overall Diameter: 8.34" (212 mm)
  • Front Mount Baffle Cutout: 7.16" (182 mm)
  • Mounting Depth: 3.66" (93 mm)
  • Overall Depth: 4" (103 mm)
  • Product Weight: 4 lbs
  • Product Dimensions: 8.75" x 8.75" x 4.25"
