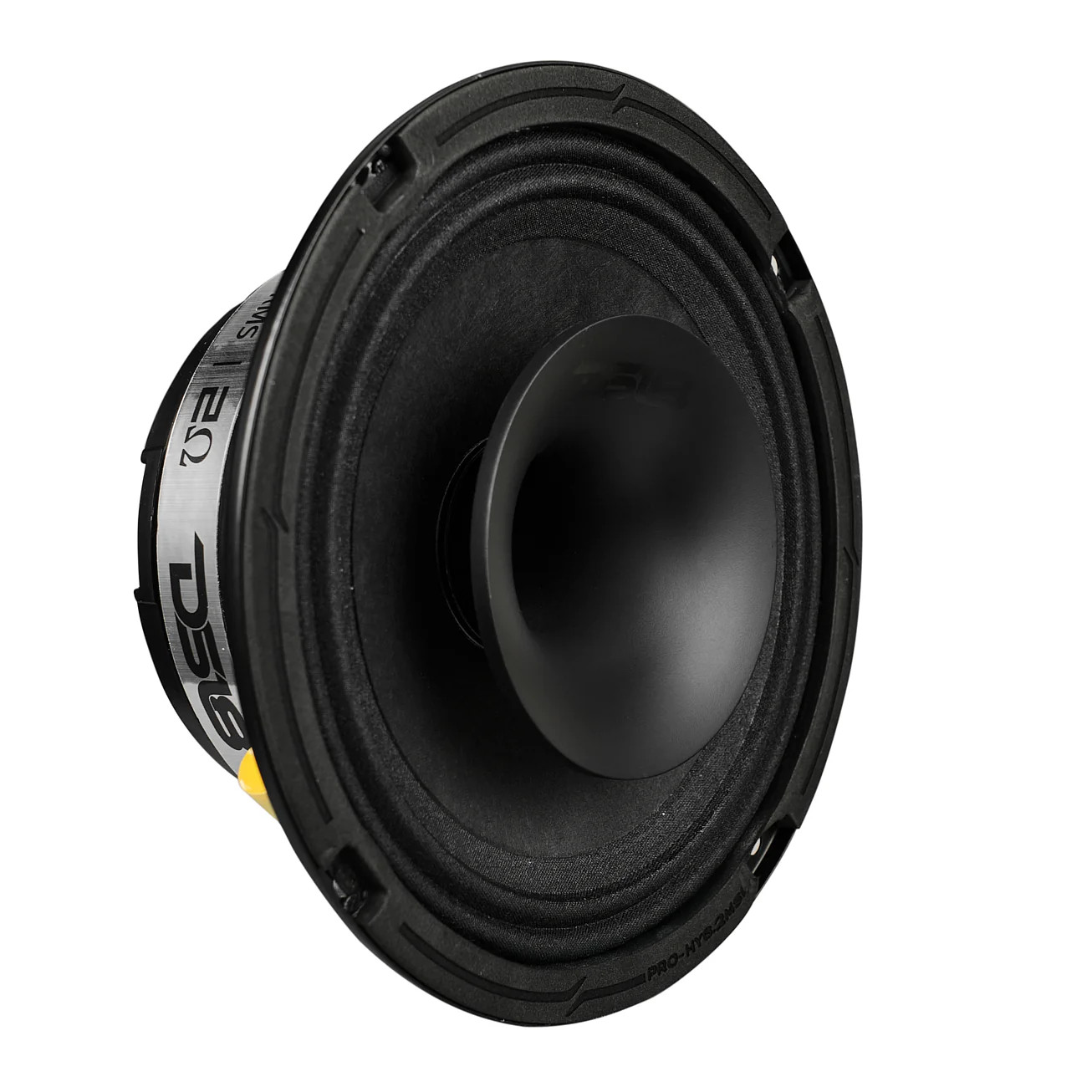

About: DS18 PRO-HY6.2MSL 6.5" 150W RMS Slim Hybrid Mid Range Loudspeaker with 1" Compression Driver Horn - 2 Ohm (Each)

DS18’s PRO-HY6.2MSL is made for tight builds that need BIG sound. With a hybrid design that pushes full-range clarity in a slim profile, this 2-ohm loudspeaker is the perfect solution for motorcycles, UTVs, Slingshots, Jeeps, and other powersports vehicles.

Hybrid Power

This compact beast combines a 6.5” midrange woofer with a built-in 1” compression driver horn—giving you the full range of frequencies in one clean unit. It hits 150W RMS / 300W MAX, with 97dB sensitivity and a wide 120Hz–20KHz response, delivering loud, accurate audio where it matters most.

Built to Ride

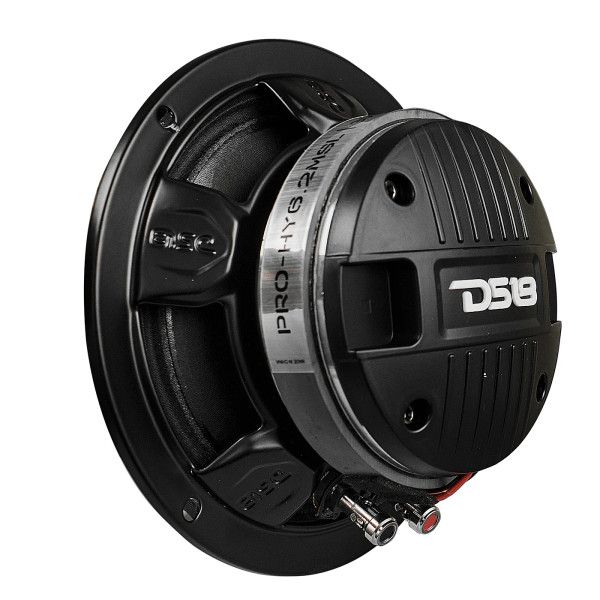

The PRO-HY6.2MSL features a paper cone, cloth surround, and a black steel basket backed by a 19.5oz ferrite magnet. The compression driver brings the heat with a titanium diaphragm, Kapton voice coil, and neodymium magnet.

Fits Tight

At just 2.82” mounting depth and a slim 6.55” total diameter, the PRO-HY6.2MSL mounts just about anywhere your setup needs some punch. Offering a clean fit and getting louder than anything else in its class.

Product Highlights:

• 6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
• RMS Power: 150 Watts(300 Watts Peak)
• Impedance: 2 Ohm ~ 97dB
• Ferrite & Neodymium Magnets

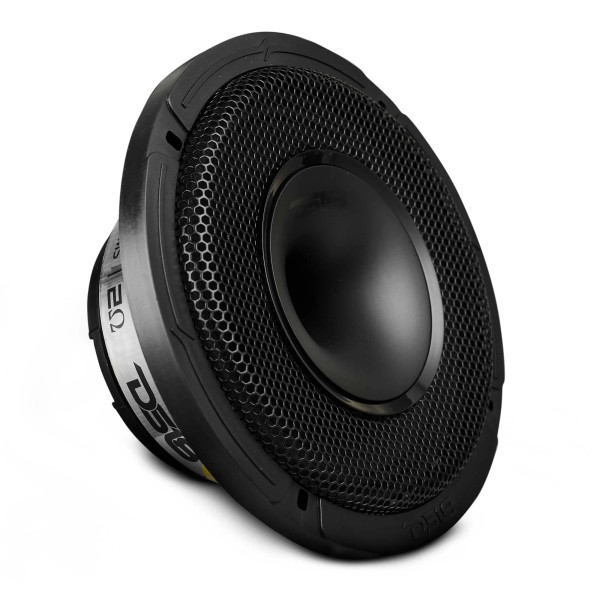

• With Grill
• Easily Repaired With The PRO-HY/VC

Specifications:

• SKU: PRO-HY6.2MSL
• Nominal Diameter: 6.5" (165.1 mm)
• Nominal Impedance: 2 Ohms
• RMS Power Handling: 150W
• MAX Power Handling: 300W
• Sensitivity (1w/1m): 97dB
• Frequency Response: 120Hz-20Khz
• Recommended HI Pass Crossover: 140Hz
• Number of Ways: 2 ways
• Pair or Single: Single
• Grill Included: Yes

Woofer Specifications:

• Voice Coil Diameter: 1.5" (38.6 mm)
• Voice Coil Former Material: KSV
• Winding Material: CCAW
• Cone Material: Paper
• Surround Material: Cloth
• Basket Material: Steel
• Basket Color/Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 19.5 Oz

Thiele & Small Parameters

• Equivalent Volume (Vas): 7L / 0.248ft3
• Excursion (one way) (Xmax): 1.5mm
• Free Air Resonance (Fs): 163Hz
• Mechanical Factor (Qms): 7.488
• Electrical Factor (Qes): 1.102
• Total Factor (Qts): 0.96
• Mechanical Mass (Mms): 2.87g
• Mechanical Compliance (Cms): 0.333mm/N
• BL Factor (BL): 2.287
• Voice Coil Inductance (Le): 0.07041mH
• Cone Area (Sd): 136.8 Cm2
• DC Resistance (Re): 1.9 ohm
• Mechanical Mass w/o air (Mmd): 20.7g

Driver Specifications:

• Voice Coil Diameter: 1" (25.4 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Horn Diameter: 3.15" (80 mm)

Measurements:

• Overall Diameter (Without Grill): 6.55" (167 mm)
• Overall Diameter (With Grill): 6.93" (176 mm)
• Overall Depth (Without Grill): 3.26" (83 mm)
• Overall Depth (With Grill): 3.45" (88 mm)
• Front Mount Baffle Cutout: 5.65" (144 mm)
• Mounting Depth: 2.82" (72 mm)
• Motor Diameter: 4.31" (110 mm)
