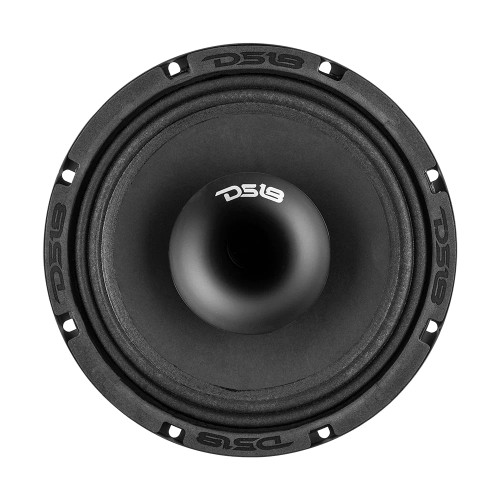

About: DS18 PRO-HY8MSL 8" Shallow Hybrid Mid-Range Loudspeaker w/ Built-in Driver 200W RMS - 8 Ohm (Each)

Your pursuit of perfect sound ends with the introduction of the PRO-HY8MSL! We've taken our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design. With 400 watts of maximum power handling and 200 watts RMS power handling, the PRO-HY8MSL boast astonishing loudness with remarkable clarity at even the highest volumes. Immerse yourself in a world of rich musical response, thanks to the frequency response range of 100Hz to 20KHz. The PRO-HY8MSL’s excel in reproducing crystal-clear audio with astonishing depth and precision. And with a nominal impedance of 8 ohms and sensitivity of 94dB, you'll experience every nuance and detail of your favorite tracks like never before. With its sleek dimensions of 8.62 inches in width and a mounting depth of 3.11 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications.

One of the standout features of this speaker is its titanium diaphragmed driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. Prepare to be blown away by the power, clarity, and precision of the PRO-HY8MSL.

Product Highlights:

• 8" Shallow Hybrid Coaxial Mid-Range w/Driver
• RMS Power: 200 Watts(400 Watts Peak)
• Impedance: 8 Ohm
• Ferrite & Neodymium Magnets
• With Grill
• 94dB

Features:

• 8" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
• RMS Power Handling: 200W
• MAX Power Handling: 400W
• Frequency Response: 100Hz- 20KHz
• Voice Coil Diameter: 1.5"
• Voice Coil Material: CCAW
• Impedance: 8-Ohms
• Sensitivity: 94dB
• Magnet Weight: 29.5 Oz
• Magnet Material: Ferrite
• Mounting Depth: 3.11"
• Recommended High Pass: 120Hz

Specifications:

• Nominal Diameter: 8" (203.2 mm)
• Nominal Impedance: 8 Ohms
• RMS Power Handling: 200 Watts
• Peak Power Handling: 400 Watts
• Sensitivity: 94dB
• Frequency Response: 100Hz - 20KHz
• Recommended Hi Pass Crossover: 120 Hz
• Grill Included: Yes
• Sold Individually

Midrange Specifications:

• Voice Coil Diameter: 1.5” (38.6 mm)
• Voice Coil Former Material: KSV
• Winding Material: CCAW
• Cone Material: Paper
• Surround Material: Cloth
• Basket Material: Steel

• Basket Color/Finish: Glossy Red
• Magnet Material: Ferrite
• Magnet Weight: 29.5 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 7.85L
• Excursion (Xmax): 2 mm
• Free Air Resonance (Fs): 114 Hz
• Mechanical Factor (Qms): 6.282
• Electrical Factor (Qes): 0.984
• Total Factor (Qts): 0.851
• Mechanical Mass (Mms): 16.357 g
• Mechanical Compliance (Cms): 118.033 mm/N
• BL Factor (BL): 8.817
• Voice Coil Inductance (Le): 12.06 mH
• Cone Area (Sd): 216.424 Cm2
• DC Resistance (Re): 6.5 ohms
• Mechanical Mass w/o Air (Mmd): 14.527 g

Driver Specifications:

• Voice Coil Diameter: 1” (25.4 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Horn Diameter: 3" (76.2 mm)

Measurements:

• Overall Diameter: 8.62" (219 mm)
• Overall Depth: 4" (102.5 mm)
• Front Mount Baffle Cutout: 7.12" (181 mm)
• Mounting Depth: . 3.11" (79 mm)
• Motor Diameter: 5.27" (134 mm)
