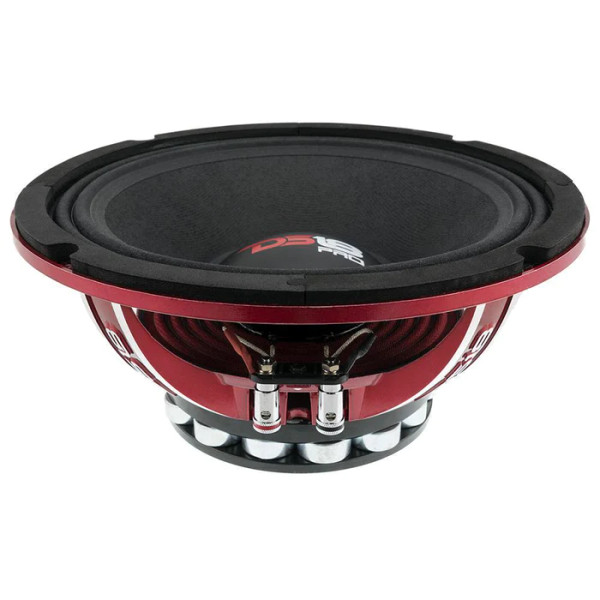

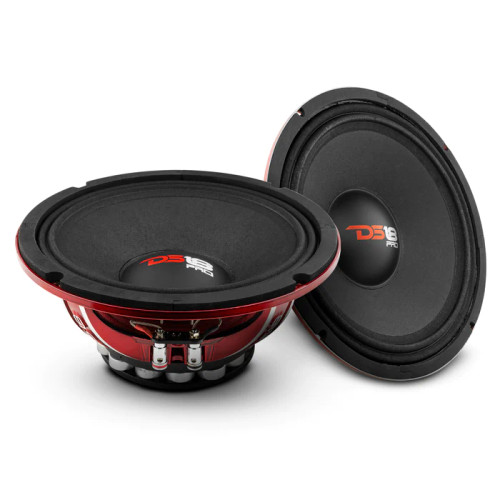

About: DS18 PRO-NEO10R PRO 10" Neodymium Mid-Bass Loudspeaker 500W RMS - 4 Ohm
DS18 has poured years of experience into the design and manufacture of the PRO-NEO10R - the ultimate solution for audiophiles who demand nothing but the best in sound quality and performance. The PRO-NEO10R is a 10" midrange loudspeaker with a whopping RMS power of 500W and a max power of 1000W. Its frequency response ranges from 60Hz to 11KHz, making it perfect for reproducing vocals, guitars, and other midrange sounds with clarity and precision.
Built to last, the PRO-NEO10R features a cloth edge surround, heavy-duty aluminum basket frame, and neodymium ring magnets. Ring magnets provide a stronger and more uniform magnetic field than traditional bar magnets although they are thinner and lighter, which means that they can produce more consistent and accurate sound across a wider frequency range. This results in a more detailed, natural, and dynamic sound reproduction free from distortion and noise.
At the heart of the PRO-NEO10R lies a high-powered aluminum voice coil backed by a neodymium ring magnet, delivering more volume at the highest efficiency on the market. The neodymium magnet provides a higher magnetic flux density in the air gap, generating much greater action force in the voice coil, and making it the strongest permanent magnet available in commercially available speakers.
The PRO-NEO10R's beautiful design includes a DS18 tooled aluminum brushed accented basket and high-quality terminals, making it a powerhouse in sound and a statement piece in your audio setup. The speaker also features a silver bullet tweeter that widens the higher range of the PRO-NEO10R, bringing you a fuller range of frequencies to blast. Whether you're a professional sound engineer, a car audio enthusiast, or simply someone who loves great sound quality, the DS18 PRO-NEO10R is the perfect choice for you.
Product Highlights:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- Aluminum Basket
Specifications:
- Nominal Diameter: 10"
- Nominal Impedance: 4 ohms
- RMS Power Handing: 500W
- Maximum Power Handing: 1000W
- Sensitivity (1w/1m): 98 dB
- Frequency Response: 60Hz - 11KHz
- Recommended Hi Pass Crossover: 120 Hz
- Voice Coil Diameter: 2.5" /65.5 mm
- Voice Coil Former Material: Ti
- Winding Material: CCAW
- Basket Material: Aluminum
Thiele & Small Parameters:
- Vas: 12.5 L
- Xmax: 12 mm
- Fs: 102 Hz
- Qms: 1.158
- Qes: 0.316
- Qts: 0.248
- Re: 3.2 ohms
Measurements:
- Overall Diameter: 10.3" / 261mm
- Front Mount Baffle Cutout: 9" / 229mm
- Mounting Depth: 4.3" / 109
- Overall Depth: 4.8" / 121.4mm
- Product Weight: 8.5 lbs
- Product Dimensions: 10.875" x 10.875" x 5.25"
